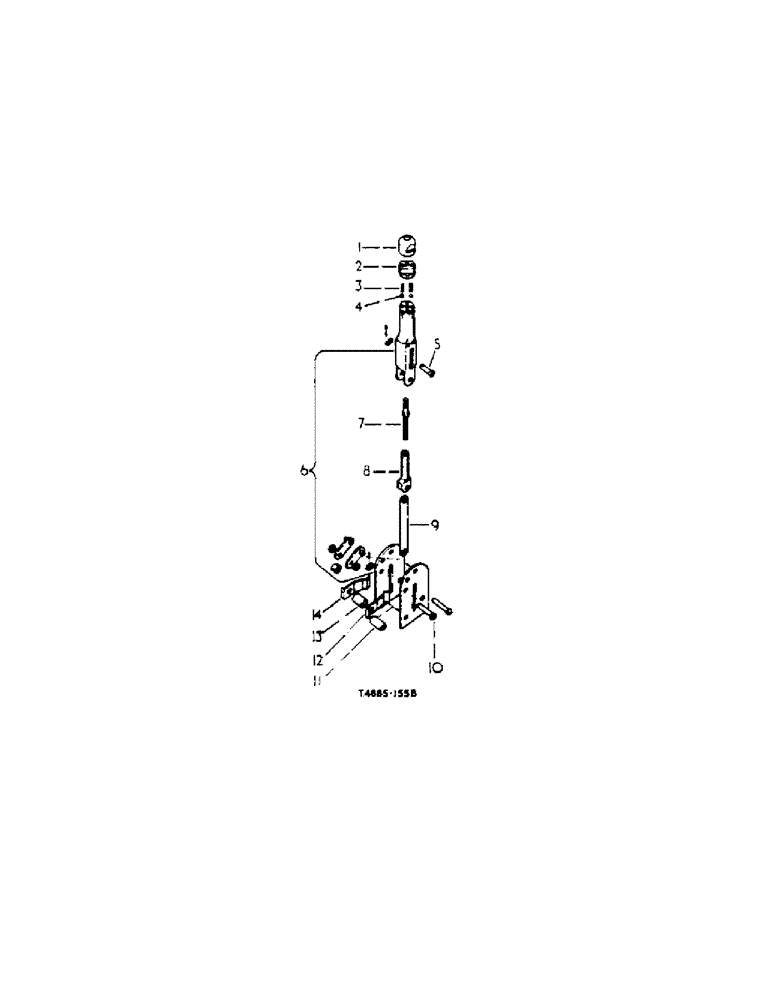

Запчасти Case IH 434 (4-29) - HANDBRAKE - CHASSIS (07) - BRAKES

3045931R93

LEVER

HANDBRAKE, assy., comprising: Ref. 1 - 14

1шт.

1

3045968R1

KNOB

outer half

1шт.

2

3045965R1

KNOB

inner half

1шт.

3

3045967R1

SPRING

2шт.

4

3045966R1

BALL

2шт.

5

3111364R1

PIN

short

1шт.

3045975R1

PIN

split

1шт.

3045971R1

WASHER

1шт.

5

3045970R1

AXLE PIN

PIN, short used w/LEVER 3045931R92

1шт.

On orders for PIN 3045970R1 or CIRCLIP 3045972R1 furnish PIN 3111364R1 and PIN 3045975R1

1шт.

3045972R1

CIRCLIP

used w/LEVER 3045931R92

1шт.

On orders for PIN 3045970R1 or CIRCLIP 3045972R1 furnish PIN 3111364R1 and PIN 3045975R1

1шт.

3045971R1

WASHER

used w/LEVER 3045931R92

1шт.

On orders for PIN 3045970R1 or CIRCLIP 3045972R1 furnish PIN 3111364R1 and PIN 3045975R1

1шт.

6

3045964R91

LEVER, assy., tube, w/SCREW 3069414R1 and TUBE and CLEVIS 895161H1

1шт.

7

895161H1

CLEVIS

TUBE and CLEVIS, assy., adjustable

1шт.

8

3069414R1

SCREW

adjusting

1шт.

9

3045969R1

LINK

1шт.

10

3045973R1

PIN

long

1шт.

3045975R1

PIN

split

1шт.

3045971R1

WASHER

1шт.

11

3045976R1

SPACER

434D/18148 up, including 434P/2177 up

2шт.

11

3045976R1

SPACER

up to 434D/18147, including, Serial Range: up-434P/2176

3шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

hex-hd., 3/8" x 3-3/4"

2шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

hex-hd., 3/8" x 6-3/8"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 3/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

3106655R1

PLATE

spring, L.H.

1шт.

13

3074950R1

SPACER

434D/18148 up, including 434P/2177 up

1шт.

14

3106656R1

PLATE

spring R.H.

1шт.

3074951R91

LEVER

PACKAGE, brake pedal locking lever field improvement, comprising all parts listed below

1шт.

3106655R1

PLATE

1шт.

3106656R1

PLATE

1шт.

3074950R1

SPACER

1шт.
