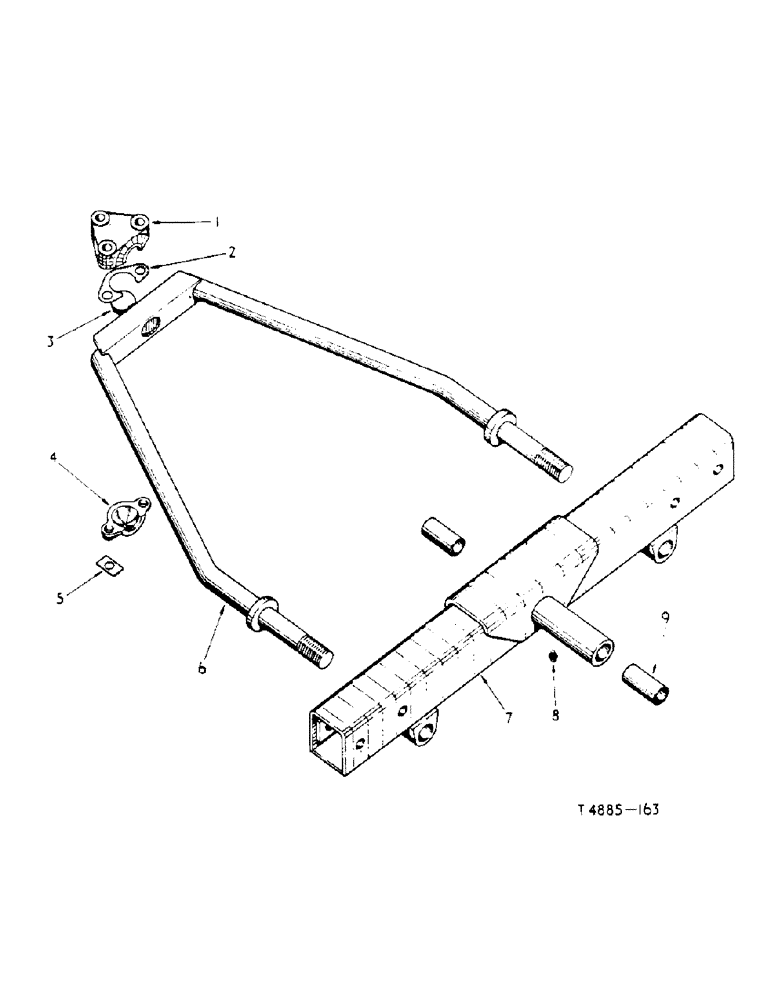

Запчасти Case IH 434 (6-064) - FRONT AXLE AND STAY ROD ATTACHMENTS - ATTACHMENTS (06) - POWER TRAIN

3045495R91

ATTACHMENT front axle and stay rod

1шт.

3069470R91

ATTACHMENT front axle and stay rod

1шт.

1

3043920R1

CUP

SOCKET, ball stay rod

1шт.

2

842389R1

SHIM

cap stay rod socket

1шт.

3

3071538R1

BALL

stay rod

1шт.

4

3109613R1

CAP

stay rod ball socket

1шт.

5

842391R1

PLATE

LOCKPLATE, ball socket

3шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

hex-hd., 5/8" x 3"

2шт.

6

3105073R91

BAR

ROD, cpte., stay

1шт.

427370

NUT

hex., 1-3/8" UNF

2шт.

131036

WASHER

lock, 1-3/8"

2шт.

7

3043916R91

AXLE

w/two BUSHES 3043856R1 and LUBRICATOR 109461 cpte., front, for 3045495R91

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, for 3045495R91 1/8"-27 x .66 lg

1шт.

9

3043856R1

BUSHING

BUSH front axle pivot pin

2шт.
