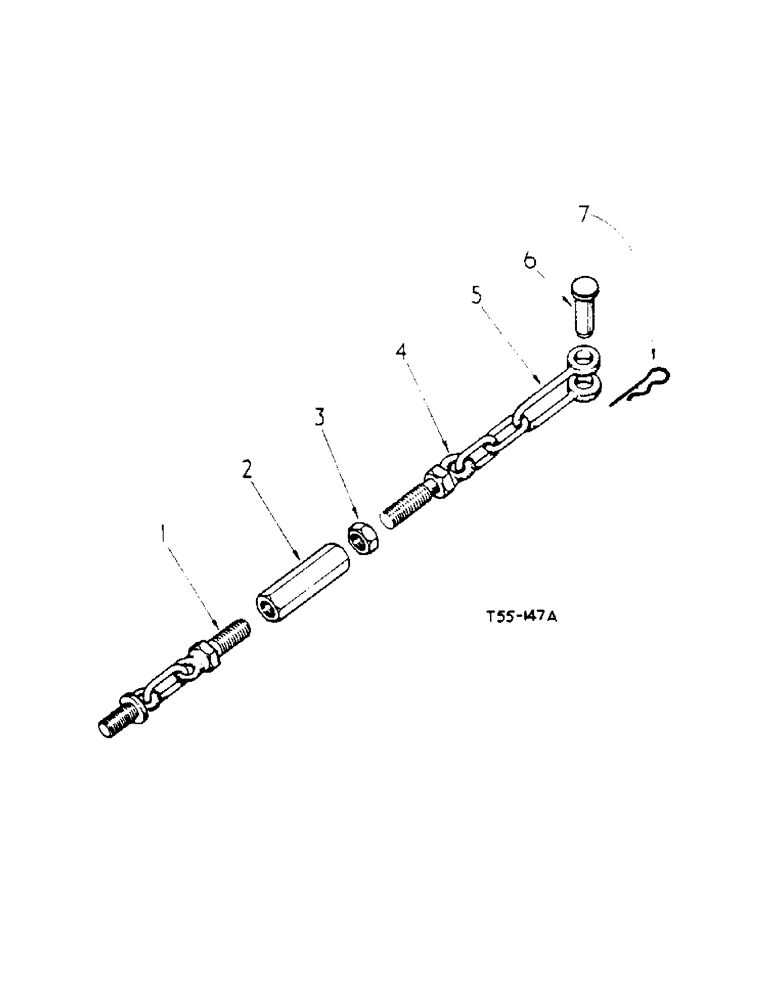

Запчасти Case IH 434 (6-063) - HEAVY DUTY CHECK CHAIN ATTACHMENT - ATTACHMENTS (06) - POWER TRAIN

3068166R91

ATTACHMENT, heavy duty check chain, comprising:

1шт.

Used only w/ Hydraulic Lift Vary Touch and Three Point Linkage Attachment

1шт.

3068168R92

CHAIN, assy., heavy duty, check, comprising:

2шт.

1

3071107R91

CHAIN, cpte., check, tractor end

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

1шт.

2

3048314R1

NUT

check chain adjustment

1шт.

3

218443

NUT

3/4" jam, hex.

1шт.

4

3048309R91

CHAIN (AG)

CHAIN, cpte., check, link end

1шт.

5

3068173R1

SHACKLE, special dee

1шт.

6

Q1237

PIN,3/4" x 2 1/2"

3/4" dia. x 2-1/2" std-hd.

1шт.

7

720631R1

LINCH PIN

PIN, cotter

1шт.

704187R1

LOCKING RING

RING, implement cotter clip

3шт.

700531R1

NO LONGER SERVICED

COTTER implement

3шт.
