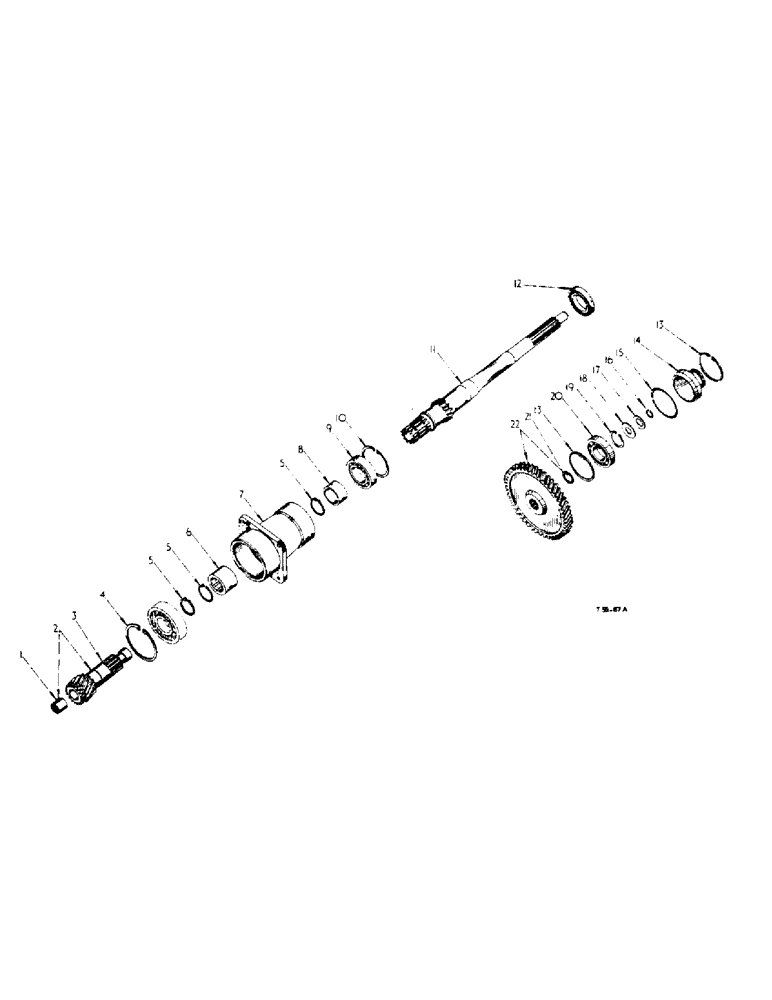

Запчасти Case IH 434 (6-061) - P.T.O. GEARS AND SHAFTS - ATTACHMENTS (06) - POWER TRAIN

1

3069773R91

NEEDLE BEARING

BEARING, trans, spline pilot, optional

1шт.

1

321981R91

NEEDLE BEARING

trans, spline pilot, optional

1шт.

1

3068951R91

NO LONGER SERVICED

BEARING, trans, spline pilot, optional

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

pilot bearing

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

3070738R1

SHAFT

trans. driving

1шт.

4

751081R1

CLIP

CIRCLIP trans. driving shaft rear ball bearing, retaining

1шт.

5

3048709R1

RING, SNAP

CIRCLIP, trans. driving shaft rear ball bearing, retaining

3шт.

6

3049008R1

COUPLING, splined

1шт.

7

3049004R1

CAGE, trans. spline shaft, bearing

1шт.

8

3049007R1

SPACER, trans. and P.T O driving shaft

1шт.

9

703644R91

BALL BEARING

BEARING, ball, trans. and P.T.O. driving shaft rear, optional

1шт.

9

704327R91

BEARING, BALL

trans. and P.T.O. driving shaft rear, optional

1шт.

9

42454H

BALL BEARING

BEARING, ball, trans. and P.T.O. driving shaft rear, optional

1шт.

9

708170R91

BEARING, BALL

trans. and P.T.O. driving shaft rear, optional

1шт.

10

751149R1

RING

CIRCLIP, trans. and P.T.O. driving shaft rear ball bearing, retaining

1шт.

11

3048700R4

SHAFT

driving, trans. and P.T.O.

1шт.

12

704229R91

OIL SEAL

trans. and P.T.O. driving shaft, optional

1шт.

12

704230R91

SEAL

OIL SEAL trans. and P.T.O. driving shaft, optional

1шт.

12

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL trans. and P.T.O. driving shaft, optional

1шт.

13

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining, 85 mm internal

2шт.

14

751148R3

CAP

P.T.O. front bearing

1шт.

15

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

P.T.O. front bearing, 3-3/8" x 3-3/4" x 3/16"

1шт.

16

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

17

NOT USED

1шт.

18

751142R1

WASHER

P.T.O. shaft, front, retaining

1шт.

19

751146R1

RING

CIRCLIP, P.T.O. front bearing retaining (45 mm ext.)

1шт.

20

704327R91

BEARING, BALL

BEARING, P.T.O. shaft, front, optional

1шт.

20

703644R91

BALL BEARING

BEARING, P.T.O. shaft, front, optional

1шт.

20

42454H

BALL BEARING

BEARING, P.T.O. shaft, front, optional

1шт.

20

708170R91

BEARING, BALL

BEARING, P.T.O. shaft, front, optional

1шт.

21

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

22

3044007R11

GEAR

w/CIRCLIP 751145R1 cpte., driven P.T.O. (55 teeth)

1шт.
