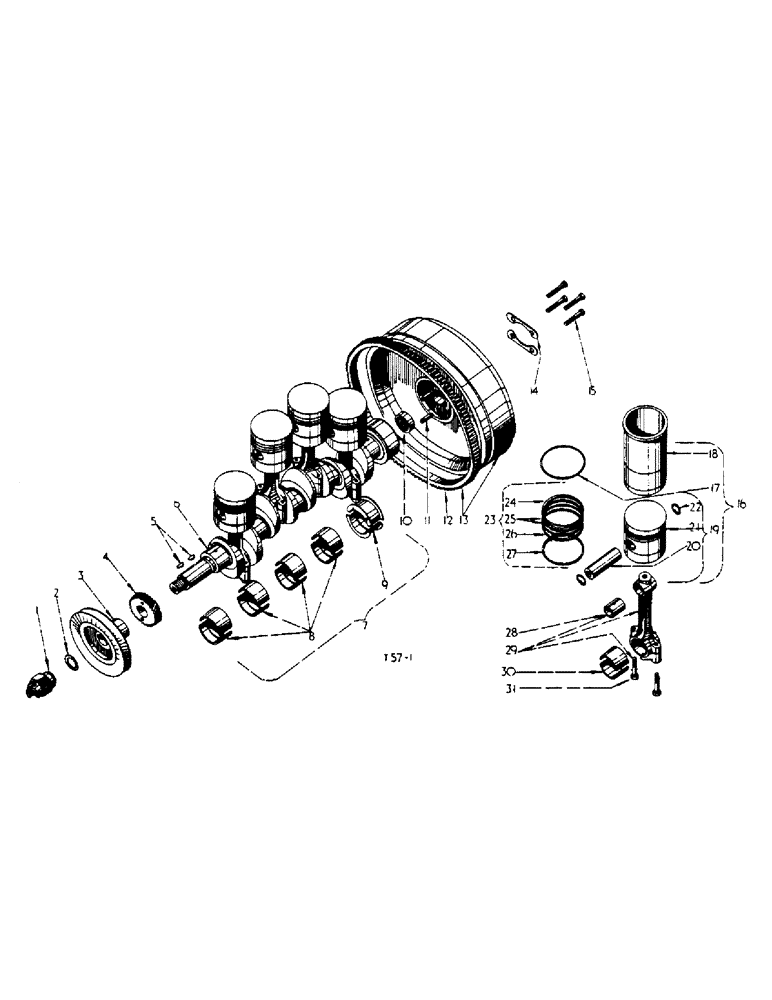

Запчасти Case IH 434 (1-07) - CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTON UNIT - DIESEL ENGINE (02) - ENGINE

1

3107767R1

TINE

NUT, starting crank

1шт.

2

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

3

708286R1

PULLEY

fan drive

1шт.

4

703865R1

GEAR

PINION, crankshaft (33 T)

1шт.

5

218211

DRIVING SPROCKET

crankshaft pinion

2шт.

6

751303R41

CRANKSHAFT

w/two PIN 24550D and BEARING 708909R93 cpte.

1шт.

7

708912R91

CRANKSHAFT BEARING

BEARING. crankshaft main, std., Includes 4-P/N 3064523R11 and 1-P/N 708910R91

1шт.

7

708913R91

CRANKSHAFT BEARING

BEARING, crankshaft main, .030 undersize, Includes 4-P/N 3064524R11 and 1-P/N 708911R91

1шт.

7

708914R91

CRANKSHAFT BEARING

BEARING, crankshaft main, .015 undersize, Includes 4-P/N 3064525R11 and 1-P/N 708915R91

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, cpte., (std.) crankshaft main front and center

4шт.

8

3064524R11

BEARING LINER

BEARING, cpte., (.030) crankshaft main front and center

4шт.

8

3064525R11

BEARING LINER

BEARING, cpte., (.015) crankshaft main front and center, Includes one upper and lower half

4шт.

9

708910R91

BEARING ASSY

BEARING, cpte., (std.) crankshaft main, rear

1шт.

9

708911R91

BEARING ASSY

BEARING, cpte., (.030) crankshaft main, rear

1шт.

9

708915R91

BEARING ASSY

BEARING, cpte., (.015) crankshaft main, rear, Includes two halves

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot (Fischer)

1шт.

10

751846R93

BALL BEARING

clutch pilot (R & M)

1шт.

10

751847R93

BALL BEARING

clutch pilot (Skefco)

1шт.

10

751848R93

NO LONGER SERVICED

BEARING, clutch pilot (Hoffman)

1шт.

11

24550D

PIN

flywheel dowel

2шт.

11

3066811R1

PIN, flywheel dowel, for O.S.D. crankshafts

1шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3043823R11

FLYWHEEL

w/RING GEAR 704436R1 and two PINS 141215

1шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

3044478R93

SLEEVE CYLINDER

SLEEVE, cpte., w/PISTONS and SLEEVES 3044479R93 (set of 4) cyl. and pistons

1шт.

16

3044479R93

SLEEVE CYLINDER

PISTON, w/SLEEVE cpte., w/PISTON 3044480R92, SLEEVE 3044481R3 and RING 704100R1

4шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cyl., sleeve packing

4шт.

18

3044481R3

LINER, ENGINE CYLIND

SLEEVE, cyl.

4шт.

19

3044480R93

PISTON ASSY

PISTON, assy., pin and rings, comprising

4шт.

3044476R1

PIN

1шт.

3044486R1

PISTON

1шт.

3070101R2

PISTON RING

RING

1шт.

3070102R2

SEGMENT

RING

2шт.

3070103R2

RING

2шт.

704095R1

SNAP RING,M28, Int

RETAINER

1шт.

20

3044476R1

PIN

pinion

4шт.

20

3044477R1

PIN piston, .005 overesize

1шт.

21

3044486R2

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

23

3044487R93

RING

SET piston rings, comprising

1шт.

3070101R2

PISTON RING

RING

4шт.

3070102R2

SEGMENT

RING

8шт.

3070103R2

RING

8шт.

24

3070102R2

SEGMENT

RING, compression piston - top

4шт.

25

3070102R2

SEGMENT

RING, compression piston

8шт.

26

3070103R2

RING

oil control piston - upper

4шт.

27

3070103R2

RING

oil control piston - lower

4шт.

28

711045R1

BUSHING

piston pin optional

4шт.

28

3043611R1

BUSHING

piston pin optional

4шт.

29

3061216R91

CONNECTING ROD

ROD, cpte., connecting (set of four), comprising

1шт.

3061214R91

PITMAN ASSY.

ROD

4шт.

29

704089R91

CONNECTING ROD

ROD, cpte., connecting (set of four) order 3061216R91

1шт.

29

3061214R91

PITMAN ASSY.

ROD, assy., connecting, comprising

4шт.

3043216R1

BOLT,3/8" - 24 x 2"

2шт.

711045R1

BUSHING

BUSH

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

ROD

1шт.

30

3070536R11

BEARING

cpte., std. connecting rod (two halves)

4шт.

30

3070537R11

BEARING

cpte., (.030 undersize) connecting rod (two halves)

1шт.

30

3070538R11

JOURNAL

BEARING, cpte., (.015 undersize) connecting rod (two halves)

1шт.

31

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

3070546R91

BEARING LINER

BEARING, cpte., (std.) connecting rod, comprising four BEARING 3070536R11

1шт.

3070547R91

CRANKSHAFT BEARING

BEARING, cpte., (.030 undersize) connecting rod, comprising four BEARING 3070537R11

1шт.

3070539R91

BEARING LINER

BEARING, cpte., (.015 undersize) connecting rod, comprising four BEARING 3070538R11

1шт.

141215

PIN,5/16" x 1/2"

used w/Flywheel

2шт.

3067471R91

PACKAGE service, .015 undersize crankshaft, comprising crankshaft

1шт.

3067472R11

CRANKSHAFT, w/PIN 24550D cpte. (.015 undersize)

1шт.

24550D

PIN

flywheel dowel

2шт.

708914R91

CRANKSHAFT BEARING

SET of crankshaft main bearings

1шт.
