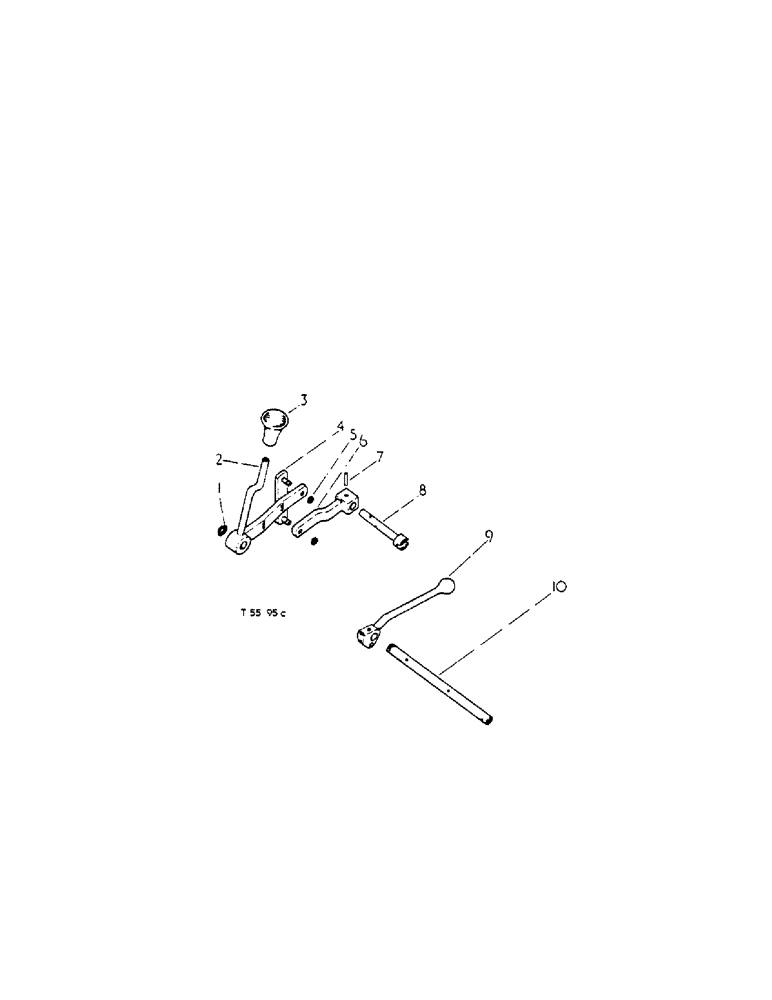

Запчасти Case IH 434 (6-057) - GEAR SHIFTER MECHANISM, UP TO 434/10369 DIESEL, 434/1361 PETROL - ATTACHMENTS (06) - POWER TRAIN

1

3049105R1

RETAINER

CIRCLIP

1шт.

On orders for this item furnish PACKAGE 3072101R91

1шт.

2

3048775R93

LEVER, cpte., forward and reverse, optional

1шт.

On orders for this item furnish PACKAGE 3072101R91

1шт.

2

3048748R3

LEVER

forward and reverse, optional

1шт.

On orders for this item furnish PACKAGE 3072101R91

1шт.

3

53717DA

BUTTON

BALL, gear shifter lever

1шт.

4

3048744R31

DRAG LINK

LINK, cpte., connecting

1шт.

On orders for this item furnish PACKAGE 3072101R91

1шт.

5

3049117R1

CIRCLIP

2шт.

6

3048743R31

LINK, cpte., forward and reverse, shaft, optional

1шт.

On orders for this item furnish PACKAGE 3072101R91

1шт.

6

3048742R5

DRAG LINK

LINK, forward and reverse, shaft, optional

1шт.

On orders for this item furnish PACKAGE 3072101R91

1шт.

7

20894R1

NO LONGER SERVICED

PIN, coiled spring, 1/4" x 1"

1шт.

8

3048727R2

SHAFT

connecting

1шт.

9

3049109R1

HANDLE

high-low range shifter

1шт.

142358

PIN

1/4" x 1-1/2", type 1, groove

1шт.

10

3049108R2

SHAFT

high-low range shifter

1шт.

3072101R91

ROD

PACKAGE, field improvement

1шт.
