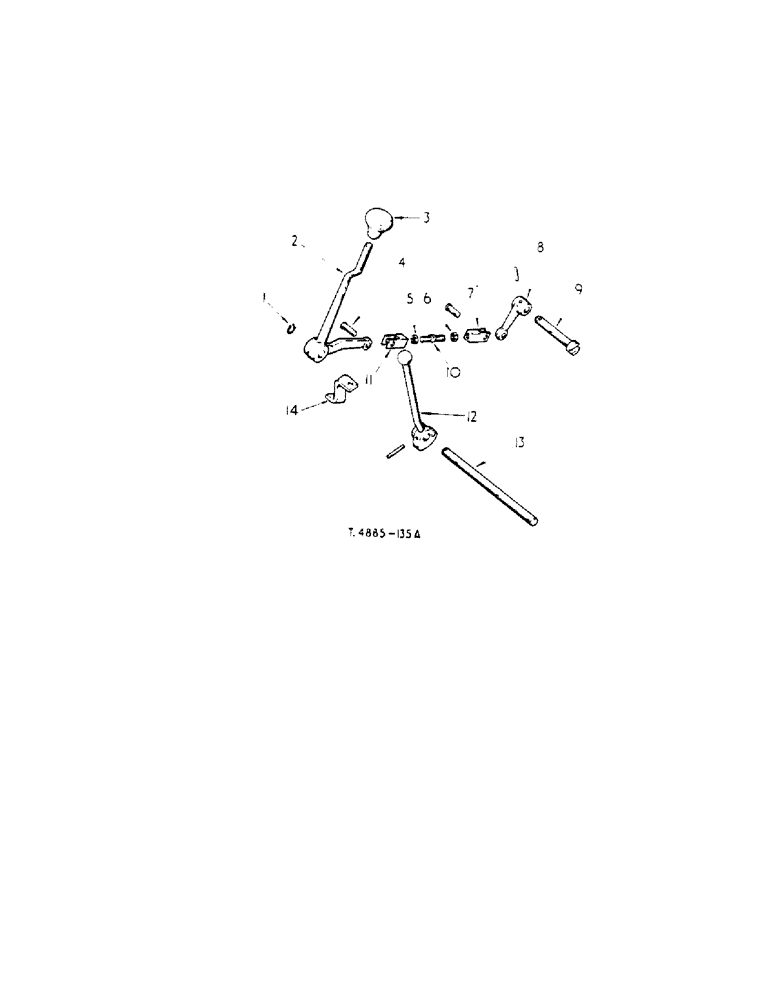

Запчасти Case IH 434 (6-057[1]) - GEAR SHIFTER MECHANISM, 434/10370 UP DIESEL, 434/1362 UP PETROL - ATTACHMENTS (06) - POWER TRAIN

1

3049117R1

CIRCLIP, Anderton

1шт.

2

3072099R1

LEVER

forward and reverse

1шт.

3

53717DA

BUTTON

BALL, gear shifter lever

1шт.

4

NLS

NO LONGER SERVICED

PIN, 3/8", rod end

1шт.

5

114503

JAM NUT,Jam, 3/8"-16, G5

jam, 3/8"-24 UNF

1шт.

6

116428

NUT,Jam, 3/8"-24, G5, LH

jam, 3/8"

1шт.

7

3072098R1

CLEVIS

ROD, clevis

1шт.

8

3072095R1

LINK

forward and reverse shaft

1шт.

9

3048727R2

SHAFT

connecting

1шт.

20894R1

NO LONGER SERVICED

PIN coiled spring, 1/4 x 1 med.

1шт.

10

3072096R1

ADJUSTMENT ROD

ROD adjustable connecting

1шт.

11

3072097R1

CLEVIS

ROD clevis

1шт.

12

3049109R1

HANDLE

high/low range shifter

1шт.

142358

PIN

groove, 1/4 x 1-1/2, type 1

1шт.

13

3049108R2

SHAFT

high/low range shifter

1шт.

14

3072100R1

BRACKET

shifter lever

1шт.
