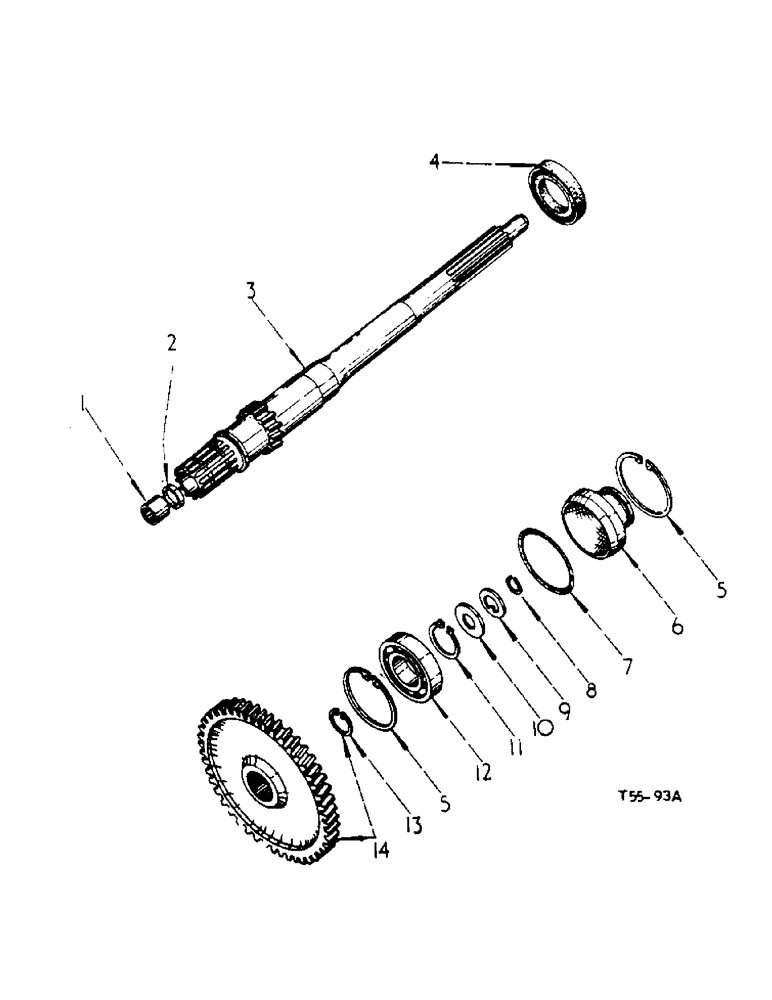

Запчасти Case IH 434 (6-054) - P.T.O. DRIVING SHAFT AND GEARS, HEAVY DUTY SINGLE CLUTCH - ATTACHMENTS (06) - POWER TRAIN

1

3062462R91

BEARING

I.N.A.

1шт.

2

3062461R1

SPACER

pilot bearing distance piece

1шт.

3

3073617R1

SHAFT

trans, and P.T.O. driving, 434D/19949 up

1шт.

Including 434P/2404 up, 434 Highway/516 up

1шт.

3

3048700R4

SHAFT

trans. and P.T.O. driving, Serial Range: up-4340/19948

1шт.

On orders for SHAFT 3048700R4, furnish SHAFT 3073617R1 and SHAFT 3073618R1

1шт.

Including up to 434P/2403, up to 434 Highway/515

1шт.

4

3066617R91

SEAL

OIL SEAL, trans. and P.T.O. driving shaft, opt.

1шт.

4

751080R91

SEAL

OIL SEAL, trans. and P.T.O. driving shaft, opt.

1шт.

4

3049150R92

SEAL

OIL SEAL, trans. and P.T.O. driving shaft, opt.

1шт.

5

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining, 85 mm internal

2шт.

6

751148R3

CAP

P.T.O. front bearing

1шт.

7

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

3-3/8" x 3-3/4" x 3/16", P.T.O. front bearing cap

1шт.

8

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

9

NOT USED

1шт.

10

751142R1

WASHER

P.T.O. shaft, front, retaining

1шт.

11

751146R1

RING

CIRCLIP, P.T.P. front bearing, retaining, 45 mm int.

1шт.

12

704327R91

BEARING, BALL

BEARING, P.T.O. shaft, front, optional

1шт.

12

703644R91

BALL BEARING

BEARING, P.T.O. shaft, front, optional

1шт.

12

42454H

BALL BEARING

BEARING, P.T.O. shaft, front, optional

1шт.

12

708170R91

BEARING, BALL

BEARING, P.T.O. shaft, front, optional

1шт.

13

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

14

3044007R91

GEAR, w/CIRCLIP 751145R1 cpte., driven P.T.O., 55 teeth

1шт.
