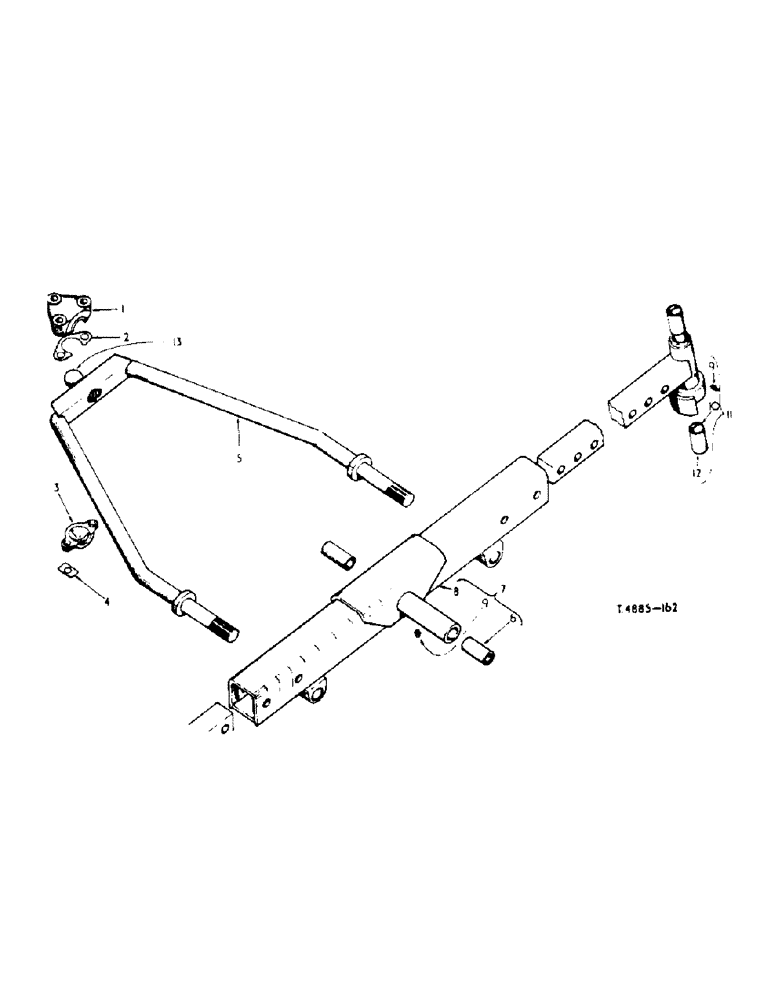

Запчасти Case IH 434 (6-047) - FRONT AXLE, EXTENSION AND STAY ROD - ATTACHMENTS (06) - POWER TRAIN

1

3043920R1

CUP

SOCKET, stay rod, ball, used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

Used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment Hex, 5/8"-11 x 1 3/4", G5

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex. hd., 5/8" x 3", used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment, Course Threads

2шт.

2

842389R1

SHIM

stay rod socket cap, used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment

1шт.

3

3109613R1

CAP

stay rod ball socket, used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment

1шт.

4

842391R1

PLATE

lock, ball socket, used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment

3шт.

5

3105073R91

BAR

ROD, cpte., stay, used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment

1шт.

427370

NUT

hex., 1-3/8" UNF, used with factory application power assisted steering attachment and used with P/N 3070913R91 power assisted steering attachment

2шт.

6

3043856R1

BUSHING

BUSH, pivot pin, used with factory application power assisted steering attachment

2шт.

7

3043916R91

AXLE

w/two BUSH 3043856R1 and LUBRICATOR 119512 cpte., front, used with factory application power assisted steering attachment

1шт.

8

NSS

NOT SOLD SEPARAT

AXLE, front, used with factory application power assisted steering attachment

1шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional, Used with factory application power assisted steering attachment 1/8"-27 x .66 lg

3шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, Optional, used with factory application power assisted steering attachment 1/8"-27 x .66 lg

3шт.

10

751942R1

BUSHING

BUSH, steering knuckle pivot

1шт.

11

3043921R91

EXTENSION

w/two BUSH 751942R1 and LUBRICATOR 118512 cpte., L.H. front axle (Illustrated)

1шт.

11

3043922R91

EXTENSION

w/two BUSH 751942R1 and LUBRICATOR 119512 cpte., R.H. front axle

1шт.

12

NSS

NOT SOLD SEPARAT

EXTENSION, front axle L.H., (Illustrated)

1шт.

12

NSS

NOT SOLD SEPARAT

EXTENSION, front axle R.H.

1шт.

3043863R1

BOLT (SPREADER)

BOLT, front axle extension

1шт.

218197

NUT,3/4"-16, G5

3/4"-16 UNF, hex.

1шт.

3060918R1

BRACKET

front axle stay rod, used with P/N 3070913R91 power assisted steering attachment

2шт.

13

3071538R1

BALL

stay rod

1шт.
