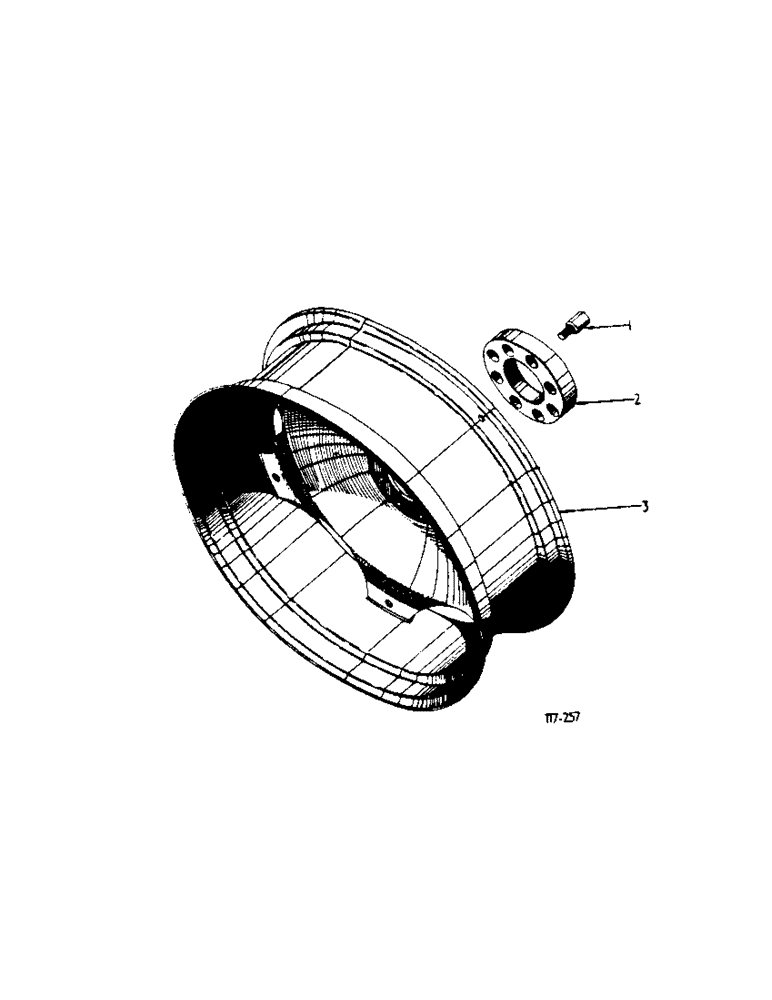

Запчасти Case IH 434 (6-037) - DUAL REAR WHEEL ATTACHMENT - ATTACHMENTS (06) - POWER TRAIN

3069486R91

ATTACHMENT, dual rear wheel (11-28) comprising : 1 - 3

1шт.

1

707706R1

NUT

wheel spacer, special

16шт.

2

707707R1

SPACER, wheel

2шт.

3

3048868R91

WHEEL ASSY.

WHEEL, cpte., rear rim and disc (11-28) opt., comprising only P/N 3048868R91

2шт.

3042292R92

WHEEL ASSY

WHEEL, cpte., rear rim and disc (11-28) opt., comprising only P/N 3042292R92

2шт.

3073908R1

BOLT

6шт.

3042290R1

DISC

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

707703R92

RIM

1шт.

703931R1

WASHER

6шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

(nib bolt) rear wheel rim

12шт.

3073908R1

BOLT

hex, 5/8" UNF sq-nk

12шт.

3042290R1

DISC

rear wheel

2шт.

703930R2

NUT

rear wheel rim bolt

6шт.

425-1110

NUT,5/8"-18, G5

hex., 5/8" UNF (for sq-nk. bolt)

12шт.

707703R92

RIM

cpte., rear wheel

2шт.

703931R1

WASHER

rear rim bolt

12шт.

3068243R91

CAP

exhaust muffler rain, attachment

1шт.

707711R92

ATTACHMENT, rear wheel (W11-28), comprising:

1шт.

3048868R91

WHEEL ASSY.

WHEEL cpte., rear, rim and disc (11-28), opt., comprising only P/N 3048868R91

2шт.

3042292R92

WHEEL ASSY

WHEEL cpte., rear, rim and disc (11-28), opt., comprising only P/N 3042292R92

2шт.

3073908R1

BOLT

rear wheel attachment

6шт.

3042290R1

DISC

rear wheel attachment

1шт.

425-1110

NUT,5/8"-18, G5

rear wheel attachment

6шт.

707703R92

RIM

rear wheel attachment

1шт.

703931R1

WASHER

rear wheel attachment

6шт.

3073908R1

BOLT

sq-nk, hex., 5/8" UNF, rear wheel attachment

12шт.

3042290R1

DISC

rear wheel

2шт.

425-1110

NUT,5/8"-18, G5

rear wheel rim and bolt

12шт.

707703R92

RIM

cpte., rear wheel

2шт.

703931R1

WASHER

rear rim bolt, wheel attachment

12шт.
