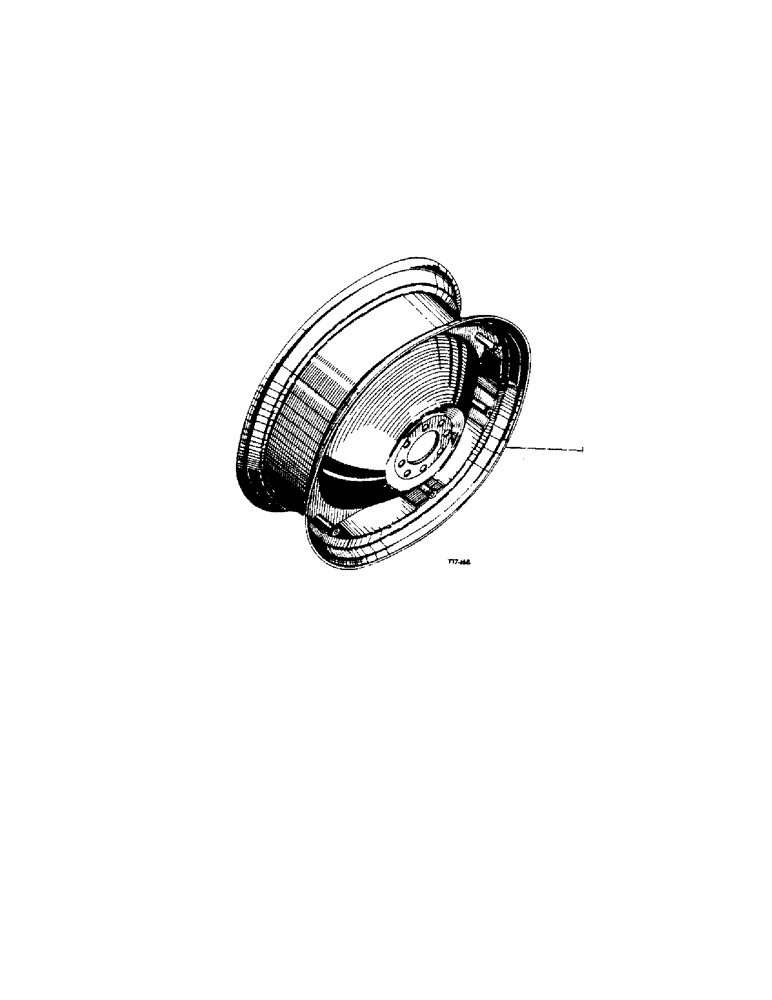

Запчасти Case IH 434 (6-035[1]) - REAR WHEEL, TIRE AND TUBE ATTACHMENT - ATTACHMENTS (06) - POWER TRAIN

3069484R91

ATTACHMENT, rear wheel pnue. tire and rim, 9 x 28

1шт.

3069485R91

ATTACHMENT, rear wheel pnue. tire and rim, 12 x 28

1шт.

3069489R91

ATTACHMENT, rear wheel pnue. tire and rim, 13 x 28

1шт.

1

3048867R91

WHEEL ASSY.

WHEEL, cpte., rear, rim and disc, W9 x 28, optional

1шт.

1

3042291R92

RIM

WHEEL, cpte., rear, rim and disc, W9 x 28, optional, for 3069484R91, comprising only Ref. 1 P/N 3042291R92

2шт.

3073908R1

BOLT

6шт.

3042290R1

DISC

1шт.

121358

YOKE

6шт.

703928R92

RIM

1шт.

703931R1

WASHER

6шт.

1

3068209R92

RIM

WHEEL, cpte., rear, rim and disc, W12 x 28, for 3069485R91, comprising

2шт.

3073908R1

BOLT

6шт.

3042290R1

DISC

1шт.

425-110

6шт.

3070083R92

WHEEL

RIM

1шт.

703931R1

WASHER

6шт.

1

3068210R92

WHEEL ASSY

WHEEL, cpte., rear, rim and disc, W13 x 28, for 3069489R91, comprising

2шт.

3073908R1

BOLT

6шт.

3042290R1

DISC

1шт.

121358

YOKE

6шт.

3070084R92

RIM

1шт.

703931R1

WASHER

6шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

(nib bolt) rear wheel rim

12шт.

3073908R1

BOLT

5/8" UNF (sq-nk)

12шт.

3042290R1

DISC

rear wheel

2шт.

703930R2

NUT

rear wheel nib bolt

12шт.

425-110

hex., 5/8" UNF (for sq-nk bolt)

12шт.

703928R92

RIM

cpte., rear wheel, for 3069484R91

2шт.

3070083R91

WHEEL

RIM, cpte., rear wheel, for 3069485R91

2шт.

3070084R91

WHEEL

RIM, cpte., rear wheel, for 3069489R91

2шт.

703931R1

WASHER

rear wheel rim bolt

12шт.
