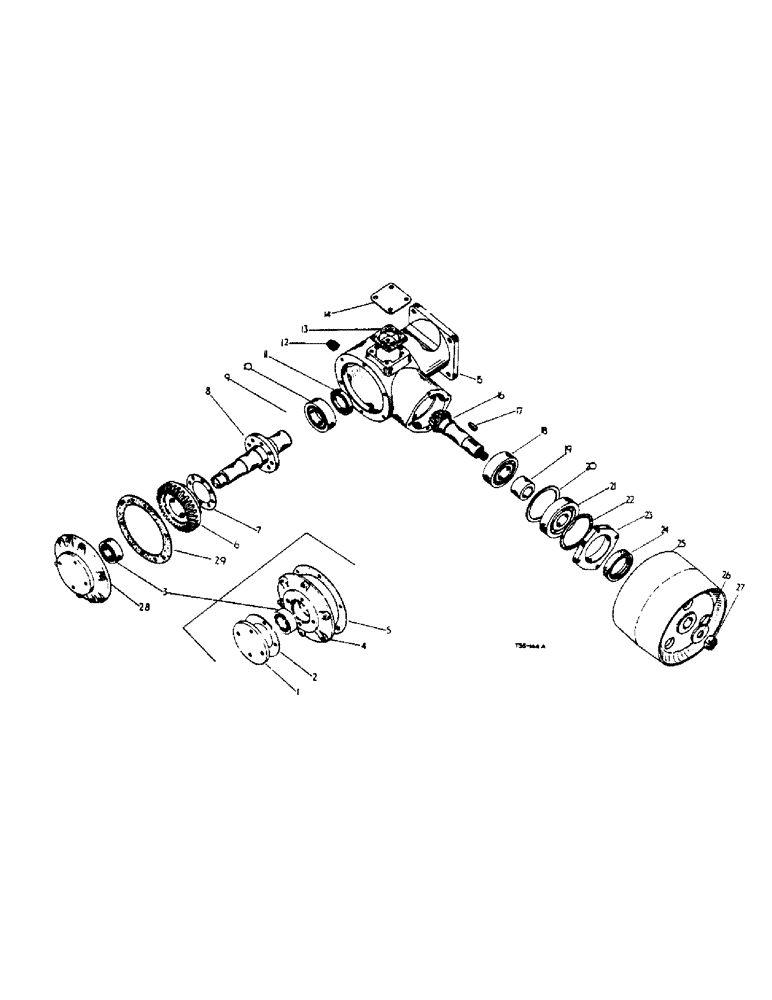

Запчасти Case IH 434 (6-025) - BELT PULLEY AND SHIELD ATTACHMENT - ATTACHMENTS (06) - POWER TRAIN

3067897R91

ATTACHMENT belt pulley, 545 r.p.m., comprising: belt pulley Ref. 1 - 29 and safety shield (see Figure 6-24)

1шт.

Must not be used on domestic agricultural machines.

1шт.

3067899R91

ATTACHMENT belt pulley, 745 r.p.m., comprising belt pulley Ref. 1 - 29 and safety shield (see Figure 6-24)

1шт.

Must not be used on domestic agricultural machines.

1шт.

3067901R91

ATTACHMENT belt pulley, 1,000 r.p.m., comprising belt pulley Ref. 1 - 29 and safety shield (see Figure 6-24)

1шт.

Must not be used on domestic agricultural machines.

1шт.

3067898R91

ATTACHMENT, w/Safety Shield, belt pulley, 545 r.p.m., comprising belt pulley Ref. 1 - 29 and safety shield (see Figure 6-24)

1шт.

Suitable for domestic agricultural machines.

1шт.

3067900R91

ATTACHMENT, w/Safety Shield, belt pulley, 745 r.p.m., comprising belt pulley Ref. 1 - 29 and safety shield (see Figure 6-24)

1шт.

Suitable for domestic agricultural machines.

1шт.

3067902R91

ATTACHMENT, w/Safety Shield, belt pulley, 1,000 r.p.m., comprising belt pulley Ref. 1 - 29 and safety shield (see Figure 6-24)

1шт.

Suitable for domestic agricultural machines.

1шт.

1

711877R1

RETAINER

belt pulley bearing, order cover 3073827R1 with four shims 3073828R1

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

711304R2

GASKET

belt pulley bearing retainer

1шт.

3

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

belt pulley shaft - outer, (S.K.F.) opt.

1шт.

3

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

belt pulley shaft - outer (Fischer) opt.

1шт.

3

705750R91

BEARING, BALL

belt pulley shaft - outer (R & M) opt.

1шт.

3

701445R91

BEARING, BALL

belt pulley shaft - outer (Durkopp) opt.

1шт.

3

700545R91

BEARING

ball, belt pulley shaft - outer (Koyo) opt.

1шт.

3

3108784R91

BEARING, BALL

belt pulley shaft - outer (N.T.N.) opt.

1шт.

3

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

belt pulley shaft - outer (Hoffman) optional

1шт.

3

659473R91

BEARING, BALL

belt pulley shaft - outer, optional

1шт.

4

704241R1

COVER, belt pulley drive housing, order cover 3073827R1 with four shims 3073828R1

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8", hex-hd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

3067914R1

GASKET

belt pulley drive housing cover (Order 3073828R1)

1шт.

6

3067908R1

GEAR

belt pulley bevel (545 r.p.m.)

1шт.

6

3067909R1

GEAR

belt pulley bevel (745 r.p.m.)

1шт.

6

3067910R1

GEAR

belt pulley bevel (1,000 r.p.m.)

1шт.

7

3067911R1

SHIM

belt pulley bevel gear (.0068")

1шт.

8

3067905R11

CLUTCH

cpte., belt pulley P.T.O. (545 and 745 r.p.m.)

1шт.

8

3067907R11

SHAFT

CLUTCH, cpte., belt pulley P.T.O. (1,000 r.p.m.)"

1шт.

9

NOT USED

1шт.

10

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

belt pulley shaft - inner (S.K.F.)

1шт.

10

706234R91

PIPE

BEARING, ball, belt pulley shaft - inner (Fischer)

1шт.

10

704235R91

BALL BEARING

BEARING, ball, belt pulley shaft - inner (R & M )

1шт.

10

3048701R91

BALL BEARING

BEARING, ball, belt pulley shaft - inner (Hoffman)

1шт.

11

704229R91

OIL SEAL

SEAL oil, belt pulley drive housing, optional

1шт.

11

704230R91

SEAL

oil, belt pulley drive housing, optional

1шт.

11

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

oil, belt pulley drive housing, optional

1шт.

12

444592R1

PLUG

3/4", pipe, optional

1шт.

12

20963R1

PLUG,Sq Hd, 1/4"-14 NPTF

3/4", pipe, optional

1шт.

12

217-442

PLUG,3/4" - 14

3/4", pipe, optional

1шт.

13

711882R1

GASKET

belt pulley drive housing top cover plate

1шт.

14

711881R1

PLATE

belt pulley drive housing top cover

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, 3/8" x 11/16", hex-hd.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

3067904R1

HOUSING

belt pulley drive

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

3067915R1

SHAFT

PINION and SHAFT belt pulley drive bevel (745 r.p.m.)

1шт.

16

3067916R1

SHAFT

PINION and SHAFT belt pulley drive bevel (1,000 r.p.m.)

1шт.

16

704242R1

GEAR

PINION and SHAFT belt pulley drive bevel (545 r.p.m.)

1шт.

17

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

18

49533H

BEARING, BALL

belt pulley pinion - inner (S.K.F.) optional

1шт.

18

700521R91

BALL BEARING

BEARING, ball, belt pulley pinion - inner (Fischer) optional

1шт.

18

700523R91

BEARING, BALL

belt pulley pinion - inner (R & M) optional

1шт.

18

704768R92

BALL BEARING

BEARING, ball, belt pulley pinion - inner (Hoffman) optional

1шт.

19

704243R1

SPACER

belt pulley bearing

1шт.

20

3073348R1

SHIM

SPACER belt pulley pinion shaft, .002"

1шт.

20

706745R1

SPACER

belt pulley pinion shaft, .148"

1шт.

21

133606H

BEARING, BALL

belt pulley pinion - outer (S.K.F.) optional

1шт.

21

704224R91

BALL BEARING

BEARING, ball, belt pulley pinion - outer (Fischer) optional

1шт.

21

704245R91

BEARING

ball, belt pulley pinion - outer (R & M) optional

1шт.

21

3063609R91

BALL BEARING

BEARING, ball, belt pulley pinion - outer (Hoffman) optional

1шт.

22

711872R1

GASKET

belt pulley pinion shaft retainer

1шт.

23

704246R21

RETAINER

w/OIL SEAL 704247R91 cpte., belt pulley pinion shaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8", hex-hd.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

704247R91

OIL SEAL

SEAL oil, belt pulley pinion shaft retainer, optional

1шт.

24

704248R91

SEAL

oil, belt pulley pinion shaft retainer, optional

1шт.

24

3066620R91

SEAL

oil, belt pulley pinion shaft retainer, optional

1шт.

25

704249R11

PULLEY

w/BUSHING 704250R1 cpte., belt

1шт.

704250R1

BUSHING

1шт.

26

704251R1

WASHER

belt pulley retainer

1шт.

27

704252R1

NUT

belt pulley pinion shaft

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

28

3073827R1

COVER

belt pulley drive housing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-3/8" hex-hd.

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

3073828R1

SHIM

housing

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8" x 3/4", hex-hd.

8шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

179538

BOLT, 3/8" x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Used w/Belt pulley safety shield 3/8"

4шт.
