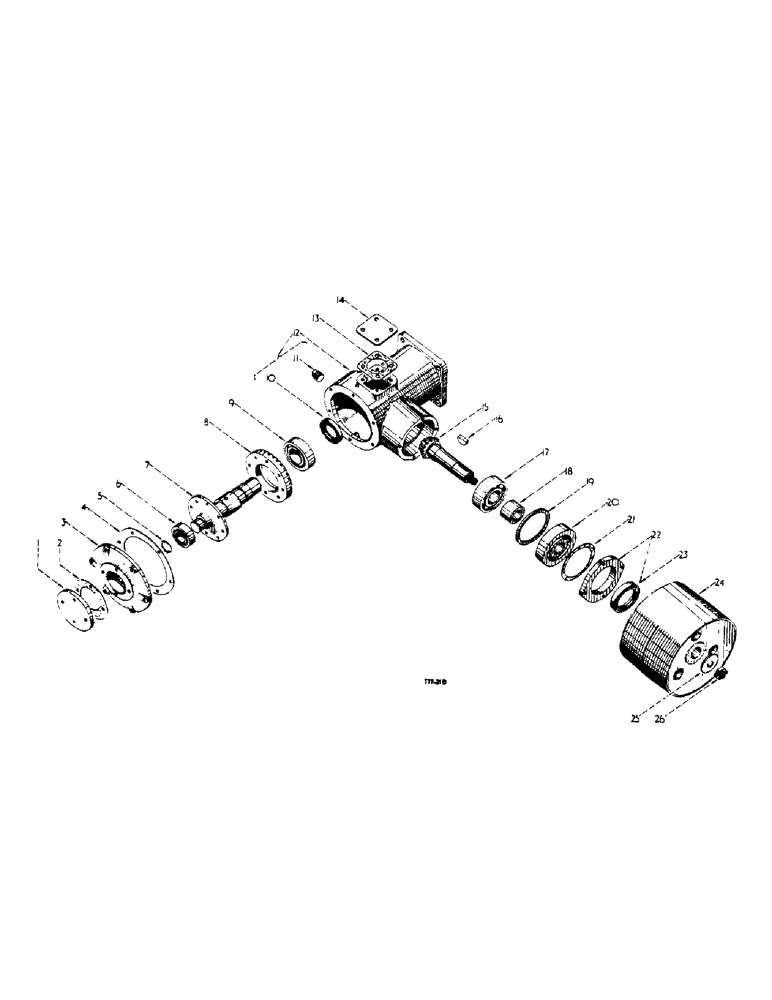

Запчасти Case IH 434 (6-023) - BELT PULLEY - ATTACHMENTS (06) - POWER TRAIN

1

711877R1

RETAINER

belt pulley bearing

1шт.

NLS

NO LONGER SERVICED

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

3шт.

2

711304R2

GASKET

belt pulley bearing retainer

1шт.

3

704241R1

COVER, belt pulley drive housing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

704239R1

GASKET

SHIM, belt pulley drive housing cover, heavy, opt., as required

2шт.

4

704240R1

SHIM, belt pulley drive housing cover, light, opt., as required

2шт.

4

707844R1

SHIM

belt pulley drive housing cover, .002, opt.

1шт.

5

704238R1

RETAINER

CIRCLIP, ext. type, 35 mm shaft size

1шт.

6

3108784R1

BEARING, ball, belt pulley shaft - outer, opt.

1шт.

6

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

belt pulley shaft - outer, opt.

1шт.

6

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

belt pulley shaft - outer, opt.

1шт.

6

705750R91

BEARING, BALL

belt pulley shaft - outer, opt.

1шт.

6

701445R91

BEARING, BALL

belt pulley shaft - outer, opt.

1шт.

6

700545R91

BEARING

ball, belt pulley shaft - outer, opt.

1шт.

6

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

belt pulley shaft - outer, opt.

1шт.

6

659473R91

BEARING, BALL

belt pulley shaft - outer, opt.

1шт.

7

704231R12

SHAFT

belt pulley drive, cpte.

1шт.

181333

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

8шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Type A Int Tooth, 5/16"

8шт.

8

704233R2

GEAR

bevel, belt pulley, attachment

1шт.

9

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

belt pulley shaft, inner, opt., attachment

1шт.

9

704234R91

BALL BEARING

BEARING, ball, belt pulley shaft, inner, opt., attachment

1шт.

9

704235R91

BALL BEARING

BEARING, ball, belt pulley shaft, inner, opt., attachment

1шт.

9

3048701R91

BALL BEARING

BEARING, ball, belt pulley shaft, inner, opt., attachment

1шт.

10

704229R91

OIL SEAL

SEAL oil, belt pulley drive housing, opt., attachment

1шт.

10

704230R91

SEAL

oil, belt pulley drive housing, opt., attachment

1шт.

10

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

oil, belt pulley drive housing, opt., attachment

1шт.

11

217-442

PLUG,3/4" - 14

pipe 3/4", belt pulley attachment

1шт.

12

704228R11

HOUSING

belt pulley drive, cpte., w/OIL SEAL 704229R91, and PLUG 103869, attachment

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Belt pulley attachment Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Belt pulley attachment 1/2"

4шт.

13

711882R1

GASKET

belt pulley drive housing top, cover plate, attachment

1шт.

14

711881R1

PLATE

top cover, belt pulley drive housing, attachment

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 11/16", belt pulley attachment

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley attachment 3/8"

4шт.

15

704242R1

GEAR

PINION and SHAFT, belt pulley bevel, attachment

1шт.

16

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

Belt pulley attachment #D, 5/16" x 1 1/4", HT

1шт.

17

49533H

BEARING, BALL

belt pulley pinion, inner, opt., attachment

1шт.

17

700521R91

BALL BEARING

BEARING, ball, belt pulley pinion, inner, opt., attachment

1шт.

17

700523R91

BEARING, BALL

belt pulley pinion, inner, opt., attachment

1шт.

17

704768R91

BALL BEARING

BEARING, ball, belt pulley pinion, inner, opt., attachment

1шт.

18

704243R1

SPACER

bearing, belt pulley, attachment

1шт.

19

706745R1

SPACER

belt pulley pinion shaft (.148), attachment

1шт.

19

3073348R1

SHIM

belt pulley pinion shaft, .002, attachment

1шт.

20

133606H

BEARING, BALL

belt pulley pinion- outer, opt., attachment

1шт.

20

704244R91

BEARING

ball, belt pulley pinion- outer, opt., attachment

1шт.

20

704245R91

BEARING

ball, belt pulley pinion- outer, opt., attachment

1шт.

20

3063609R91

BALL BEARING

BEARING, ball, belt pulley pinion- outer, opt., attachment

1шт.

21

711872R1

GASKET

retainer, belt pulley pinion shaft, attachment

1шт.

22

704246R21

RETAINER

belt pulley pinion shaft cpte., w/OIL SEAL 704247R91, attachment

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8", belt pulley attachment

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley attachment 3/8"

4шт.

23

704247R91

OIL SEAL

SEAL oil, belt pulley pinion shaft retainer, opt., attachment

1шт.

23

704248R91

SEAL

oil, belt pulley pinion shaft retainer, opt., attachment

1шт.

23

3066620R91

SEAL

oil, belt pulley pinion shaft retainer, opt., attachment

1шт.

24

704249R11

PULLEY

belt, cpte., w/BUSHING 704250R1, attachment

1шт.

704250R1

BUSHING

belt pulley, attachment

1шт.

25

704251R1

WASHER

retainer, belt pulley, attachment

1шт.

26

704252R1

NUT

belt pulley pinion shaft, attachment

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), , Belt pulley attachment 5/32" x 1 3/8"

1шт.
