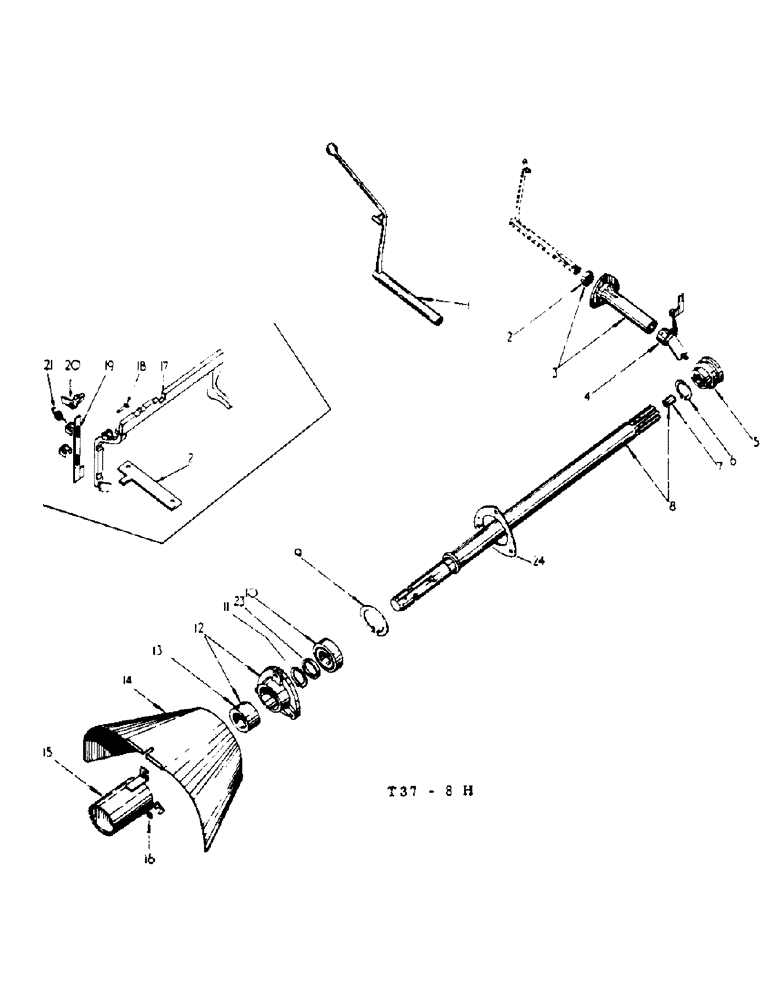

Запчасти Case IH 434 (6-021) - STANDARD REAR P.T.O. ATTACHMENT, UP TO 434/3236 - ATTACHMENTS (06) - POWER TRAIN

3044913R91

ATTACHMENT, std., rear P.T.O. (order 3044913R92) up to 434/3236, not used in high range

1шт.

Not for use with Forward/Reverse Gear Attachment or Single Clutch P.T.O. Attachment

1шт.

1

3064230R91

LEVER

cpte., shifter P.T.O. rear clutch

1шт.

2

704393R91

OIL SEAL

oil, P.T.O. shifter bracket, optional

1шт.

2

704394R91

SEAL

oil, P.T.O. shifter bracket, optional

1шт.

3

704392R21

SUPPORT

BRACKET, P.T.O. cpte., shifter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3061857R11

LEVER

SHIFTER, w/INTERLOCK LEVER, cpte., P.T.O., optional

1шт.

4

751111R93

LEVER

SHIFTER, w/LEVER cpte., P.T.O., optional

1шт.

142508

DRIVE BUSHING

groove, type 1, 3/16" x 1-1/4"

1шт.

5

751113R2

CLUTCH

sliding, P.T.O. shaft rear

1шт.

6

751117R1

CLIP

CIRCLIP, stop P.T.O. shaft rear clutch

1шт.

7

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, P.T.O. rear shaft

1шт.

8

751114R51

SHAFT HOUSING

SHAFT, w/BUSH 48594DA cpte., P.T.O. rear

1шт.

9

704385R1

CLIP

CIRCLIP, (Seeger) (Int. 72 mm)

1шт.

10

705750R91

BEARING, BALL

BEARING, P.T.O. shaft (R & M) opt.

1шт.

10

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING, P.T.O. shaft (Hoffman) opt.

1шт.

10

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, P.T.O. shaft (Fischer) opt.

1шт.

10

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING, P.T.O. shaft (S.K.F.) opt.

1шт.

10

3108784R91

BEARING, BALL

BEARING, P.T.O. shaft (N.T.N.) opt.

1шт.

11

708541R1

RETAINER

CIRCLIP, Anderson, ext. K type, 35 mm

1шт.

12

704387R12

RETAINER

w/OIL SEAL 45702D cpte., P.T.O. oil seal

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

P.T.O. fitted w/ Belt Pulley Attachment

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

6шт.

P.T.O. Not fitted w/ Belt Pulley Attachment

1шт.

3072253R1

STUD

P.T.O. safety shield

3шт.

P.T.O. Not fitted w/ Belt Pulley Attachment

1шт.

95-11034

WASHER,1/4"

plain, 11/16" x 11/32" x 16 ga.

3шт.

P.T.O. Not fitted w/ Belt Pulley Attachment

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

P.T.O. Not fitted w/ Belt Pulley Attachment

1шт.

13

45702D

OIL SEAL

oil, P.T.O., opt.

1шт.

13

708580R91

SEAL ASSY.

SEAL oil, P.T.O., opt.

1шт.

13

3068756R91

SEAL

oil, P.T.O., opt.

1шт.

14

704395R96

SHIELD

assy., safety, P.T.O.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

CAP, cpte., safety, P.T.O.

1шт.

16

WASHER, special (see Attachment)

3шт.

17

751094R2

FORK, cpte., high speed shifter

1шт.

3060929R1

CIRCLIP, 3/16" Anderson type

2шт.

3064717R1

CLIP

retaining

2шт.

18

751797R3

PIN

interlock latch, pivot

1шт.

3066786R1

CIRCLIP

1шт.

16558R1

WASHER

17/64" x 5/8" x 16 ga., flat

1шт.

19

751799R12

PLATE

operating interlock latch

1шт.

20

751794R2

LATCH

interlock

1шт.

21

751798R1

SPRING

interlock latch

1шт.

22

3044010R1

GUIDE

BRACKET, guide and gear shifter fork

1шт.

23

707991R1

COLLAR

P.T.O. shaft

1шт.

24

703971R1

GASKET

P.T.O. oil seal retainer

1шт.

1026445R1

TRANSFER, P.T.O. speed, 545 r.p.m.

1шт.

3040151R91

CAP

ATTACHMENT, cap, safety, P.T.O. (Export)

1шт.

3041319R11

CAP

cpte., safety, P.T.O., optional, attachment

1шт.

751471R91

CAP

cpte., safety, P.T.O., optional, attachment

1шт.

751472R1

WASHER

special, safety cap attachment

3шт.
