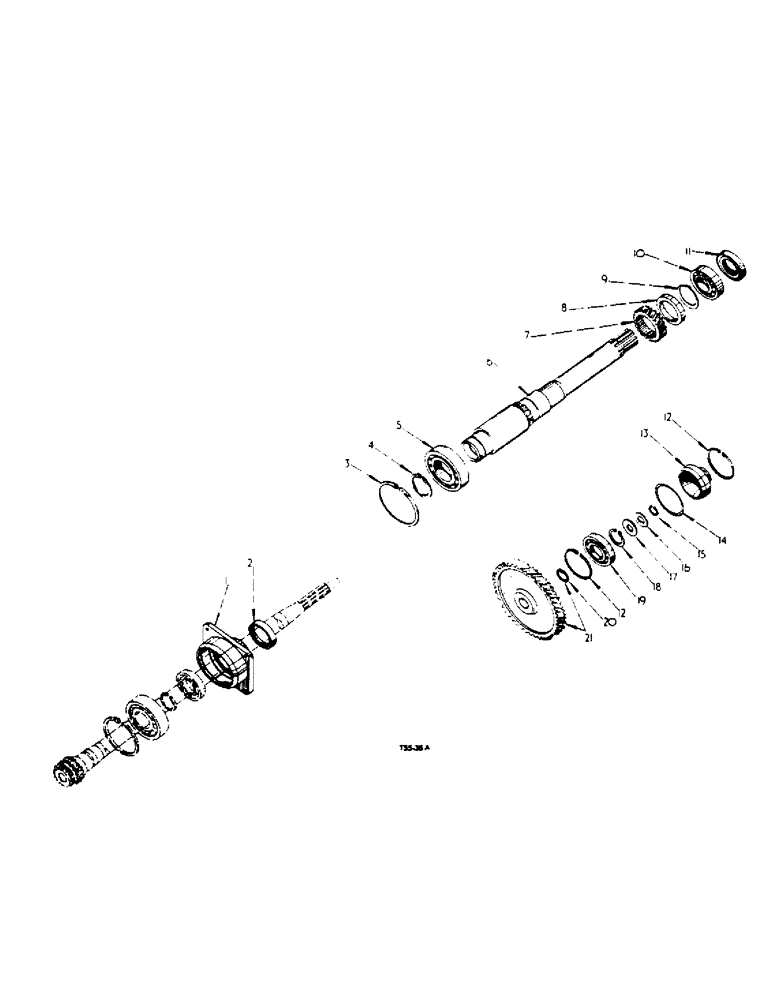

Запчасти Case IH 434 (6-020) - SINGLE SPEED P.T.O. GEARS AND SHAFTS, 1,000 R.P.M. - ATTACHMENTS (06) - POWER TRAIN

1

751077R1

CAGE

bearing, trans. driving shaft

1шт.

2

751140R91

SEAL

oil, P.T.O. driving shaft, rear, optional

1шт.

2

3042160R91

SEAL

oil, P.T.O. driving shaft, rear, optional

1шт.

3

703911R1

RING

CIRCLIP, P.T.O. driving shaft bearing, opt.

1шт.

3

933078R1

SNAP RING,M110, Int

RING locking, opt.

1шт.

4

3064407R1

SNAP RING

CIRCLIP, P.T.O. driving shaft, rear bearing retaining, (60 mm ext.) optional

1шт.

4

703696R1

RING

CIRCLIP, P.T.O. driving shaft, rear bearing retaining (60 mm ext.) optional

1шт.

4

3074379R1

SNAP RING

CIRCLIP, Anderton type 1400 60 mm, optional

1шт.

4

933089R1

SNAP RING,M60, Ext

RING locking, optional

1шт.

5

3069353R91

BALL BEARING

BEARING, P.T.O. driving shaft, rear, (R & M) optional

1шт.

5

3069352R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear (Fischer) optional

1шт.

5

3069349R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear (S.K.F.) optional

1шт.

5

3069355R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear (Hoffman) optional

1шт.

6

3041861R1

SHAFT

drive, P.T.O.

1шт.

7

3045894R1

GEAR

driving, P.T.O. (23 T)

1шт.

8

751155R1

SPACER

P.T.O. driving shaft

1шт.

9

751179R1

CIRCLIP, P.T.O. driving gear retainer

1шт.

10

704235R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, optional

1шт.

10

704234R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, optional

1шт.

10

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, P.T.O. driving shaft, front, optional

1шт.

10

3048701R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, optional

1шт.

11

704229R91

OIL SEAL

SEAL oil, P.T.O. driving shaft, front, optional

1шт.

11

704230R91

SEAL

oil, P.T.O. driving shaft, front, optional

1шт.

11

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

oil, P.T.O. driving shaft, front, optional

1шт.

12

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining (85 mm int.)

2шт.

13

751148R3

CAP

P.T.O. front bearing

1шт.

14

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

P.T.O. front bearing cap, 3-3/8" x 3-3/4" x 3/16"

1шт.

15

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

16

NOT USED

1шт.

17

751142R1

WASHER

retaining, P.T.O. shaft, front

1шт.

18

751146R1

RING

CIRCLIP, P.T.O. front bearing retaining (45 mm ext.)

1шт.

19

704327R91

BEARING, BALL

BEARING, P.T.O. shaft front (R & M) optional

1шт.

19

703644R91

BALL BEARING

BEARING, P.T.O. shaft front (Fischer) optional

1шт.

19

42454H

BALL BEARING

BEARING, P.T.O. shaft front (S.K.F.) optional

1шт.

20

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

21

3045892R11

GEAR, w/CIRCLIP 751145R1 cpte., driven P.T.O. (46 T)

1шт.
