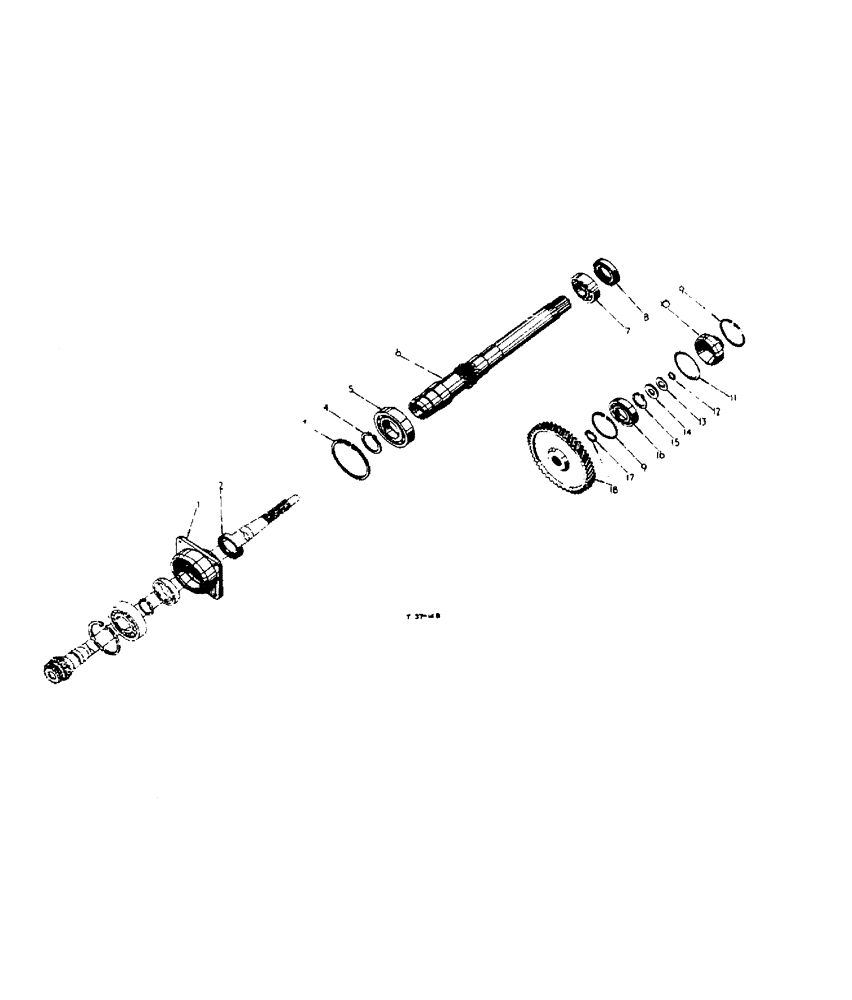

Запчасти Case IH 434 (6-018) - SINGLE SPEED CONSTANT RUNNING P.T.O. ATTACHMENT, SINGLE SPEED P.T.O GEARS/SHAFTS, 545 OR 745 R.P.M. (06) - POWER TRAIN

1

751077R1

CAGE

bearing, trans. driving shaft

1шт.

2

751140R91

SEAL

oil, P.T.O. driving shaft, rear, optional

1шт.

2

3042160R91

SEAL

oil, P.T.O. driving shaft, rear, optional

1шт.

3

703911R1

RING

CIRCLIP, P.T.O. driving shaft rear bearing retaining (110 mm int.) opt.

1шт.

3

933078R1

SNAP RING,M110, Int

RING, locking, opt.

1шт.

4

3074379R1

SNAP RING

CIRCLIP, Anderton type 1400 60 mm, opt.

1шт.

4

703696R1

RING

CIRCLIP, P.T.O. driving shaft rear brg. retaining (60 mm ext.) opt.

1шт.

4

3064407R1

SNAP RING

CIRCLIP, P.T.O. driving shaft rear bearing retaining ( 60 mm ext.) optional

1шт.

5

3069353R91

BALL BEARING

BEARING, P.T.O. driving shaft, rear (R & M)

1шт.

5

3069352R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear (Fischer)

1шт.

5

3069349R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear (S.K.F.)

1шт.

5

3069355R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear (Hoffman)

1шт.

6

3044006R1

GEAR

SHAFT, driving and gear, P.T.O. (15 T) applicable for 545 r.p.m.

1шт.

6

3044303R1

SHAFT

driving and gear, P.T.O. (19 T) applicable for 745 r.p.m.

1шт.

7

704235R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, optional

1шт.

7

704234R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, optional

1шт.

7

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, P.T.O. driving shaft, front, optional

1шт.

7

3048701R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, optional

1шт.

8

704229R91

OIL SEAL

SEAL oil, P.T.O. driving shaft, front, optional

1шт.

8

704230R91

SEAL

oil, P.T.O. driving shaft, front, optional

1шт.

8

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

oil, P.T.O. driving shaft, front, optional

1шт.

9

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining (85 mm int.)

2шт.

10

751148R3

CAP

P.T.O. front bearing

1шт.

11

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

P.T.O. front bearing cap, 3-3/8" x 3-3/4" x 3/16"

1шт.

12

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

13

NOT USED

1шт.

14

751142R1

WASHER

retaining, P.T.O. shaft, front

1шт.

15

751146R1

RING

CIRCLIP, P.T.O. front bearing retaining (45 mm ext.)

1шт.

16

704327R91

BEARING, BALL

BEARING, P.T.O. shaft, front, optional

1шт.

16

703644R91

BALL BEARING

BEARING, P.T.O. shaft, front, optional

1шт.

16

42454H

BALL BEARING

BEARING, P.T.O. shaft, front, optional

1шт.

17

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

18

3044007R11

GEAR

w/CIRCLIP 751145R1 cpte., driven P.T.O. (55 T) applicable for 545 r.p.m.

1шт.

18

3044302R11

GEAR

w/CIRCLIP 751145R1 cpte., driven P.T.O. (51 T) applicable for 745 r.p.m.

1шт.
