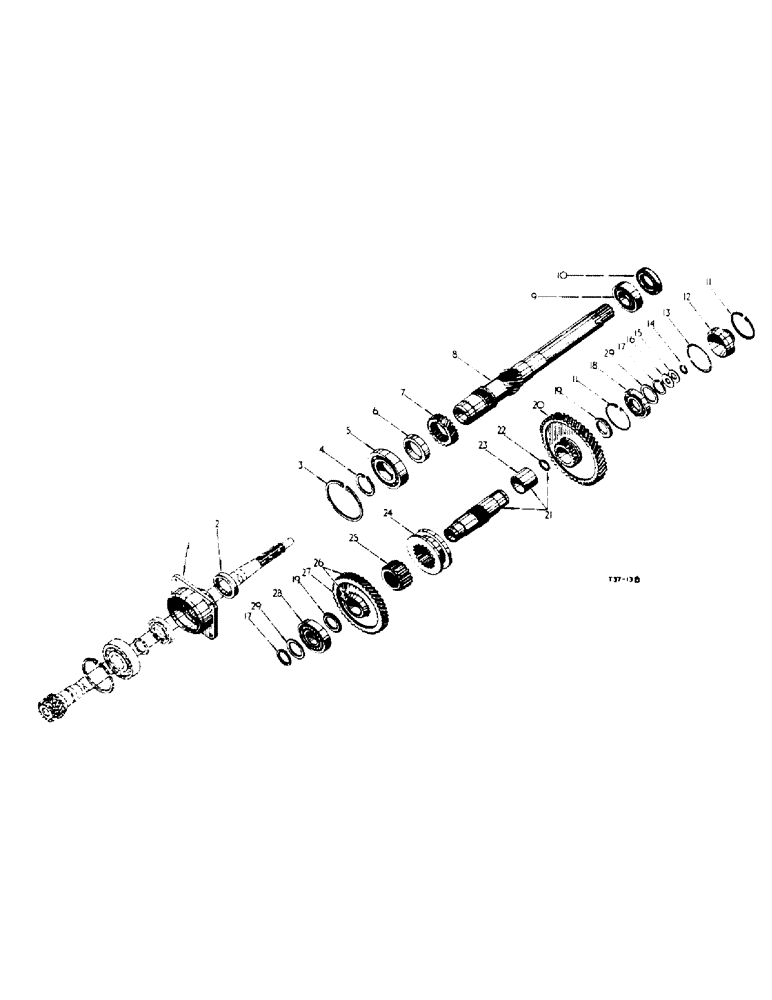

Запчасти Case IH 434 (6-016) - TWO SPEED P.T.O. GEARS AND SHAFTS, 545 AND 1,000 R.P.M. - ATTACHMENTS (06) - POWER TRAIN

1

751077R1

CAGE

bearing, trans. driving shaft

1шт.

2

751140R91

SEAL

oil, P.T.O. driving shaft, rear, optional

1шт.

2

3042160R91

SEAL

oil, P.T.O. driving shaft, rear, optional

1шт.

3

703911R1

RING

CIRCLIP, P.T.O. driving shaft rear bearing retaining, 110 mm int., optional

1шт.

3

933078R1

SNAP RING,M110, Int

RING, locking, optional

1шт.

4

3074379R1

SNAP RING

CIRCLIP, Anderton type 1400 60 mm, opt.

1шт.

4

703696R1

RING

CIRCLIP, P.T.O. driving shaft rear brg. retaining, 60 mm ext., opt.

1шт.

4

3064407R1

SNAP RING

CIRCLIP, P.T.O. driving shaft rear bearing retaining, 60 mm ext., optional

1шт.

5

3069353R91

BALL BEARING

BEARING, P.T.O. driving shaft, rear, R & M, Hoffman

1шт.

5

3069352R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear, Fischer, Hoffman

1шт.

5

3069349R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear, S.K.F., Hoffman

1шт.

5

3069355R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear, Hoffman

1шт.

6

751155R1

SPACER

P.T.O. driving shaft

1шт.

7

3045894R1

GEAR

P.T.O. driving, 23 T

1шт.

8

3045893R1

SHAFT

driving and gear P.T.O, 15 T

1шт.

9

704235R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, R & M

1шт.

9

704234R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, Fischer

1шт.

9

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, P.T.O. driving shaft, front, S.K.F.

1шт.

9

3048701R91

BALL BEARING

BEARING, P.T.O. driving shaft, front, Hoffman

1шт.

10

704229R91

OIL SEAL

SEAL oil, P.T.O. driving shaft, front, optional

1шт.

10

704230R91

SEAL

oil, P.T.O. driving shaft, front, optional

1шт.

10

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

oil, P.T.O. driving shaft, front, optional

1шт.

11

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining, 85 mm int.

2шт.

12

751148R3

CAP

P.T.O. front bearing

1шт.

13

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

P.T.O. front bearing cap, 3-3/8" x 3-3/4" x 3/16"

1шт.

14

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

15

NOT USED

1шт.

16

751142R1

WASHER

retaining, P.T.O. shaft, front

1шт.

17

751146R1

RING

CIRCLIP, countershaft bearing retaining, 45 mm ext.

2шт.

18

704327R91

BEARING, BALL

BEARING, P.T.O. countershaft, front, R & M

1шт.

18

703644R91

BALL BEARING

BEARING, P.T.O. countershaft, front, Fischer

1шт.

18

42454H

BALL BEARING

BEARING, P.T.O. countershaft, front, S.K.F.

1шт.

18

3063611R91

BALL BEARING

P.T.O. countershaft, front, Hoffman

1шт.

19

751167R2

SPACER

P.T.O. countershaft

2шт.

20

3045895R1

GEAR

P.T.O. driven, 55 T

1шт.

21

751157R11

COUNTERSHAFT

w/BUSH 751159R1 and CIRCLIP 751145R1 cpte., P.T.O.

1шт.

22

751145R1

RING, SNAP

CIRCLIP, P.T.O. countershaft, 1-3/8" int.

1шт.

23

751159R1

BUSHING

BUSH, compo, SN 148 x 1-5/8"

1шт.

24

751164R1

PULLEY

CLUTCH, P.T.O. countershaft

1шт.

25

751163R1

BODY

clutch, P.T.O. countershaft

1шт.

26

3045895R11

GEAR, w/BUSH 751159R1 cpte., driven P.T.O

1шт.

27

751159R1

BUSHING

BUSH, compo, SN 148 x 1-5/8"

1шт.

28

751168R91

CRANKSHAFT BEARING

BEARING, P.T.O. countershaft, rea, R & M

1шт.

28

3063611R91

BALL BEARING

P.T.O. countershaft, rear, Hoffman

1шт.

29

3069089R1

WASHER

bearing retainer

2шт.
