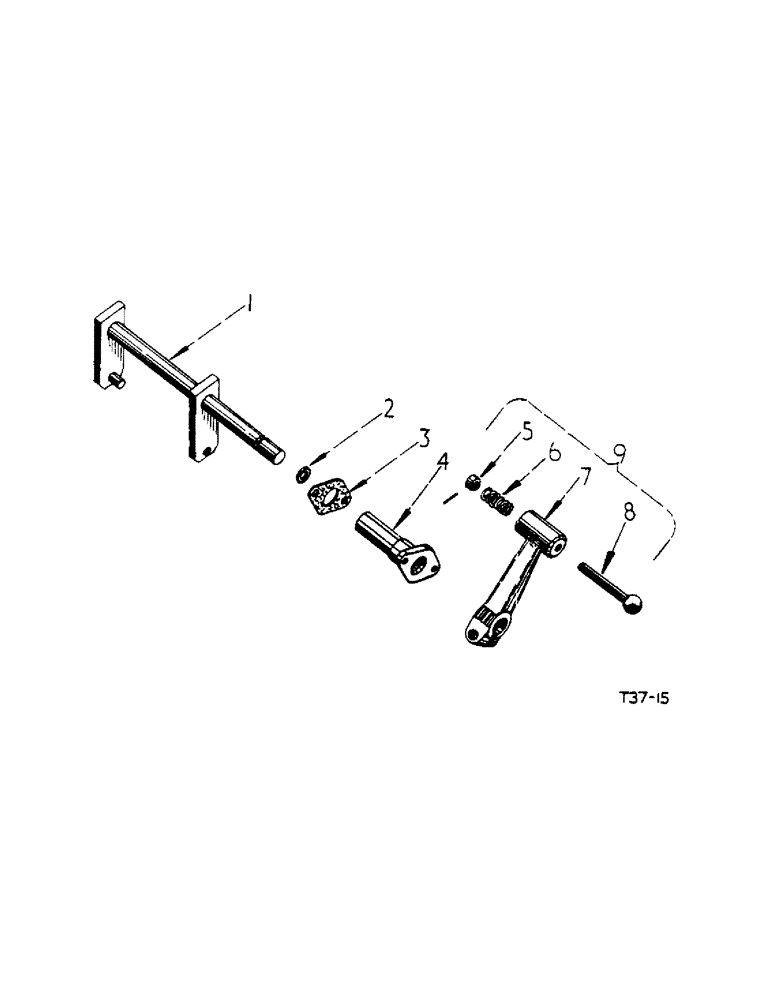

Запчасти Case IH 434 (6-013) - TWO SPEED CONSTANT RUNNING P.T.O. ATTACHMENT, TWO SPEED P.T.O. SHIFTER - ATTACHMENTS (06) - POWER TRAIN

1

751169R11

FORK

cpte., gear shifter

1шт.

2

751172R1

O-RING

O-RING, gear shifter fork

1шт.

3

751130R1

GASKET

gear shifter fork bracket

1шт.

4

751173R1

BRACKET, gear shifter fork

1шт.

179795

TILLAGE BLADE

1/4" x 3/4" hex-hd.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

3041395R1

SLEEVE

clutch shifter lever

1шт.

17067R1

AXLE PIN

PIN, 3/32" x 9/16" roll

1шт.

6

3041396R1

SPRING

clutch operating lever

1шт.

7

3041393R1

LEVER

operating P.T.O clutch

1шт.

8

3041394R1

KNOB

clutch shifter lever

1шт.

9

3041392R91

LEVER

cpte., operating P.T.O. clutch, comprising

1шт.

3041394R1

KNOB

1шт.

3041393R1

LEVER

1шт.

17067R1

AXLE PIN

PIN

1шт.

3041395R1

SLEEVE

1шт.

3041396R1

SPRING

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

1026310R1

PRODUCT GRAPHIC

TRANSFER, two speed P.T.O. gear lever

1шт.
