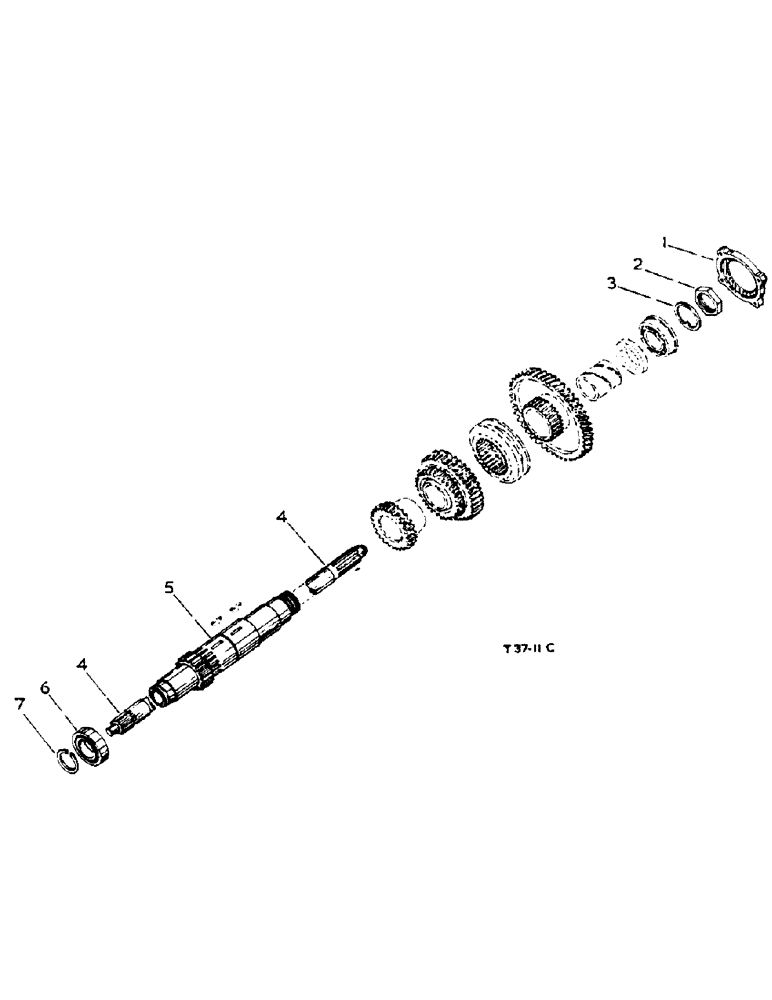

Запчасти Case IH 434 (6-011) - CONSTANT RUNNING P.T.O. ATTACHMENT, SINGLE CLUTCH P.T.O. ATTACHMENT,TRANS. GEARS & SHAFTS-ATTACHMENT (06) - POWER TRAIN

1

751150R1

RETAINER

front bearing, trans. countershaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex-hd.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

751065R1

BEARING LOCK NUT

countershaft front bearing, lock

1шт.

3

751066R1

WASHER

countershaft front bearing, lock

1шт.

4

3068451R2

SHAFT

P.T.O. front

1шт.

On orders for 3068451R1 furnish R2 w/ clutch 751113R2

1шт.

5

3043992R11

SHAFT

COUNTERSHAFT, w/BUSH 751161R1 cpte., trans. and front speed gear

1шт.

6

751063R91

BALL BEARING,50 mm ID x 80 mm OD x 19 mm

trans. countershaft, rear, ball (R & M) (optional)

1шт.

6

3040830R91

BALL BEARING

BEARING, trans. countershaft, rear, ball (Fischer) (optional)

1шт.

6

3049757R91

BALL BEARING

BEARING, trans. countershaft, rear, ball (optional)

1шт.

7

751638R1

RING, SNAP

CIRCLIP, trans. countershaft rear bearing retaining

1шт.

751161R1

BUSHING

BUSH, P.T.O. shaft

1шт.
