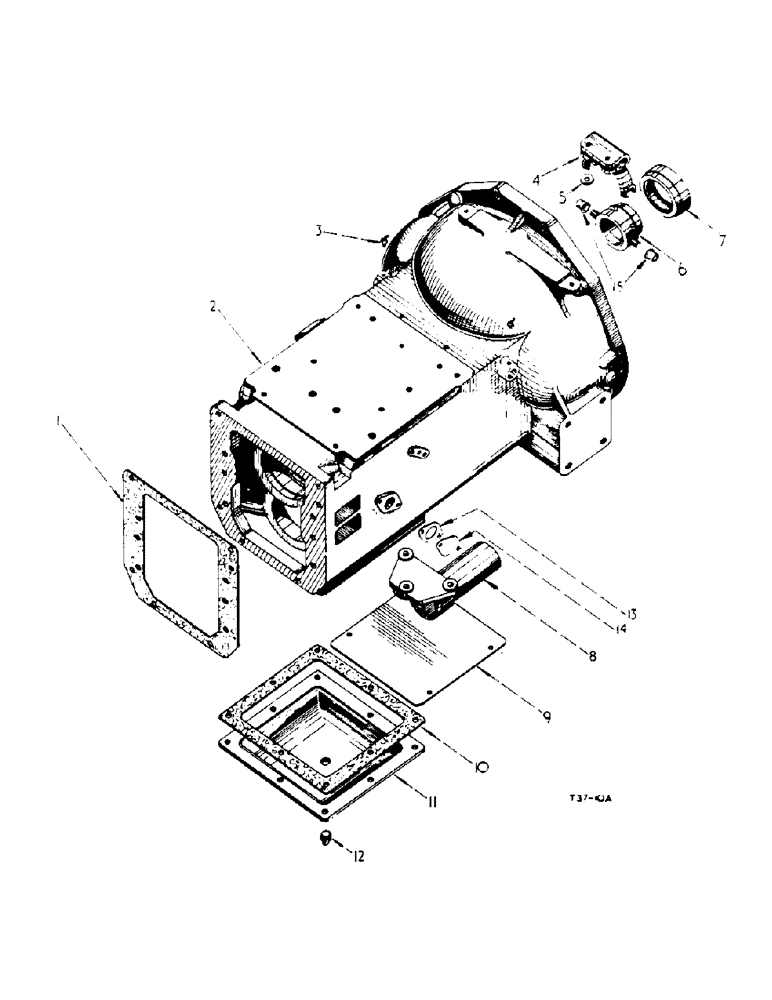

Запчасти Case IH 434 (6-010) - CLUTCH HOUSING - ATTACHMENTS (06) - POWER TRAIN

1

751124R2

GASKET

clutch housing to trans. case

1шт.

2

3044048R22

HOUSING

w/two LUBRICATOR 109462 and four PLUG 103868 cpte., clutch

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2" x 1-1/2" hex-hd.

8шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2" x 1-3/4" hex-hd.

2шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

1/2" x 1-7/8" hex-hd.

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

17шт.

751443R1

PIN

DOWEL, clutch housing

2шт.

3

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, 1/8" PT - 90 degree angle

2шт.

4

3044005R2

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3047229R1

WASHER

KEY, clutch release

1шт.

6

3070647R1

SLEEVE

clutch release bearing

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

3071300R91

BALL BEARING

BEARING, clutch release, optional

1шт.

7

3070634R91

BALL BEARING

BEARING, clutch release, optional

1шт.

7

3070635R91

BALL BEARING

BEARING, clutch release, optional

1шт.

8

3045087R1

CARRIER

clutch release bearing sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16" x 1-1/4" hex-hd.

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

9

751125R1

COVER

hand hole, housing

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, 3/8" x 11/16" hex-hd.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

751126R1

GASKET

cover plate, P.T.O. gearbox

1шт.

11

751127R1

PLATE

cover, P.T.O. gearbox

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2" N.P.T.F. pipe (cast iron) optional

1шт.

12

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe (Malleable) Optional Sq Hd, 1/2"-14 NPTF

1шт.

13

751130R1

GASKET

P.T.O. shifter hole cover plate

1шт.

Used only with Single Speed Constant Running P.T.O. Attachment

1шт.

14

751131R1

PLATE

cover, P.T.O. shifter hole

1шт.

Used only with Single Speed Constant Running P.T.O. Attachment

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

1/4" x 11/16" hex-hd.

2шт.

Used only with Single Speed Constant Running P.T.O. Attachment

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Used only with Single Speed Constant Running P.T.O. Attachment

1шт.

15

3045088R1

INSERT

S, clutch release

2шт.

271550

BOLT, 5/8" x 5/8" hex-hd., used w/Clutch Housing

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/clutch housing 5/8"

3шт.

3045532R91

SERVICE KIT

PACKAGE, service, comprising

1шт.

3070634R91

BALL BEARING

BEARING

1шт.

3045087R1

CARRIER

1шт.

3044005R2

FORK

1шт.

3045088R1

INSERT

2шт.

307647R1

SLEEVE

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

751443R1

PIN

dowel (clutch housing)

2шт.

3068215R1

SEAL

clutch housing hand hole sealing

1шт.

1026425R1

PRODUCT GRAPHIC

TRANSFER, P.T.O. speed, 545 r.p.m.

1шт.

1026437R1

DECAL

TRANSFER, P.T.O. speed, 745 r.p.m.

1шт.

1026441R1

TRANSFER, P.T.O. speed, 1,000 r.p.m.

1шт.

1026433R1

TRANSFER, P.T.O. speed, 545 and 1,000 r.p.m.

1шт.

1026429R1

TRANSFER, P.T.O. speed, 545 and 745 r.p.m.

1шт.
