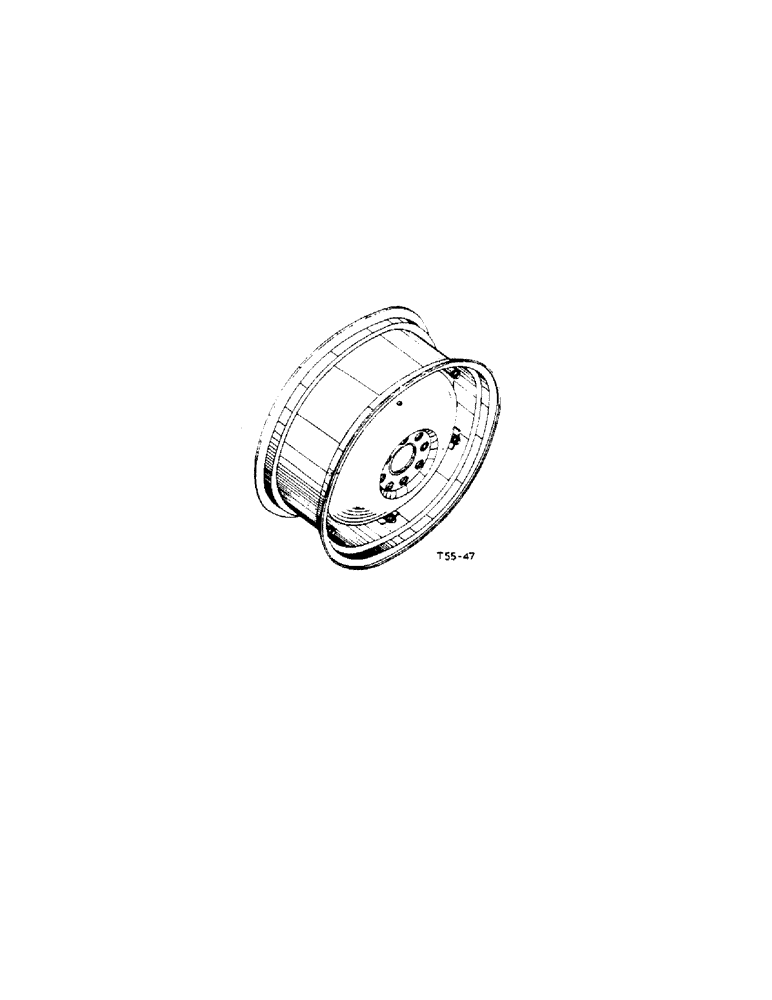

Запчасти Case IH 434 (4-33) - REAR WHEEL - CHASSIS (06) - POWER TRAIN

3048868R91

WHEEL ASSY.

RIM and DISC, cpte., rear wheel (11-28) opt.

2шт.

3042292R92

WHEEL ASSY

RIM and DISC, cpte., rear wheel (11-28) opt., comprising only 3042292R92

2шт.

3073908R1

BOLT

6шт.

3042290R1

DISC

1шт.

425-110

6шт.

707703R92

RIM

1шт.

703931R1

WASHER

6шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

rear wheel rim (Zinc-pltd.)

12шт.

3073908R1

BOLT

hex., 5/8" UNF (sq-nk.)

12шт.

3042290R1

DISC

rear wheel

2шт.

703930R2

NUT

rear wheel rim bolt (Zinc-pltd.)

12шт.

121358

YOKE

hex., 5/8" UNF (sq-nk., bolt)

12шт.

707703R92

RIM

cpte., rear wheel

2шт.

703931R1

WASHER

rear wheel rim bolt

12шт.
