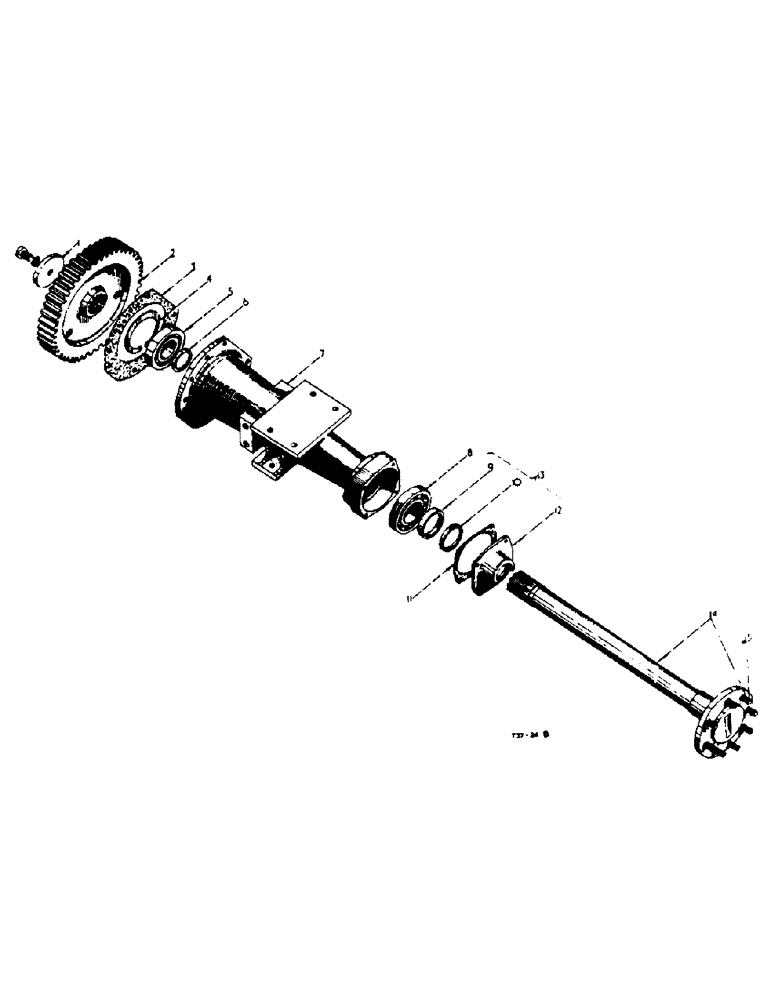

Запчасти Case IH 434 (4-32) - REAR AXLE - CHASSIS (06) - POWER TRAIN

1

709252R1

WASHER

retaining, bull gear

2шт.

271631

HYDRAULIC CYLINDER

BOLT, hex-hd., 3/4" UNF x 1-5/8"

2шт.

2

3069953R1

GEAR

bull, 48 teeth

2шт.

3

703913R3

GASKET,0.79mm Thk

rear axle carrier

2шт.

4

701067R1

RING

CIRCLIP bore, 130 mm

2шт.

5

3106877R91

BEARING

ball, rear axle, inner opt.

2шт.

5

3069356R91

BEARING, BALL

rear axle, inner opt.

2шт.

5

3069357R91

BEARING, BALL

rear axle, inner opt.

2шт.

5

3069358R91

BEARING

ball, rear axle, inner opt.

2шт.

5

3069359R91

BEARING, BALL

rear axle, inner opt.

2шт.

6

3043995R1

COLLAR

rear axle

2шт.

7

3043994R2

CARRIER

rear axle, R.H. (Illustrated)

1шт.

3043993R2

CARRIER

rear axle, L.H.

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

hex-hd., 1/2" x 1-3/8"

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

8

3069363R91

BEARING

ball, rear axle, outer optional

2шт.

8

3069360R91

BALL BEARING

BEARING, ball, rear axle, outer optional

2шт.

8

3069361R91

BALL BEARING

BEARING, ball, rear axle, outer optional

2шт.

8

3069362R91

BALL BEARING

BEARING, ball, rear axle, outer optional

2шт.

9

703917R92

OIL SEAL

oil, rear axle

2шт.

10

703915R1

WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk

felt, rear axle

2шт.

11

711197R1

GASKET

rear axle bearing retainer

2шт.

12

NSS

NOT SOLD SEPARAT

RETAINER, rear axle bearing (order 751398R11)

2шт.

13

751398R11

RETAINER

w/OIL SEAL 703917R92 and WASHER 703915R1 cpte., rear axle bearing optional

2шт.

13

703914R11

RETAINER

w/OIL SEAL 703917R92 and WASHER 703915R1 cpte., rear axle bearing optional

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

14

3110729R1

AXLE

rear

2шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

15

3047576R2

BOLT

rear wheel hub

16шт.

3042081R1

SHIM

bull gear

1шт.
