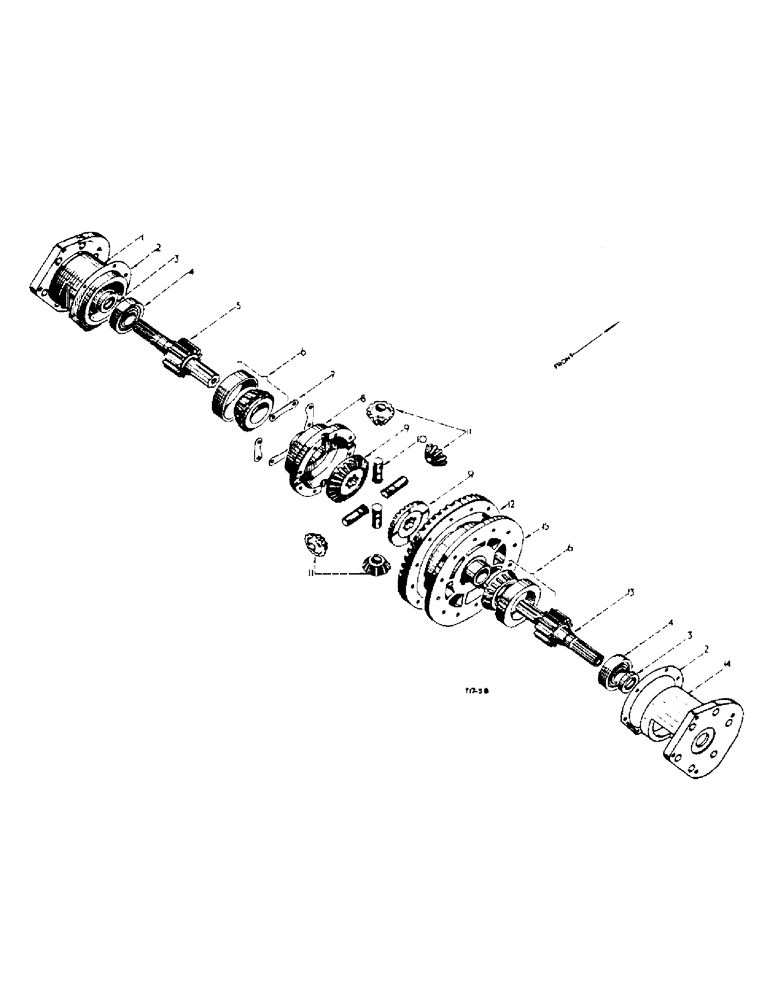

Запчасти Case IH 434 (4-27) - DIFFERENTIAL - CHASSIS (06) - POWER TRAIN

1

3064163R11

CAGE

w/OIL SEAL 703908R91 cpte., bearing bull pinion shaft L.H. up to 434/6258 Diesel and 434/864 Petrol

1шт.

3069426R1

BOLT (SPREADER)

BOLT, roll pin

1шт.

3049069R1

BOLT (SPREADER),Hex, 3/8" - 16

BOLT, bull pinion shaft bearing cage

5шт.

717547R1

LOCK PIN,M16 x 18, Slotted

PIN, roll

1шт.

3063971R1

WASHER

13/32" x 7/8" plain

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8" ext. tooth

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

1

3071401R11

CAGE

w/OIL SEAL 703908R92 cpte., bearing bull pinion shaft L.H. Diesel 434/6259 up and Petrol 434/865 up

1шт.

3071405R1

BOLT,Hex, 7/16" - 14 x 1.50"

roll pin

1шт.

3071403R1

BOLT,Hex, 7/16" - 14

bull pinion shaft bearing cage

5шт.

3071404R1

PIN

roll

1шт.

3071406R1

WASHER

roll pin bolt

1шт.

3070558R1

WASHER

bull pinion shaft bearing cage

5шт.

2

3071408R2

SHIM

bull pinion shaft bearing cage (light)

1шт.

2

3071409R2

SHIM

bull pinion shaft bearing cage (medium)

1шт.

2

3071410R2

SHIM

bull pinion shaft bearing cage (heavy)

1шт.

2

3071411R2

SHIM

bull pinion shaft bearing cage (extra heavy)

1шт.

3

703908R92

OIL SEAL

SEAL oil, bull pinion shaft opt.

2шт.

3

3043788R91

SEAL

oil, bull pinion shaft opt.

2шт.

4

3049082R91

BALL BEARING

ball, bull pinion shaft opt.

2шт.

4

3063502R91

BALL BEARING

BEARING, ball, bull pinion shaft opt.

2шт.

4

3063503R91

BALL BEARING

BEARING, ball, bull pinion shaft opt.

2шт.

5

3069954R1

SHAFT

L.H. bull pinion brake (13 T)

1шт.

6

3049255R91

BEARING

roller, differential opt.

2шт.

6

3044002R91

BEARING

roller, differential opt.

2шт.

7

705551R1

LOCK WASHER

lock

4шт.

8

NSS

NOT SOLD SEPARAT

CASE, differential (order 3043998R91)

1шт.

9

704215R1

GEAR

bevel, differential (24T)

2шт.

10

704707R1

AXLE DIFFERENTIAL

SHAFT, differential

4шт.

11

3109649R1

GEAR

PINION, differential

4шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

4шт.

12

NSS

NOT SOLD SEPARAT

GEAR, bevel, drive (order 3069966R91)

1шт.

13

3069955R1

SHAFT

R.H. bull pinion, brake (13T)

1шт.

14

3071402R11

CAGE

w/OIL SEAL 703908R92 cpte., bearing bull pinion shaft L.H. Diesel 434/6259 up, Petrol 434/865 up and 434NT/636 up

1шт.

3071403R1

BOLT,Hex, 7/16" - 14

bull pinion shaft brg. cage

5шт.

3071405R1

BOLT,Hex, 7/16" - 14 x 1.50"

roll pin

1шт.

3071404R1

PIN

roll

1шт.

3070558R1

WASHER

bull pinion shaft brg. cage

5шт.

3071406R1

WASHER

roll pin bolt

1шт.

14

3064164R11

CAGE

w/OIL SEAL 703908R91 cpte., bearing bull pinion shaft R.H. Diesel up to 434/6258, Petrol up to 434/864 and, Serial Range: up-434NT/635

1шт.

3069426R1

BOLT (SPREADER)

BOLT, bull pinion shaft bearing cage roll pin

5шт.

3049069R1

BOLT (SPREADER),Hex, 3/8" - 16

BOLT, roll pin

1шт.

717547R1

LOCK PIN,M16 x 18, Slotted

PIN, roll

1шт.

3063971R1

WASHER

13/32" x 7/8 plain

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8" ext. tooth

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

15

NSS

NOT SOLD SEPARAT

CASE, differential (order 3043998R91)

1шт.

3043998R91

DIFFERENTIAL

CASE, cpte., differential (two halves Ref. Nos, Serial Range: 8-15)

1шт.

NLS

NO LONGER SERVICED

8шт.

3042127R1

BOLT,Hex, 7/16" - 20 x 1 1/8"

drive bevel gear retaining

12шт.

114607

LOCK, Ext Tooth, 7/16"

12шт.

3071414R91

PACKAGE service, bearing cages and shims, comprising all parts listed below

1шт.

3071403R1

BOLT,Hex, 7/16" - 14

10шт.

3071405R1

BOLT,Hex, 7/16" - 14 x 1.50"

2шт.

3071401R11

CAGE

1шт.

3071402R11

CAGE

1шт.

3071404R1

PIN

2шт.

3071408R2

SHIM

6шт.

3071409R2

SHIM

6шт.

3071410R2

SHIM

6шт.

3071411R2

SHIM

6шт.

3070558R1

WASHER

10шт.

3071406R1

WASHER

2шт.
