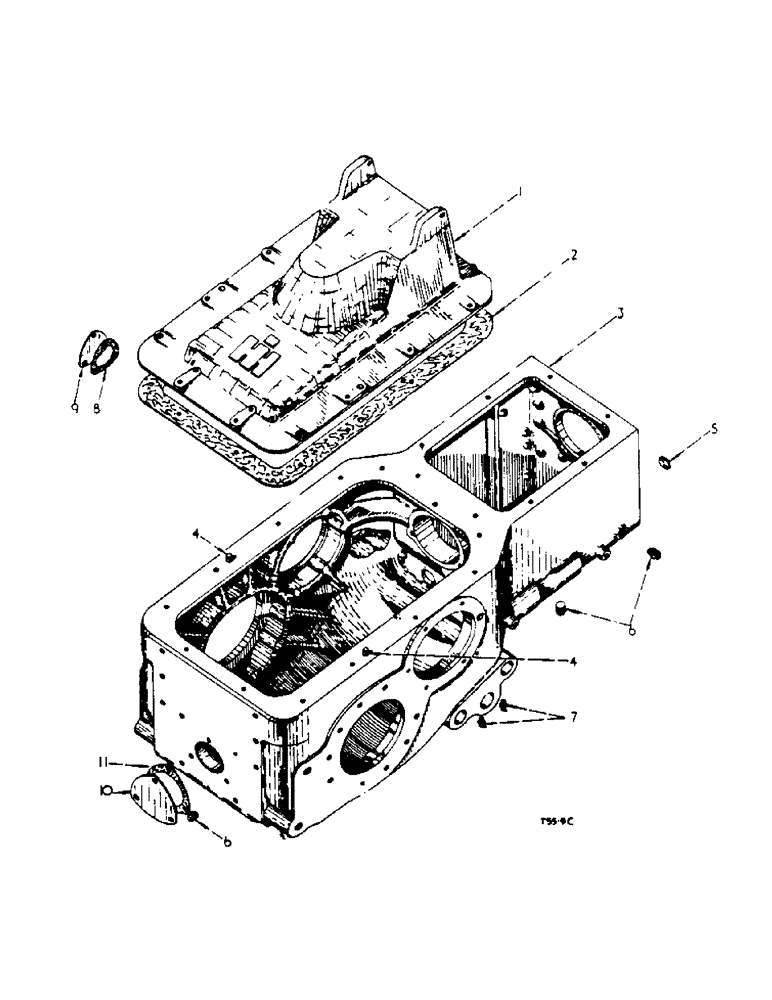

Запчасти Case IH 434 (4-26) - TRANSMISSION CASE - CHASSIS (06) - POWER TRAIN

1

703968R21

COVER, w/two PLUGS 112428 cpte., trans. case- rear

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex-hd.

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8" x 1-1/2" hex-hd., (for Reg. No. Plate)

2шт.

2

703967R2

GASKET

rear trans. case cover

1шт.

3

3072135R92

CASE

trans. cpte., 434P/1693 up, 434D/13299 up, 434NT/728 up, comprising

1шт.

3072136R1

BUSHING

1шт.

711272R2

BUSHING

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR

2шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

172575

PLUG,Exp, 1 9/16"

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG

3шт.

3

3064228R31

BOX

CASE, trans. cpte., up to 434P/1692, up to 434D/13298, up to 434NT/727, order 3072135R92 with shaft 3071849R1, comprising

1шт.

703966R1

BUSHING

1шт.

711272R2

BUSHING

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR

2шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

172575

PLUG,Exp, 1 9/16"

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG

3шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

172575

PLUG,Exp, 1 9/16"

1-9/16" expansion

1шт.

6

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2" sq-hd., pipe opt.

3шт.

6

444387

PLUG, 1/2" sq-hd., pipe opt.

3шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, 1/8" PT - 90 degree angle

2шт.

8

711312R1

GASKET

P.T.O. shifter shaft hole cover plate

1шт.

711272R2

BUSHING

rear, reverse gear

1шт.

3072136R1

BUSHING

front, reverse gear, 434P/1693 up, 434D/13299 up, 434NT/728 up

1шт.

703966R1

BUSHING

front, reverse gear, up to 434P/1692, up to 434D/13298, Serial Range: up-434NT/727

1шт.

9

711466R1

PLATE

P.T.O. shifter shaft hold cover

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

703972R1

PLATE

P.T.O. shaft opening cover

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

703971R1

GASKET

P.T.O. shaft opening

1шт.

112428

PLUG

cork, No. 0

2шт.

3071415R91

HOUSING

PACKAGE service, trans. case

1шт.

3071426R91

PACKAGE field improvement, for machines equipped with trans. case 3064228R21

1шт.
