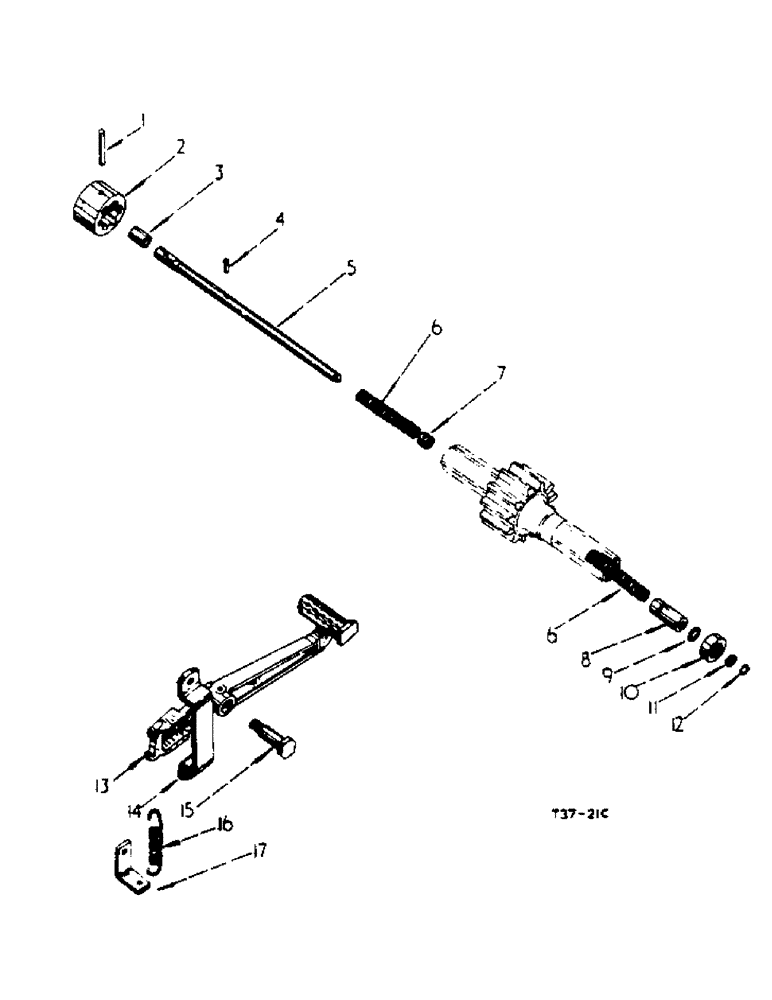

Запчасти Case IH 434 (4-25) - DIFFERENTIAL LOCK - CHASSIS (06) - POWER TRAIN

1

443050

PIN

5/16" x 2-1/2" type 3, groove

1шт.

2

704747R1

CLUTCH

differential lock

1шт.

3

704750R1

TUBE

DISTANCE PIECE, differential lock shaft

1шт.

4

141155

DOWEL,3/16" x 3/4"

PIN, dowel 3/16" x 3/4"

1шт.

5

708997R2

SHAFT

differential lock

1шт.

6

705233R1

SPRING

differential lock

2шт.

7

704749R1

COLLAR

differential lock shaft

1шт.

8

708996R1

RETAINER

O-ring, differential lock shaft

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16" x 7/8" x 3/32" (class 5) differential lock shaft, inner

1шт.

10

708998R91

SEAL

oil, differential lock shaft optional

1шт.

10

3066288R91

OIL SEAL

oil, differential lock shaft optional

1шт.

11

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2" x 11/16" x 3/32" (class 5) differential lock shaft, outer

1шт.

12

708999R1

RETAINER

CIRCLIP, external

1шт.

13

3066635R31

PEDAL

LEVER, w/PLATE 3066305R1 and two RIVET 104169 cpte., differential lock (Domestic)

1шт.

13

3070576R21

LEVER

differential lock (Export)

1шт.

14

704758R1

LARGE PLATE

PLATE, differential lock lever, thrust

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

7/16" x 1-1/8" hex-hd.

2шт.

W6652

WASHER

15/32" x 1" x 16 ga. plain

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

704757R1

BOLT

differential lock, pivot

1шт.

615167R1

WASHER

25/32" x 1-3/16" x 16 ga. plain

2шт.

16

704759R2

SPRING

differential lock lever, return (Export)

1шт.

17

3064165R1

PLATE

differential lock lever return spring, anchor (Export)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT (Differential lock lever) 1/8"-27 x .66 lg

1шт.

3066305R1

CAM

PLATE, differential lock pedal cam

1шт.

104169

RIVET, 1/4" x 1" csk-hd., solid

2шт.
