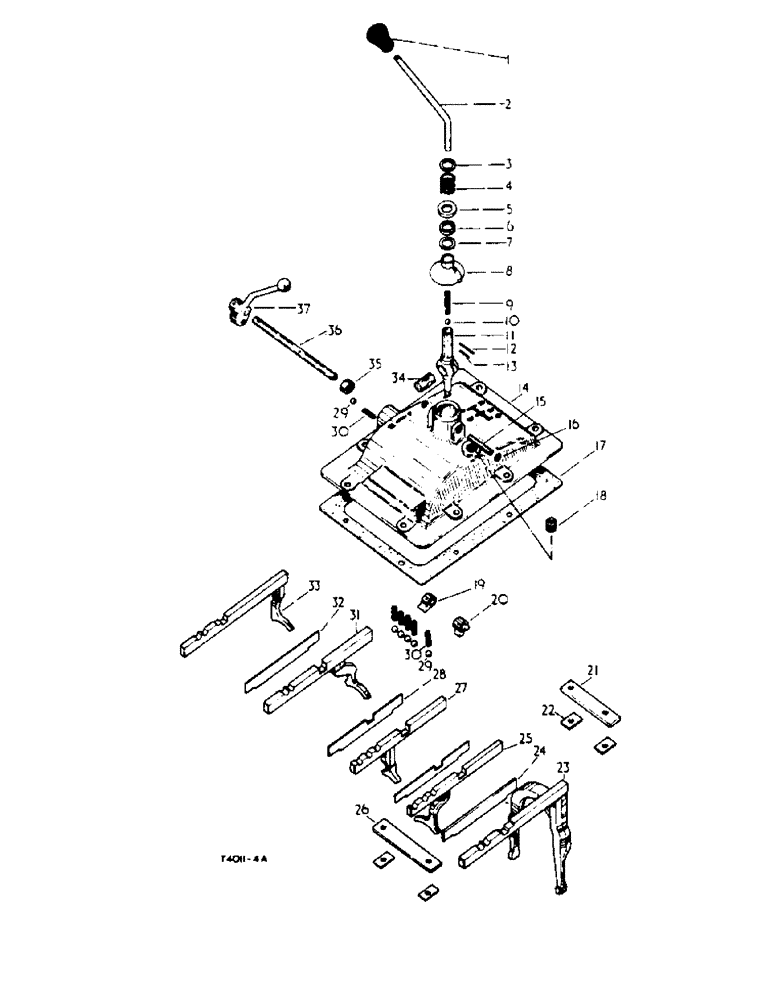

Запчасти Case IH 434 (4-24) - GEAR SHIFTER MECHANISM ANDTRANSMISSION CASE COVER, FRONT - CHASSIS (06) - POWER TRAIN

1

3109443R1

BALL

gear shifter lever

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER, gear shifter hand (ORDER 3106909R92) 434D/20874 up

1шт.

Includes: 434NT Pet/513 up, 434NT Die/903 up, 434P/2404 up, 434HV/520 up

1шт.

2

704041R91

LEVER

cpte., gear shifter hand, order package 3107578R91

1шт.

108644

SEAT

cotter, 3/16" x 1-3/8", Serial Range: up-434D/20873

1шт.

Includes: up to 434NT Pet/512, up to 434NT Die/902, up to 434P/2403, up to 434 HV/519

1шт.

3

710953R1

STOP

spring, gear shifter lever

1шт.

4

3106665R1

SPRING

gear shifter lever 434D/20874 up

1шт.

Includes: 434NT Pet/513 up, 434NT Die/903 up, 434P/2404 up, 434HV/520 up

1шт.

4

29547D

SPRING

gear shifter lever, Serial Range: up-434D/20873

1шт.

Includes: up to 434NT Pet/512, up to 434NT Die/902, up to 434P/2403, up to 434 HV/519

1шт.

5

34880D

RETAINER

felt washer, gear shifter lever

1шт.

6

34879D

WASHER

felt, gear shifter lever

1шт.

7

615190R1

WASHER

29/32" x 1-3/8" x 16 ga.

1шт.

8

712626R1

SHIELD

gear shifter swivel housing

1шт.

9

3068944R1

SPRING

gear shift ball

1шт.

10

216014R1

BALL, 7/16" dia

1шт.

11

NSS

NOT SOLD SEPARAT

END, gear shifter lever (ORDER 3106909R92)

1шт.

12

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

13

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

14

3044047R4

COVER

trans. case front

1шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

3106664R1

SHAFT

swivel, gear shifter lever, small 434D/20874 up

1шт.

Includes: 434NT Pet/513 up, 434NT Die/903 up, 434P/2404 up, 434HV/520 up

1шт.

15

34878D

SHAFT

swivel, gear shifter lever, small, Serial Range: up-434D/20873

1шт.

Includes: up to 434NT Pet/512, up to 434NT Die/902, up to 434P/2403, up to 434 HV/519

1шт.

16

172529

PLUG

expansion, gear shifter lever swivel, small

2шт.

17

703969R1

GASKET

transmission case cover - front

1шт.

18

217-442

PLUG,3/4" - 14

pipe, 3/4" optional

1шт.

18

NLS

NO LONGER SERVICED

pipe, 3/4" optional

1шт.

18

217-442

PLUG,3/4" - 14

pipe, 3/4" optional

1шт.

19

751090R2

CAM

high low range shifter

1шт.

188943

DOWEL

PIN, groove, type 5, 3/16" x 1-1/8"

1шт.

20

751851R3

CAM

low speed gear shifter

1шт.

142508

DRIVE BUSHING

groove, type 5, 3/16" x 1-1/4"

1шт.

21

751085R1

BRACKET

gear shifter fork & guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

59473DA

LOCK

bolt, gear shifter rail guide

4шт.

23

3040867R31

SHIFTER FORK

FORK, low speed shifter, cpte.

1шт.

24

704039R2

GUIDE

gear shifter, R.H.

1шт.

25

751101R21

SHIFTER FORK

FORK, 1st & reverse speed gear shifter cpte.

1шт.

26

3044010R1

GUIDE

BRACKET, gear shifter fork and guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

751104R91

SHIFTER FORK

FORK, 2nd & 3rd speed gear shifter, cpte.

1шт.

28

704038R1

GUIDE

gear shifter rail, inner

2шт.

29

16013R1

BALL

steel, (13/16" dia. chrome grade 2)

6шт.

30

711283R1

SPRING

gear shifter poppet

6шт.

31

751100R11

SHIFTER FORK

FORK, 4th speed gear shifter, cpte.

1шт.

32

705926R1

GUIDE

gear shifter rail, L.H.

1шт.

33

751094R41

SHIFTER FORK

FORK, high speed shifter, cpte.

1шт.

34

3106662R1

SHAFT

swivel, gear shifter lever, large, 434/20874 up

1шт.

Includes: 434NT Pet/513 up, 434NT Die/903 up, 434P/2404 up, 434HV/520 up

1шт.

34

705560R1

SHAFT, swivel, gear shifter lever, large, Serial Range: up-434/20873

1шт.

Includes: up to 434NT Pet/512, up to 434NT Die/902, up to 434P/2403, up to 434 HV/519

1шт.

35

751086R91

SEAL ASSY.

SEAL oil, high low range shifter shaft opt.

1шт.

35

751087R91

SEAL

oil, high low range shifter shaft opt.

1шт.

36

751088R2

SHAFT

shifter, high low range

1шт.

37

751089R2

HANDLE

shifter, high low range

1шт.

142521

HYD TUBE

Pin, Grooved, 1/4" x 1 1/4", Type A

1шт.

3109909R92

LEVER, assy., gear shifter hand, comprising

1шт.

NSS

NOT SOLD SEPARAT

END

1шт.

NSS

NOT SOLD SEPARAT

LEVER

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

3107578R91

STRIPPER PACKAGE

PACKAGE gear shifter lever, comprising all parts listed below

1шт.

3074052R1

BALL

1шт.

3109909R92

LEVER

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

3106662R1

SHAFT

1шт.

3106664R1

SHAFT

1шт.

3068944R1

SPRING

1шт.

3106665R1

SPRING

1шт.
