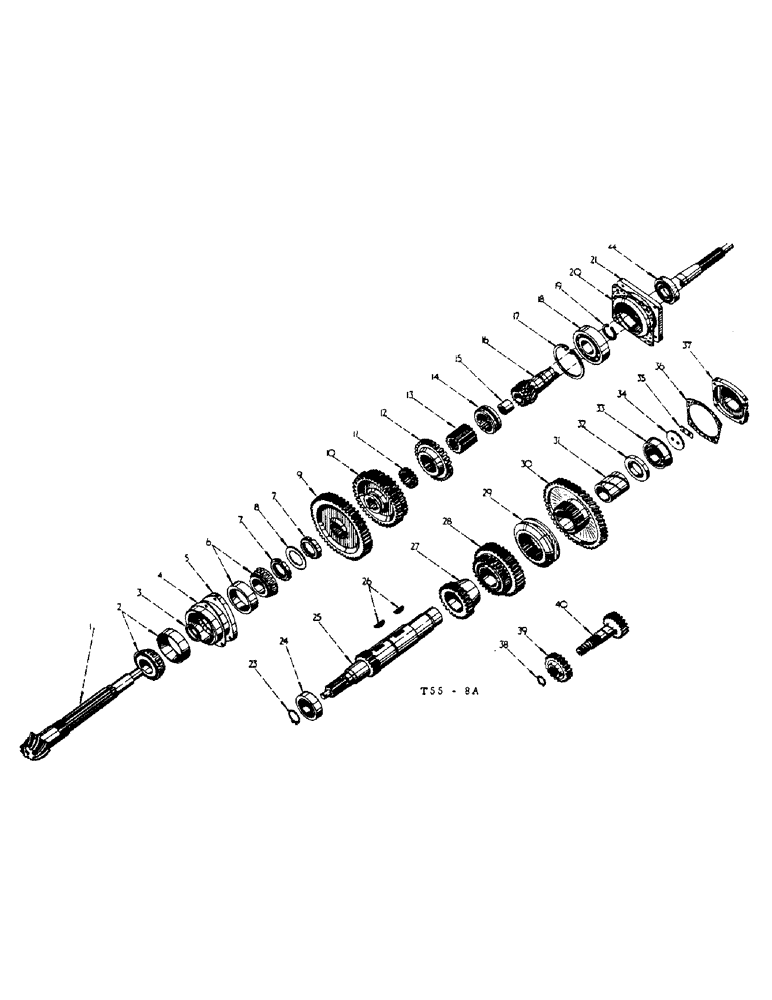

Запчасти Case IH 434 (4-22) - TRANSMISSION GEARS AND SHAFTS - CHASSIS (06) - POWER TRAIN

1

SHAFT, trans. spline (order 3069966R91)

1шт.

2

3049253R91

BEARING

roller taper, trans. spline shaft, rear (Skefco) optional

1шт.

2

3044034R91

BEARING

roller taper, trans. spline shaft, rear (Timken) optional

1шт.

3

3044037R1

SPACER

trans. spline shaft roller bearing

1шт.

3044038R1

SHIM

trans. spline shaft taper roller bearing (.002)

1шт.

3044040R1

SHIM

trans. spline shaft taper roller bearing (.004)

1шт.

3044039R1

SHIM

trans. spline shaft taper roller bearing (.010)

1шт.

4

704008R1

SHIM

trans. spline shaft taper bearing cage, (heavy)

1шт.

4

704009R1

SHIM

trans. spline shaft taper bearing cage (medium)

1шт.

4

704010R1

SHIM

trans. spline shaft taper bearing cage (light)

1шт.

5

3044041R1

CAGE

trans. spline shaft taper roller bearing

1шт.

186334

BOLT, hex-hd., 1/2" UNF x 2-5/8"

3шт.

25-118

NUT,1/2"-20, G5

hex., 1/2" UNF

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

6

3049254R91

BEARING

roller, taper, trans. spline shaft front (Skefco) optional

1шт.

6

321990R91

BEARING

roller, taper, trans. spline shaft front (Timken) optional

1шт.

7

3044035R1

BEARING LOCK NUT

lock trans. spline shaft, taper roller bearing

2шт.

8

3044036R1

LOCK WASHER

lock, trans. spline shaft taper roller bearing, lock nut

1шт.

9

3043990R1

GEAR

sliding, 1st and reverse speed (52 T)

1шт.

10

751071R1

GEAR

sliding, 2nd and 3rd speed (44 and 38 T)

1шт.

11

751073R2

GEAR

coupling, 4th and direct speed

1шт.

12

751072R3

SPLINED COUPLING

GEAR, coupling, sliding, 4th and direct speed (31 T)

1шт.

13

3069962R11

GEAR

w/two BEARING 3069963R91 cpte., sliding quill

1шт.

14

751076R3

COUPLING, BREAK AWAY

COUPLING, sliding gear

1шт.

15

3069773R91

NEEDLE BEARING

BEARING, pilot, trans. spline shaft optional

1шт.

15

321981R91

NEEDLE BEARING

pilot, trans. spline shaft optional

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

pilot brg.

1шт.

16

3069967R1

SHAFT

trans. driving

1шт.

17

751081R1

CLIP

CIRCLIP, trans. driving shaft bearing retaining

1шт.

18

700523R91

BEARING, BALL

BEARING, trans. driving shaft (R & M ) optional

1шт.

18

700521R91

BALL BEARING

BEARING, trans. driving shaft (Fischer) optional

1шт.

18

49533H

BEARING, BALL

BEARING, trans. driving shaft (S.K.F.) optional

1шт.

18

704768R92

BALL BEARING

BEARING, trans. driving shaft (Hoffman) optional

1шт.

19

751146R1

RING

CIRCLIP, trans. driving shaft, bearing retaining

1шт.

20

704017R1

GASKET

trans. driving shaft, bearing cage

1шт.

21

751181R1

CAGE

trans. driving shaft bearing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

751080R91

SEAL

oil, trans. driving shaft optional

1шт.

22

3066617R91

SEAL

oil, trans. driving shaft optional

1шт.

22

3049150R91

SEAL

oil, trans. driving shaft optional

1шт.

23

703984R1

SNAP RING

CIRCLIP, trans. countershaft, rear ball, bearing retainer

1шт.

24

700524R91

BALL BEARING

BEARING, ball, trans. countershaft, rear (Fischer) optional

1шт.

24

294714R91

BALL BEARING

BEARING, ball, trans. countershaft, rear (S.K.F.) optional

1шт.

24

700526R91

BEARING, BALL

trans. countershaft, rear (R & M) optional

1шт.

24

704772R92

BEARING, BALL

trans. countershaft, rear (Hoffman) optional

1шт.

25

3043987R1

COUNTERSHAFT

trans. and 1st speed gear

1шт.

26

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

27

751054R1

GEAR

driving, 2nd speed (26T)

1шт.

28

751055R3

GEAR

driving, 3rd and 4th speed (32 and 39 teeth)

1шт.

29

3040868R3

SPLINED COUPLING

COUPLING, sliding gear

1шт.

30

3043988R2

GEAR

constant mesh

1шт.

31

751056R1

BUSHING

BUSH, cast iron

1шт.

32

751059R1

SPACER

countershaft

1шт.

33

751060R91

CRANKSHAFT BEARING

BEARING, ball, countershaft front (R & M ) optional

1шт.

33

3063612R91

BEARING

ball, countershaft front (Hoffman) optional

1шт.

34

751120R2

WASHER

retaining, trans. countershaft

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

35

751441R1

SHIM

LOCKPLATE, trans. countershaft

1шт.

36

751061R1

GASKET

countershaft, front ball bearing

1шт.

37

751062R1

RETAINER

countershaft front ball bearing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

515440R1

SNAP RING,#98, Ext

CIRCLIP, ext., 25 mm 434D/26896 up

1шт.

Including 434P/2951 up, 434 Hi-way/543 up, 434NT D/1169 up, 434NT P/521 up

1шт.

3110755R1

WASHER

reverse idler 434D/26896 up

1шт.

Including 434P/2951 up, 434 Hi-way/543 up, 434NT D/1169 up, 434NT P/521 up

1шт.

38

704029R1

RING

CIRCLIP, ext., Seeger, Serial Range: up-434D/26895

1шт.

Including up to 434P/2950, up to 434 Hi-way/542, up to 434NT D/1168, up to 434NT P/520

1шт.

Q319

WASHER, 1-1/64" x 1-35/64" x 12 ga., Serial Range: up-434D/26895

1шт.

Including up to 434P/2950, up to 434 Hi-way/542, up to 434NT D/1168, up to 434NT P/520

1шт.

39

3043991R1

GEAR

driving, reversible idler, 21 teeth

1шт.

40

3071849R2

SHAFT

and GEAR, reverse idler 434D/13299 up

1шт.

On orders for SHAFT and GEAR 3071849R1 furnish R2 w/ CIRCLIP 515440R1 and WASHER 3110755R1

1шт.

Including 434P/1693 up, 434NT/728 up

1шт.

40

751082R2

GEAR

SHAFT and GEAR, reverse idler (20T), Serial Range: up-434D/13298

1шт.

Including up to 434P/1672, up to 434NT/727

1шт.

3069963R91

BEARING

needle

2шт.

3061828R94

NO LONGER SERVICED

PACKAGE service, coupling, comprising:

1шт.

3040868R3

SPLINED COUPLING

COUPLING

1шт.

3040867R32

SHIFTER FORK

FORK

1шт.

3043988R2

GEAR

1шт.

751655R3

GEAR

1шт.

751073R2

GEAR

1шт.

3069966R91

SHAFT

PACKAGE, trans. spline and drive bevel gear

1шт.
