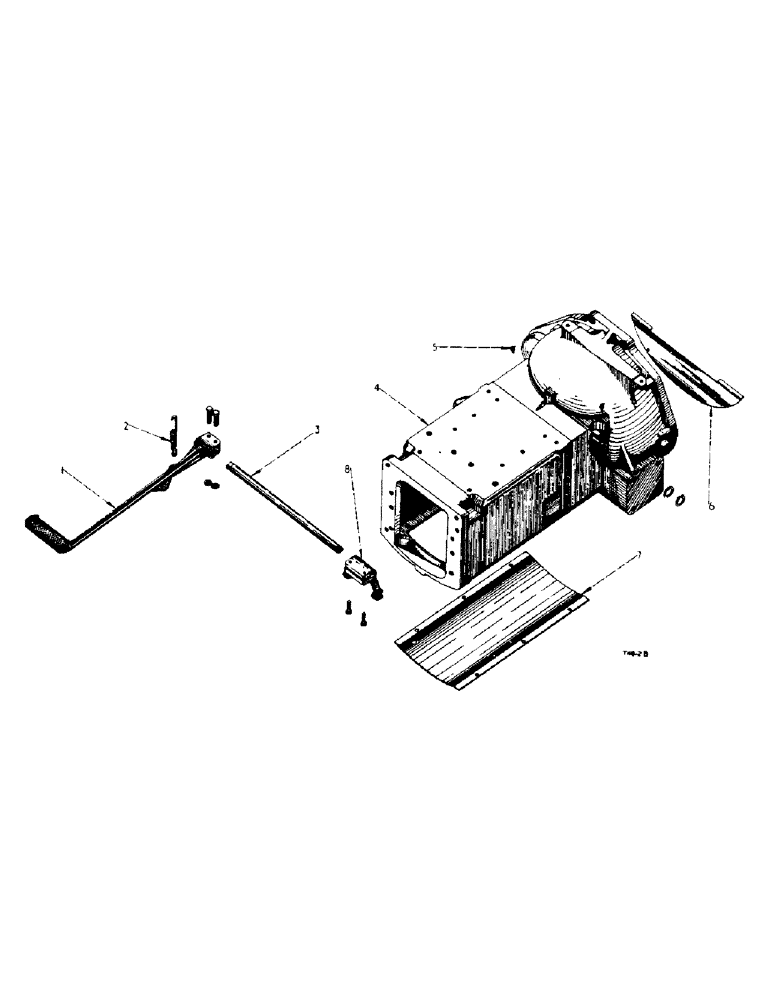

Запчасти Case IH 434 (4-21) - CLUTCH HOUSING AND CONNECTIONS - CHASSIS (06) - POWER TRAIN

1

751050R2

PEDAL

clutch

1шт.

751399R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Full Thd

clutch pedal

1шт.

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

hex-hd., 3/8" UNF x 2"

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

751872R1

NUT

hex., 3/8" UNF

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49405H

WASHER

spacing, clutch pedal

2шт.

2

705252R3

SPRING

clutch pedal return

1шт.

3

3071270R1

SHAFT

clutch release

1шт.

3045166R1

RING

CIRCLIP, ext. type 1400 434/3838 up

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), , Up to 434/3837 1/8" x 1 1/8"

1шт.

49405H

WASHER

plain, 27/32" x 1-1/4" x 16

1шт.

4

3044011R12

HOUSING

w/two LUBRICATORS 109462, three BOLT 271550 and three WASHER 103325 cpte., clutch

1шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

hex-hd., 1/2" x 1-7/8"

7шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex-hd., 1/2" x 1-1/2"

8шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

115591

WASHER, lock, internal tooth 1/2"

15шт.

751443R1

PIN

DOWEL, clutch housing

2шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, angle, 1/8" P.T., 90 degree, optional

2шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, angle, 1/8" P.T., 90 degree, optional

2шт.

6

703957R11

COVER

w/STRIP 3068216R1 clutch housing, dust

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

708652R1

COVER

clutch housing, hand hole

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

751049R1

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

271550

BOLT, hex-hd., 5/8" x 5/8"

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3047229R1

WASHER

KEY, shaft, clutch release

1шт.

3068217R91

PACKAGE, field improvement, clutch housing dust cover

1шт.

443090

STUD

drive, No. 6 x 3/8 long, grooved (used w/tractor serial number plate)

4шт.

3068216R1

SEAL

clutch housing dust cover sealing

1шт.

3068214R1

STRIP

clutch housing hand hole sealing

1шт.
