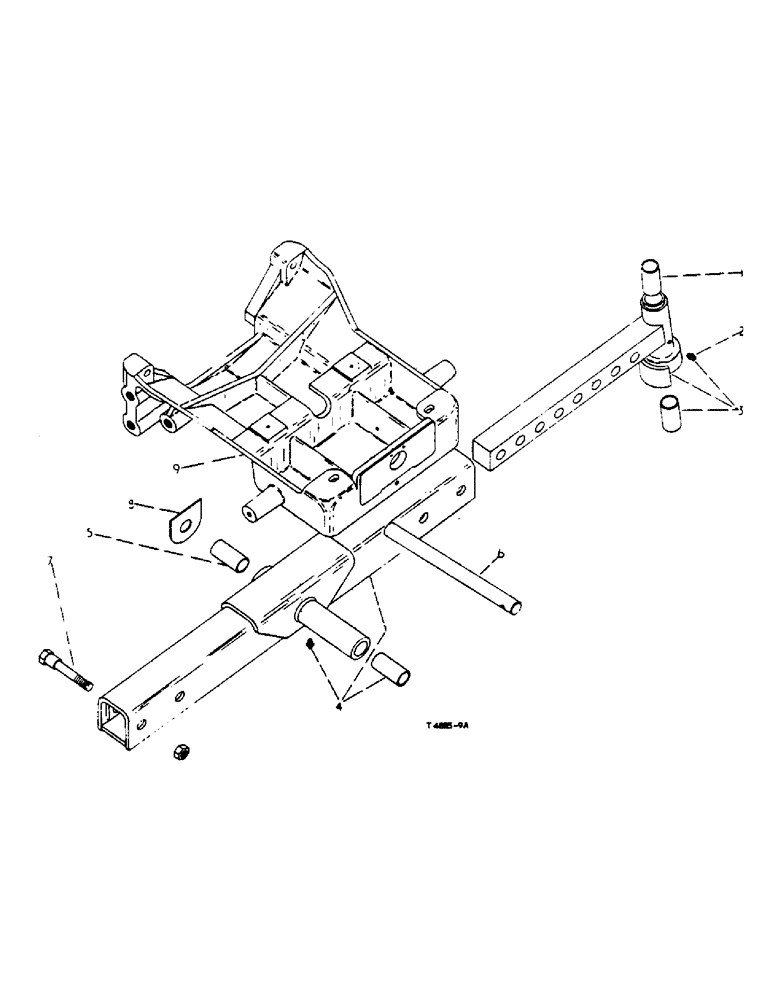

Запчасти Case IH 434 (4-19) - FRONT AXLE - CHASSIS (06) - POWER TRAIN

1

40090D

BUSHING

BUSH, steering knuckle pivot

4шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, Optional 1/8"-27 x .66 lg

3шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

3шт.

3

3043858R91

EXTENSION

w/two BUSHES 40090D and LUBRICATOR 109461 cpte., front axle L.H. (Illustrated)

1шт.

3

3043859R91

EXTENSION

w/two BUSHES 40090D and LUBRICATOR 109461 cpte., front axle R.H.

1шт.

4

3043850R91

AXLE

w/two BUSHES 3043856R1 and LUBRICATOR 109461 cpte., front

1шт.

5

3043856R1

BUSHING

BUSH, pivot pin front axle

2шт.

6

3043857R1

PIN

front axle pivot

1шт.

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

3/8" x 6-1/2" hex-hd.

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

3072766R11

BOLT

front axle extension opt.

4шт.

3043863R1

BOLT (SPREADER)

BOLT, front axle extension opt.

4шт.

218197

NUT,3/4"-16, G5

3/4" UNF hex.

4шт.

3072077R1

PIECE, distance

4шт.

8

706151R2

SHIM

front axle pin sleeve (.036)

1шт.

9

3070390R1

SUPPORT

front axle

1шт.

20727R2

BOLT, 5/8" x 3" hex-hd.

2шт.

3043876R1

BOLT, 5/8" x 3-1/4" hex-hd.

1шт.

3043874R1

BOLT (SPREADER),Hex, 5/8" - 11 x 2 3/4"

BOLT, 5/8" x 2-3/4" hex-hd.

1шт.

706155R1

SHIM, front axle pivot pin sleeve ( 47 swg)

1шт.

3044674R1

SHIM

front axle pivot pin sleeve (.028)

1шт.

706152R1

SHIM

front axle pivot pin sleeve (33 swg)

1шт.

706153R1

SHIM, front axle pivot pin sleeve (40 swg)

1шт.

706154R1

SHIM, front axle pivot pin sleeve (44 swg)

1шт.

706151R1

SHIM

front axle pivot pin sleeve (.306)

1шт.
