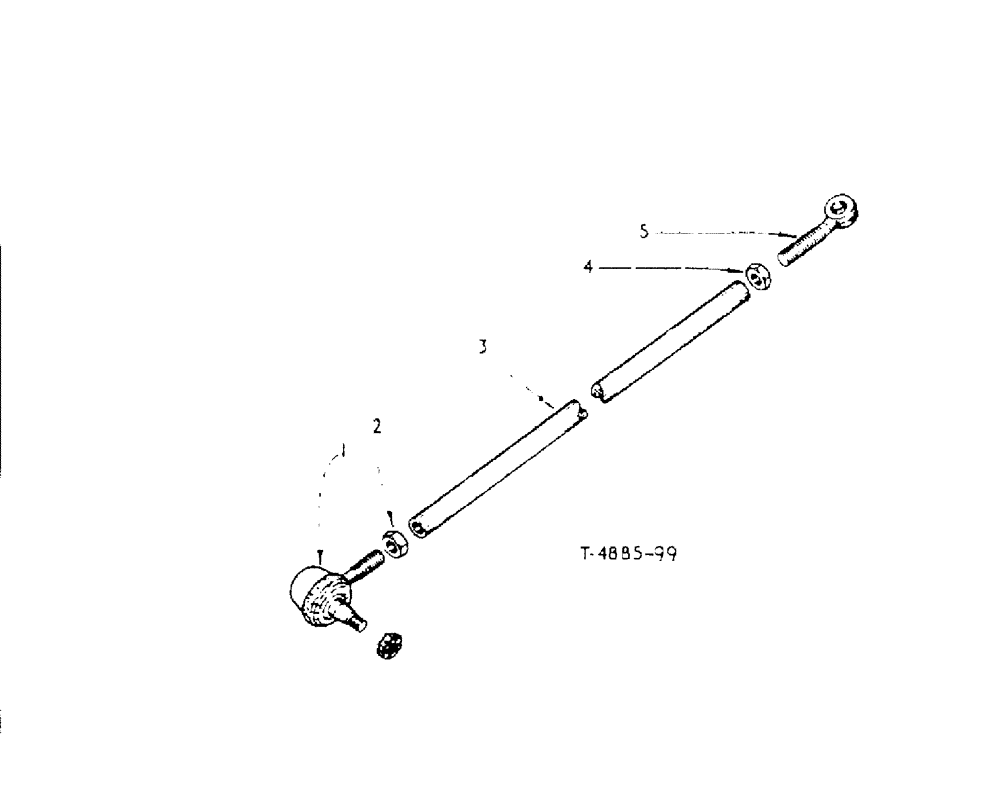

Запчасти Case IH 434 (6-094[1]) - POWER STEERING AND FRONT AXLE ATTACHMENT, DRAG LINK ASSEMBLY - ATTACHMENTS (05) - STEERING

3105265R91

LINK

DRAG LINK assy., w/two LUBRICATOR 110146R91, comprising: Ref. 1 - 5

1шт.

1

3040921R92

KNEE JOINT

END, drag link L.H. thread

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

3041065R1

WASHER

boot

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

2

705247R1

NUT

lock, L.H. thread

1шт.

3

3070992R1

TUBE

SECTION, drag link center

1шт.

4

705248R1

NUT

lock L.H. thread

1шт.

5

3070991R1

END

drag link

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.
