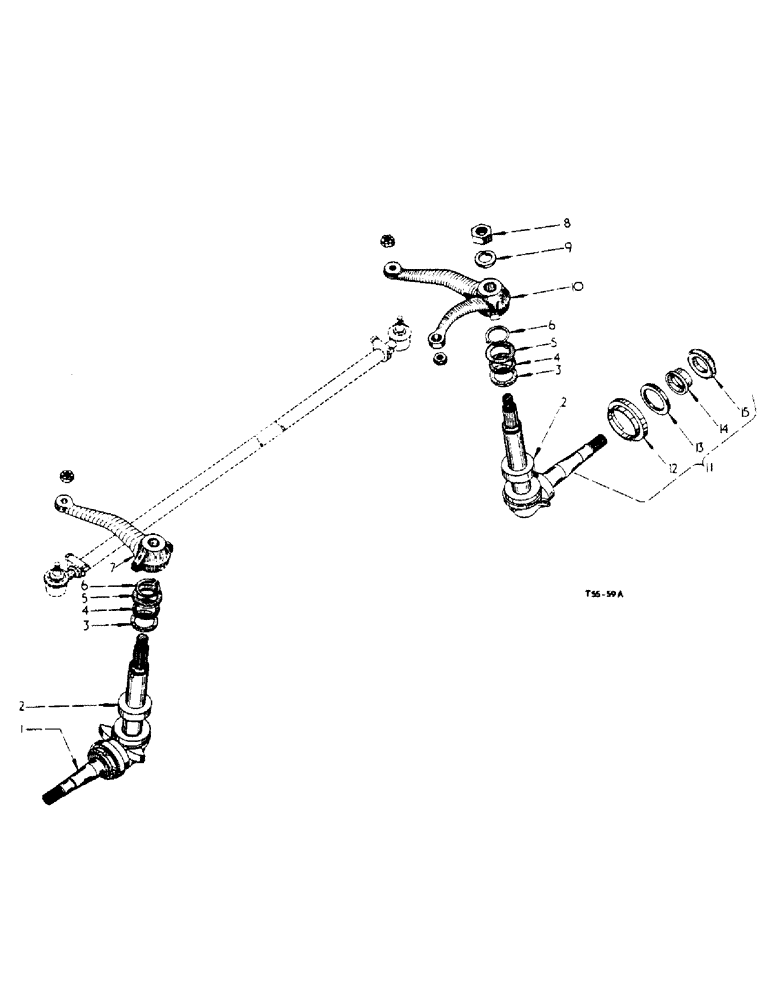

Запчасти Case IH 434 (6-046) - STEERING KNUCKLES AND TIE ROD - ATTACHMENTS (05) - STEERING

1

3043928R93

STEERING KNUCKLE

KNUCKLE cpte., steering, R.H., comprising

1шт.

48539D

SEAL oil

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER

1шт.

2

751947R91

BEARING

thrust, steering knuckle

2шт.

3

3043931R1

WASHER

felt

1шт.

4

3043932R1

WASHER

steering knuckle pivot

1шт.

5

3043933R1

WASHER

steering knuckle pivot retaining

1шт.

6

3043934R1

CIRCLIP

(41 mm shaft size)

1шт.

7

3043936R1

ARM

steering, R.H.

1шт.

8

3043937R1

NUT

1" UNF, jam, hex.

1шт.

9

121326

WASHER,1"

LOCK, 1"

1шт.

10

3043935R1

ARM

steering, L.H.

1шт.

11

3043927R93

STEERING KNUCKLE

KNUCKLE, cpte., L.H. steering, comprising

1шт.

48539D

SEAL oil

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER

1шт.

12

48541D

SHIELD

front wheel, dust

1шт.

13

50259D

WASHER

WASHER, front wheel, felt

1шт.

14

50270D

SPACER

front wheel, bearing

1шт.

15

48539DA

PACKING RING

SEAL oil, front wheel, optional

1шт.

3042600R91

RH DOOR LOCK

SEAL oil, front wheel, optional

1шт.

704083R92

OIL SEAL

SEAL oil, front wheel, optional

1шт.
