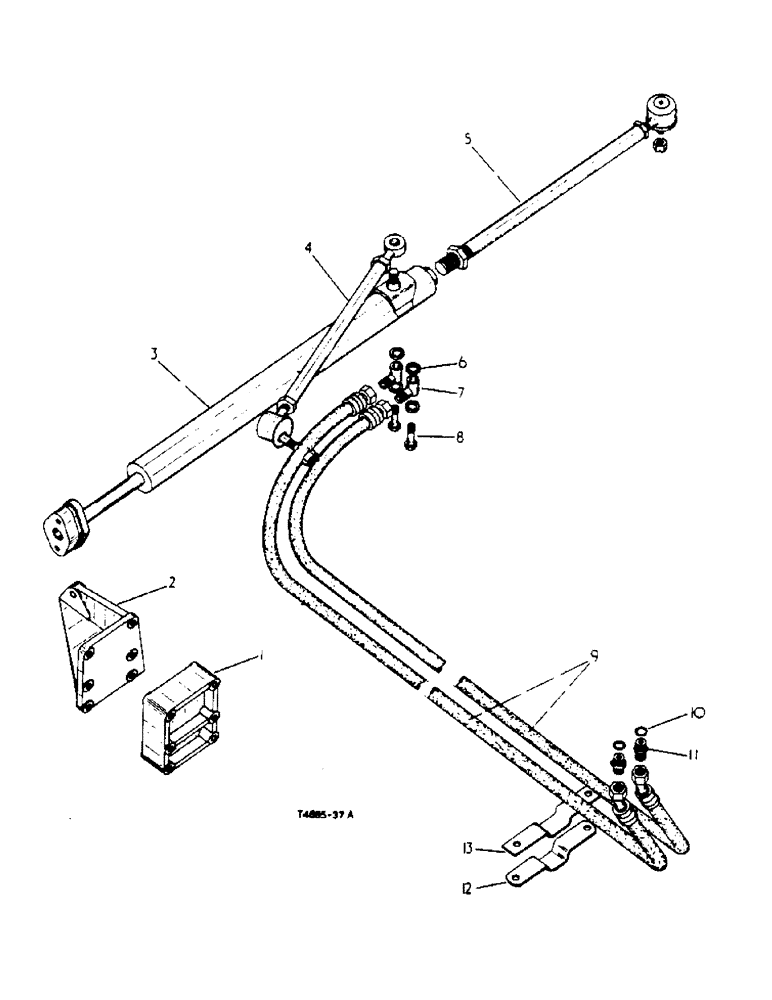

Запчасти Case IH 434 (6-041) - POWER STEERING, BOOSTER AND HOSES - ATTACHMENTS (05) - STEERING

ATTACHMENT power assisted steering (Factory application)

1шт.

These Attachments cannot be used with Narrow Tread tractors, Fixed Front Axle, Mower Drive Attach, Standard Hydraulic Lift Attach or Extra High Clear Attach.

1шт.

3070909R91

ATTACHMENT power assisted steering (for machines w/Stay Rod)

1шт.

These Attachments cannot be used with Narrow Tread tractors, Fixed Front Axle, Mower Drive Attach, Standard Hydraulic Lift Attach or Extra High Clear Attach.

1шт.

3070910R91

ATTACHMENT power assisted steering

1шт.

These Attachments cannot be used with Narrow Tread tractors, Fixed Front Axle, Mower Drive Attach, Standard Hydraulic Lift Attach or Extra High Clear Attach.

1шт.

1

3070921R91

SPACER, reaction bracket

1шт.

2

3043954R1

BRACKET

reaction

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8" x 3-1/4" hex-hd.

3шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8" x 3-1/2" hex-hd.

2шт.

141244

PIN

DOWEL, 3/8" x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

3043938R92

STEERING CYLINDER

BOOSTER, w/ADAPTOR cpte., steering (see Figure 6-042)

1шт.

4

3105265R91

LINK

cpte., drag w/two LUBRICATORS 110146R91 (see detail list)

1шт.

5

3070916R91

LINK

cpte., connecting (See detail list)

1шт.

6

WASHER (see Figure 6-042)

6шт.

7

BANJO, (see Figure 6-042)

2шт.

8

BOLT, banjo (see Figure 6-042)

2шт.

9

3043978R91

HOSE

, Serial Range: valve-booster

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

class 4

2шт.

11

3063920R1

ADAPTER

ADAPTOR

2шт.

12

3043979R2

BRACKET

hose

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

3043980R2

INSERT

rubber

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.
