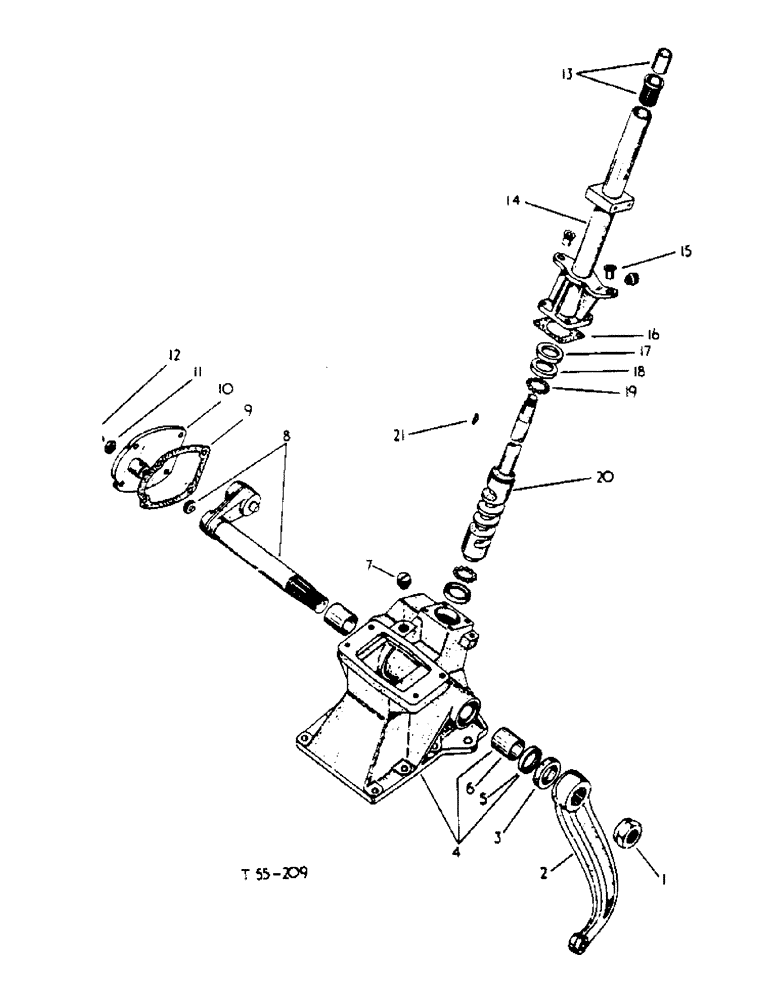

Запчасти Case IH 434 (4-16) - STEERING ASSEMBLY - CHASSIS (05) - STEERING

3070228R92

GEAR

BOX, w/Drop Arm, assy., steering, comprising: Ref. 1 - 21

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

7/16" x 1-3/8" hex-hd.

4шт.

NLS

NO LONGER SERVICED

DOWEL, 1/2" x 1-1/4"

2шт.

102639

NUT,5/8"-11, G5

1шт.

3070439R1

STUD, steering gear

1шт.

115550

LOCK WASHER,Int Tooth, 7/16"

WASHER, 7/16" lock, comprising:

4шт.

1

219776

RING

1-1/8" hex. lock

1шт.

118027

SCREW,1 1/8"

1-1/8" lock

1шт.

2

3070436R1

ARM

drop

1шт.

3

3040029R1

RING

Rubazate

1шт.

4

3070433R91

BOX, assy., steering

1шт.

5

3066267R91

OIL SEAL

steering box oil

1шт.

6

3040019R1

BUSHING

BUSH, steering box

2шт.

7

787168R1

PLUG

oil

2шт.

8

3070438R91

SHAFT

assy., rocker

1шт.

9

787162R1

GASKET

side cover

1шт.

10

787161R11

COVER

assy. side

1шт.

11

3066262R1

LOCK NUT

lock

1шт.

12

787163R1

SCREW

thrust

1шт.

13

3070030R91

BUSHING

BUSH, assy., top end

1шт.

14

3070417R91

TUBE

assy., socket and bracket outer

1шт.

15

3070434R1

BUSHING

BUSH, nylon

2шт.

16

3044606R1

GASKET

JOINT

1шт.

708619R1

SHIM

.005

1шт.

708623R1

SHIM

.010

1шт.

708618R1

SHIM

.0024

1шт.

17

787165R1

SPACER

1шт.

18

787167R1

RING RACE

CUP, ball

2шт.

19

3072885R1

BALL,1/4" Dia

. 1/4" Dia

34шт.

20

3070435R91

SHAFT

assy., cam and steering

1шт.

21

106751

KEY

No. 90 Woodruff

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

4шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.
