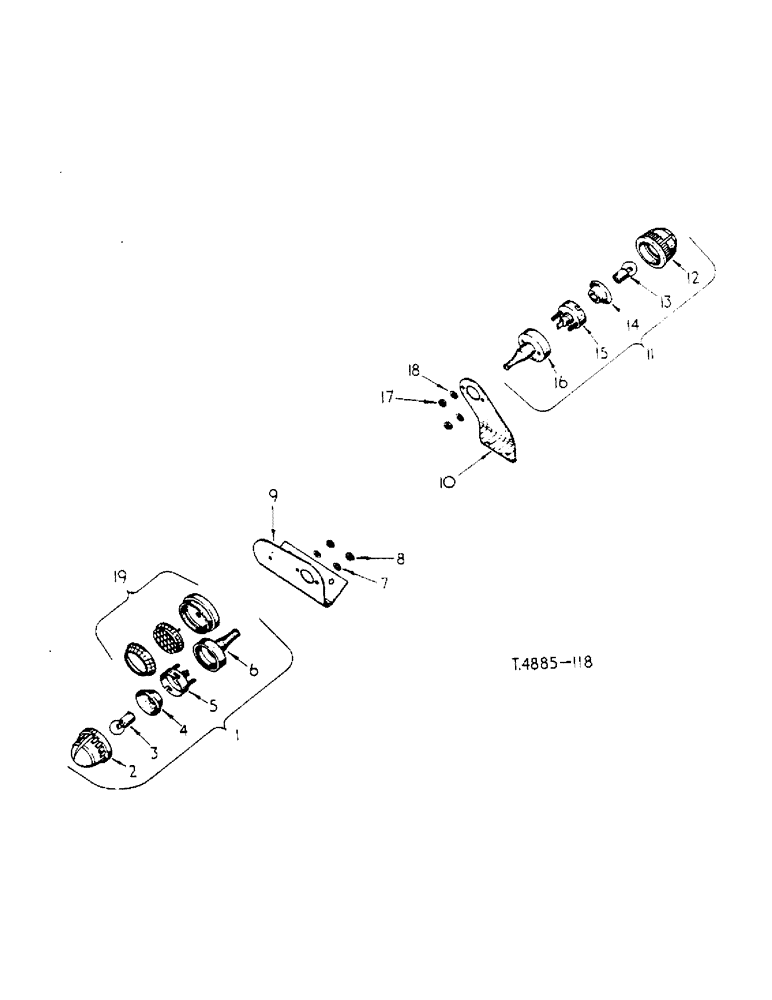

Запчасти Case IH 434 (7-22) - LAMPS, SIDE AND REAR, HI-CLEAR - HIGH CLEARANCE (04) - ELECTRICAL SYSTEMS

1

3042099R91

INTERIOR LIGHT

LAMP, rear 12 V, 6 W, comprising:

2шт.

2

3062087R1

LENS

1шт.

3

3040096R1

NO LONGER SERVICED

BULB

1шт.

4

3041707R1

GASKET

1шт.

5

3041710R91

BODY

1шт.

6

3041709R1

GROMMET

1шт.

7

3041712R1

WASHER, shakeproof

2шт.

8

3041711R1

NUT

2шт.

9

3042097R1

BRACKET, rear lamp and reflector LH

1шт.

3042098R1

BRACKET, rear lamp and reflector RH

1шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

rd-hd., sltd-mach., 1/4" x 5/8"

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

117959

GROMMET,5/16" ID x .719" x .062"

5/16", No. 3

2шт.

10

3042095R1

BRACKET, side lamps LH

1шт.

3042096R1

BRACKET, side lamps RH

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

rd-hd., sltd-mach., 1/4" x 5/8"

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

117959

GROMMET,5/16" ID x .719" x .062"

5/16", No. 3

2шт.

11

709233R91

LAMP, side 12 V, 6 W, comprising: Ref. 12 - 16

2шт.

12

3041708R1

LENS

1шт.

13

3040096R1

NO LONGER SERVICED

BULB

1шт.

14

3041707R1

GASKET

1шт.

15

3041710R91

BODY

1шт.

16

3041709R1

GROMMET

1шт.

17

3041711R1

NUT

2шт.

18

3041712R1

WASHER, shakeproof

2шт.

19

709444R91

REFLECTOR

(Red) rear

1шт.
