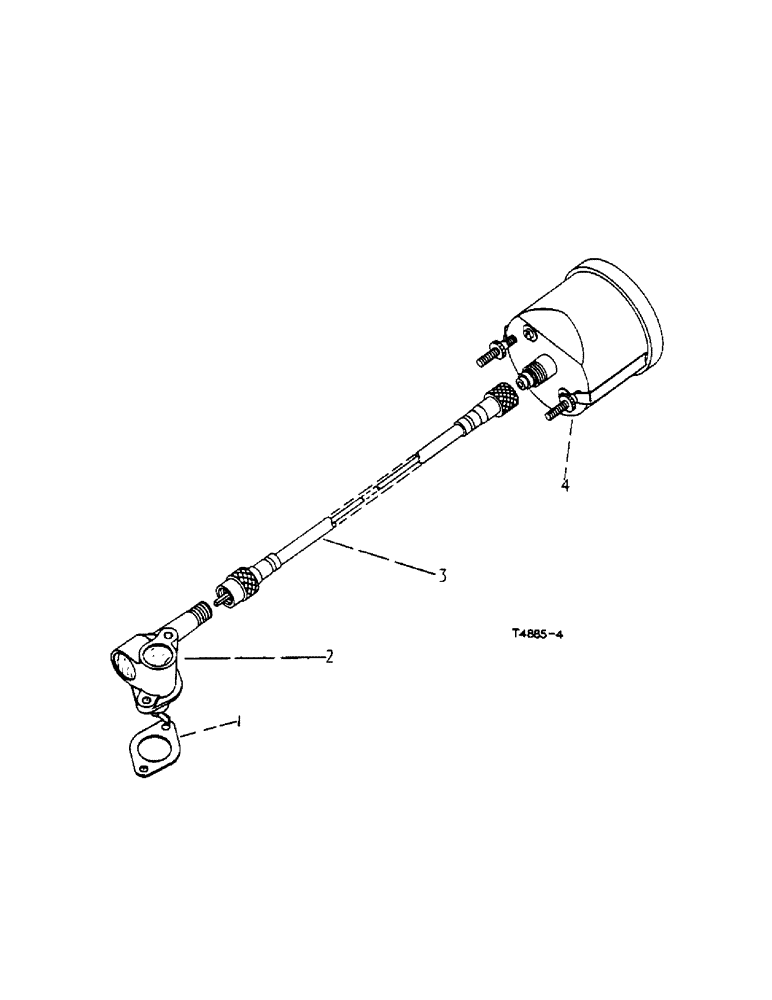

Запчасти Case IH 434 (7-21) - TRACTORMETER ATTACHMENT - HIGH CLEARANCE (04) - ELECTRICAL SYSTEMS

3071465R91

ATTACHMENT, tractormeter m.p.h., comprising: Ref. 1 - 4

1шт.

3071510R91

ATTACHMENT tractormeter k.p.h., comprising: Ref. 1 - 4

1шт.

1

3042467R1

GASKET

hourmeter drive opening cover

1шт.

2

3042474R91

ANGLE

GEARBOX assy., opt.

1шт.

3070504R91

CASE

GEARBOX assy., opt.

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

hex-hd., 1/4" x 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

3042473R92

DRIVE

flexible (Smiths)

1шт.

3071265R1

CABLE PULLING GRIP

CABLE, inner drive (Smiths)

1шт.

3070503R92

FLEXIBLE DRIVE SHAFT

DRIVE, flexible (AC Delco)

1шт.

3071262R1

FLEXIBLE DRIVE SHAFT

CABLE, inner drive (AC Delco)

1шт.

4

3045068R92

METER

TRACTORMETER, m.p.h. (Smiths)

1шт.

3071511R91

TRACTORMETER

m.p.h. (AC Delco)

1шт.

4

3045069R92

HOURMETER

TRACTORMETER, k.p.h. (Smiths)

1шт.

3071512R91

METER

TRACTORMETER, k.p.h. (AC Delco)

1шт.
