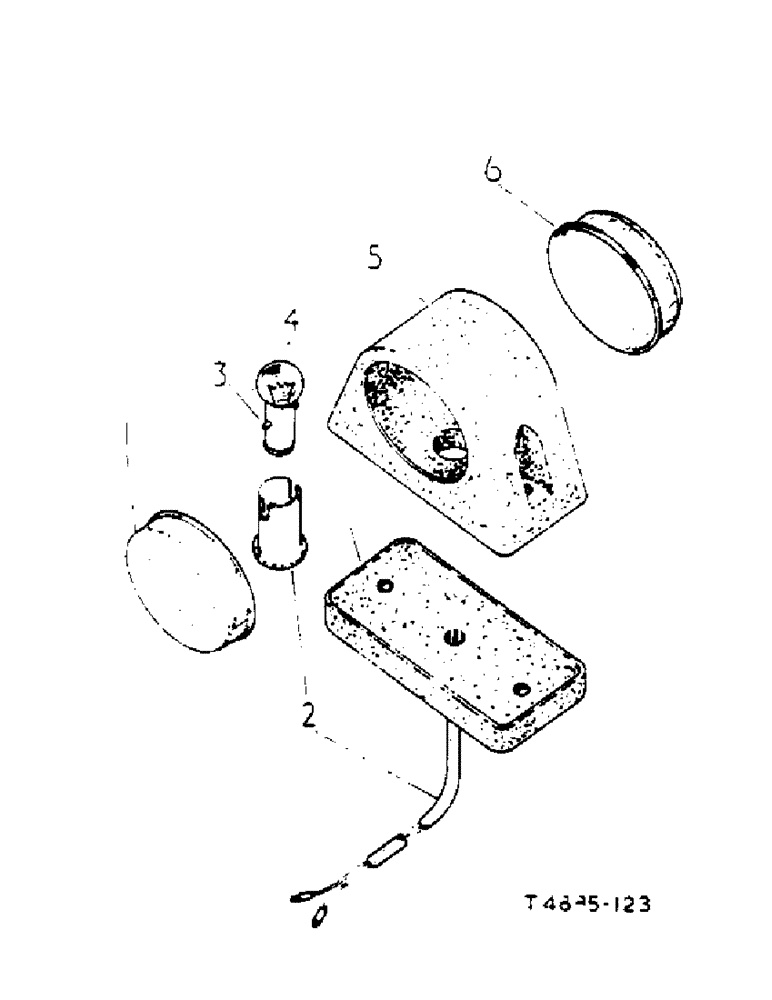

Запчасти Case IH 434 (3-27) - LAMPS, SIDE AND REAR, 434D/10700 UP - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3071605R91

LIGHT ASSY.

LAMP, side and rear, comprising: Ref. 1 - 6

2шт.

1

3074001R1

LENS

clear Diakon

1шт.

2

3074005R91

HOLDER

bulb and bracket

1шт.

3

894879H1

BULB

6 watt D.C.

1шт.

4

3074006R1

CUSHION, black rubber

1шт.

3062475R1

NUT

hex., 2 BA

2шт.

3073986R1

SCREW, rd-hd., 2 BA x 1-1/2"

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

700304R1

WASHER, plain, 2 BA

4шт.

5

3074002R1

BODY, black rubber

1шт.

6

3074003R1

LENS

red Diakon

1шт.
