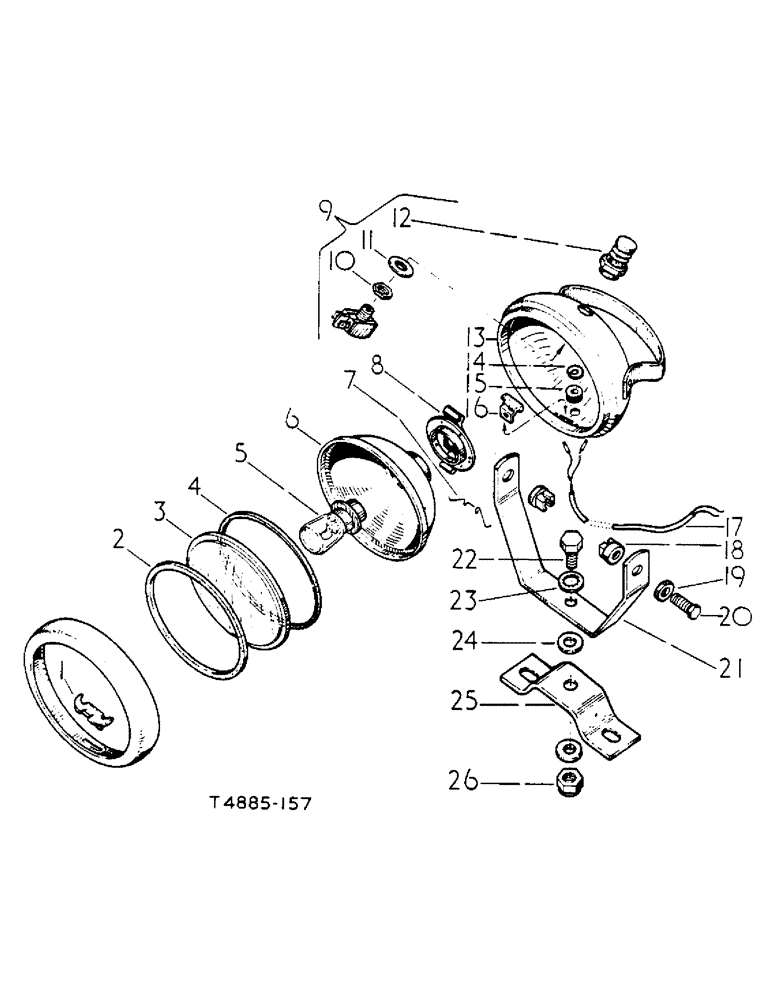

Запчасти Case IH 434 (3-26) - PLOUGH LAMPS, FITTED TO CAB - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3072921R91

LAMP plough, used with three-point linkage

1шт.

3072926R91

LAMP plough, without three-point linkage

1шт.

1

702474R1

NO LONGER SERVICED

CLIP, door

1шт.

2

700447R1

DOOR SEAL

lens door

1шт.

3

705807R1

LENS

flooder

1шт.

4

702475R1

GASKET

lens reflector

1шт.

5

3064395R1

BULB

1шт.

6

3064387R91

REFLECTOR

and TUBE assy.

1шт.

7

702476R1

BEARING CARRIER

RETAINER

5шт.

8

3072570R91

REFLECTOR

CONTACT, assy.

1шт.

9

3064402R91

SWITCH

assy., w/COVER 3068112R1, NUT 3068113R1 and WASHER 3068114R1 & SCREW 3109934R1

1шт.

3109934R1

SCREW

body switch

1шт.

10

3068113R1

NUT, lock

1шт.

11

3068114R1

WASHER, treated paper

1шт.

12

3068112R1

COVER, switch

1шт.

13

NSS

NOT SOLD SEPARAT

BODY, for 3072921R91

1шт.

NSS

NOT SOLD SEPARAT

BODY, for 3072926R91

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER

2шт.

15

NSS

NOT SOLD SEPARAT

GROMMET

1шт.

16

3064399R1

CATCH, body

1шт.

3064400R1

SCREW

door

1шт.

17

3074790R1

CABLE, main

1шт.

3109933R1

CABLE, switch feed

1шт.

18

3074780R1

NUT, nylon

2шт.

19

3074783R1

WASHER, nylon

2шт.

20

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

21

3074778R1

BRACKET, pivot

1шт.

22

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

23

3074786R1

WASHER, shakeproof

1шт.

24

3074785R1

WASHER, nylon

2шт.

25

3074781R1

BASE

BRACKET, mtg. (base), for 3072921R91

1шт.

25

3074782R1

BRACKET, mtg. (base), for 3072926R91

1шт.

26

3074787R1

NUT, nylon

1шт.

3064391R1

WASHER, retaining

1шт.

3074767R91

BODY, assy., cpte., for 3072921R91, comprising

1шт.

3074768R91

BODY, assy., cpte., for 3072926R91, comprising

1шт.

3074769R91

BODY, for 3072921R91

1шт.

3074770R91

BODY

for 3072926R91

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

3074781R1

BASE

BRACKET, for 3072921R91

1шт.

3074782R1

BRACKET, for 3072926R91

1шт.

3109933R1

CABLE

1шт.

3074787R1

NUT

1шт.

3064402R91

SWITCH

1шт.

3074786R1

WASHER

1шт.

3074785R1

WASHER

2шт.

3074769R91

BODY, sub. assy., for 3072921R91, comprising

1шт.

3074770R91

BODY

sub. assy., for 3072926R91, comprising

1шт.

NSS

NOT SOLD SEPARAT

BODY, for 3072921R91

1шт.

NSS

NOT SOLD SEPARAT

BODY, for 3072926R91

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

3074778R1

BRACKET

1шт.

3064399R1

CATCH

1шт.

NSS

NOT SOLD SEPARAT

GROMMET

1шт.

3074780R1

NUT

2шт.

3064400R1

SCREW

1шт.

NSS

NOT SOLD SEPARAT

WASHER

2шт.

3074783R1

WASHER

2шт.

3064389R91

DOOR and REFLECTOR assy., for 3072921R91, comprising

1шт.

3072573R91

DOOR

and REFLECTOR assy., for 3072926R91, comprising

1шт.

702474R1

NO LONGER SERVICED

CLIP

1шт.

700447R1

DOOR SEAL

1шт.

702475R1

GASKET

1шт.

705807R1

LENS

1шт.

3064387R91

REFLECTOR

1шт.

702476R1

BEARING CARRIER

RETAINER

5шт.
