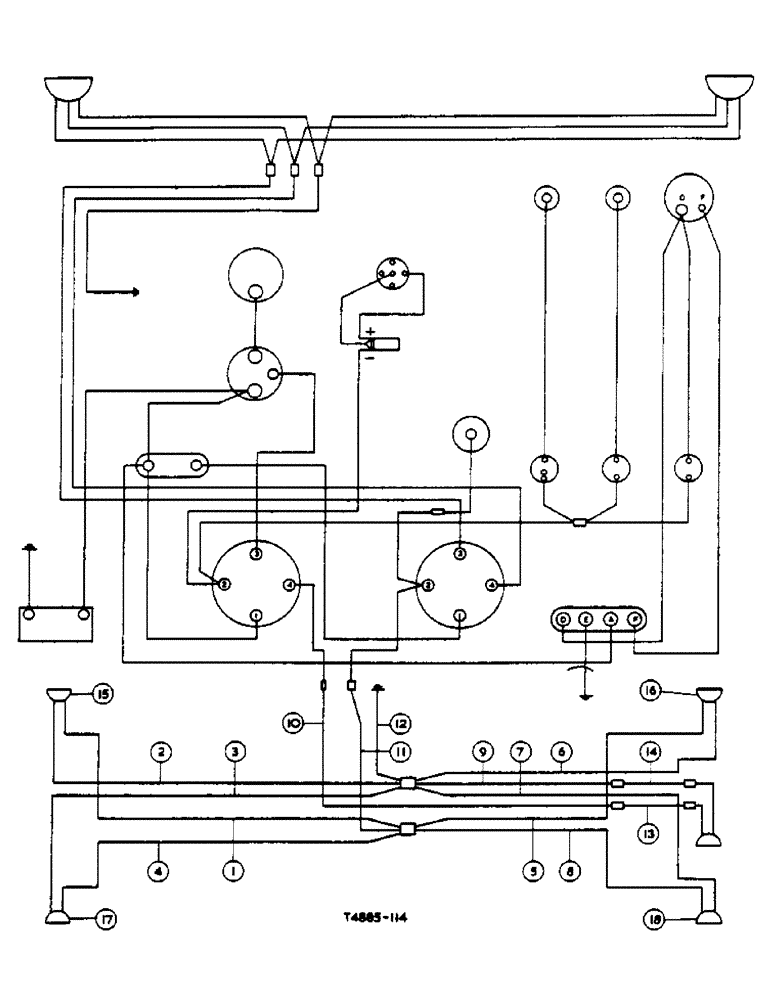

Запчасти Case IH 434 (3-24) - RTA LIGHTING ATTACHMENT, PETROL - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3072036R91

ATTACHMENT, road traffic act, lighting (for use w/Rear Industrial Fenders Attach) (Export)

1шт.

3071676R91

HARNESS, side and rear lamp, comprising:

1шт.

1

CABLE, rear lights feed conn. to LH side lamp (Red)

1шт.

2

CABLE, rear lights earth conn. to LH side lamp (Black)

1шт.

3

CABLE, rear lights earth conn. to LH rear lamp (Black)

1шт.

4

CABLE, rear lights feed conn. to LH rear lamp (Red)

1шт.

5

CABLE, rear light feed conn. to RH side lamp (Red)

1шт.

6

CABLE, rear light to earth conn. to RH side lamp (Black)

1шт.

7

CABLE, rear lights earth conn. to RH rear lamp (Black)

1шт.

8

CABLE, rear lights feed conn. to RH rear Lamp (Red)

1шт.

9

CABLE, rear lights earth conn. to plough lamp (Black)

1шт.

10

CABLE, rear conn. to plough lamp (Red/White)

1шт.

11

CABLE, rear conn. to rear light feed conn. (Red)

1шт.

12

CABLE, rear lights earth conn. to earth (Black)

1шт.

3072035R91

CABLE, assy., plough lamp to main harness, comprising:

1шт.

13

CABLE, plough lamp conn. to main harness conn. (Red)

1шт.

14

CABLE, plough lamp conn. to main harness conn. (Black)

1шт.

15

LAMP, LH side ( 12V 6W)

1шт.

See Lamps, Side and Rear RTA Lighting

1шт.

16

LAMP, RH side (12V 6W)

1шт.

See Lamps, Side and Rear RTA Lighting

1шт.

17

LAMP, LH rear (12V 6W)

1шт.

See Lamps, Side and Rear RTA Lighting

1шт.

18

LAMP, RH rear (12V 6W)

1шт.

See Lamps, Side and Rear RTA Lighting

1шт.

BRACKET, rear lamps

2шт.

See Lamps, Side and Rear RTA Lighting

1шт.

BRACKET, reflector support

2шт.

See Lamps, Side and Rear RTA Lighting

1шт.

BRACKET, side lamps

2шт.

See Lamps, Side and Rear RTA Lighting

1шт.

708113R1

CLIP

cable

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8"

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

112734

GROMMET, 3/8" (fender cable entry) 3/8" ID x 11/16" x .062"

6шт.

REFLECTOR, rear (red)

2шт.

See Lamps, Side and Rear RTA Lighting

1шт.
