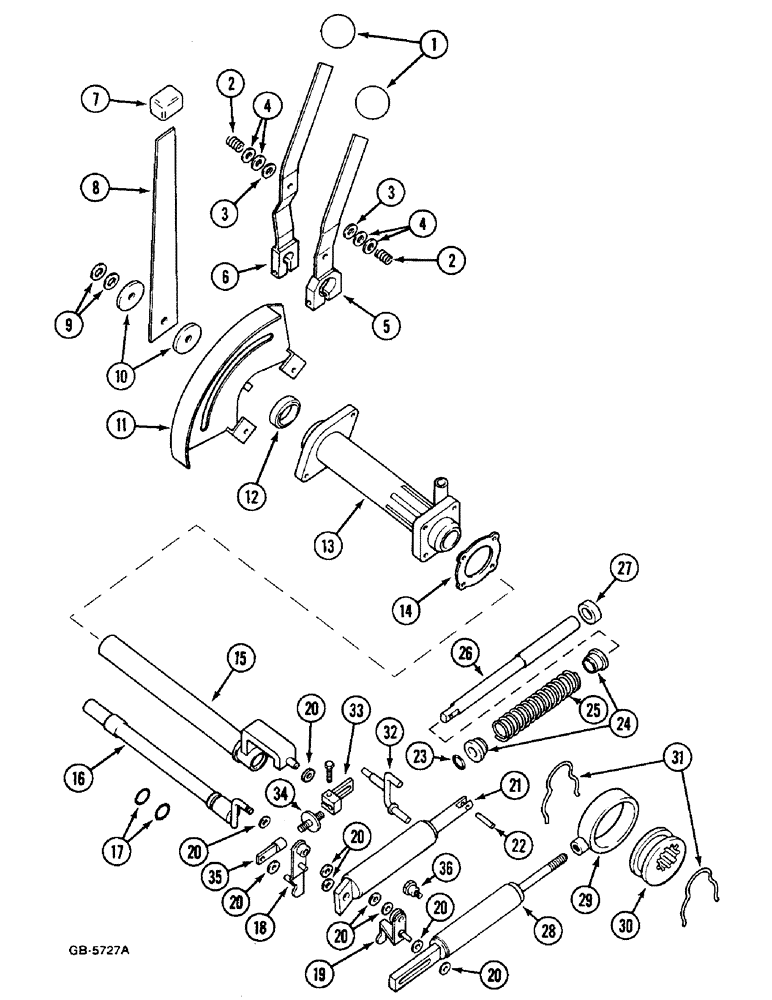

Запчасти Case IH 433 (8-488) - LINKAGE (08) - HYDRAULICS

1

3134919R2

KNOB

KNOB, for models 433, 533, 633, 733, 833

2шт.

2

3145214R1

SPRING

for models 433, 533, 633, 733, 833

2шт.

3

3401107R1

WASHER,7mm ID x 25mm OD x 2mm Thk

for models 433, 533, 633, 733, 833

2шт.

4

3058090R3

FRICTION WASHER,7mm ID x 25mm OD x 2.5mm Thk

for models 433, 533, 633, 733, 833

4шт.

5

3145211R91

LEVER

for models 433, 533, 633, 733, 833

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

For models 433, 533, 633, 733, 833

1шт.

21110R1

HEX SOC SCREW,5/16"-18 x 1 3/4"

for models 433, 533, 633

1шт.

80681

LOCK WASHER,5/16"

For models 433, 533, 633, 733, 833

1шт.

9413946

LOCK NUT,1/4"-20, GA

for models 433, 533, 633, 733, 833

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

For models 733, 833

1шт.

6

3145244R91

LEVER

for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

6

1285107C1

LEVER

for models 433, 533, 633, 733, 833

1шт.

Version With Cab

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

For models 433, 533, 633, 733, 833

1шт.

21040R1

HEX SOC SCREW,5/16"-18 x 1 1/4"

for models 433, 533, 633

1шт.

80681

LOCK WASHER,5/16"

For models 433, 533, 633, 733, 833

1шт.

9413946

LOCK NUT,1/4"-20, GA

for models 433, 533, 633, 733, 833

1шт.

25751R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

for models 733, 833

1шт.

7

3137539R2

KNOB

for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

8

3131372R1

LEVER

for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

9

3145247R1

SPRING WASHER

for models 433, 533, 633, 733, 833

4шт.

Version Without Cab

1шт.

10

3057776R1

DISC

for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

11

3145246R92

SECTOR

for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

for models 433, 533, 633, 733, 833

1шт.

274993

SHIELD

for models 433, 533, 633, 733, 833

1шт.

11

3226003R91

QUADRANT

for models 433, 533, 633, 733, 833

1шт.

Version With Cab

1шт.

12

3134874R91

OIL SEAL,30mm ID x 42mm OD x 8mm Thk

oil, for models 433, 533, 633, 733, 833

1шт.

13

786878R3

SHAFT

HOUSING, for models 433, 533, 633, 733, 833

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

For models 433, 533, 633, 733, 833

2шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

for models 433, 533, 633, 733, 833

4шт.

3052189R1

BELLEVILLE WASHER

lock, for models 433, 533, 633, 733, 833

4шт.

80681

LOCK WASHER,5/16"

For models 433, 533, 633, 733, 833

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

For models 433, 533, 633, 733, 833

2шт.

14

3053452R1

GASKET

for models 433, 533, 633, 733, 833

1шт.

15

3402421R1

CONTROL

for models 433, 533, 633, 733, 833

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

For models 433, 533, 633, 733, 833

1шт.

16

786889R21

SHAFT

for models 433, 533, 633, 733, 833

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

For models 433, 533, 633, 733, 833

1шт.

17

3051811R1

O-RING,2.4mm Thk x 17.3mm ID, 72 Duro

for models 433, 533, 633, 733, 833

2шт.

18

3401131R1

LEVER

for models 433, 533, 633, 733, 833

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

For models 433, 533, 633, 733, 833

1шт.

19

3402423R1

LEVER

for models 433, 533, 633, 733, 833

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

For models 433, 533, 633, 733, 833

1шт.

20

95-11034

WASHER,1/4"

for models 433, 533, 633, 733, 833

1шт.

21

3148350R91

SPRING

ELEMENT, for models 433, 533, 633, 733, 833

1шт.

22

3057645R1

PIN

for models 433, 533, 633, 733, 833

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

For models 433, 533, 633, 733, 833

2шт.

23

Q2272

WASHER

for models 433, 533, 633, 733, 833

1шт.

24

3057646R1

SEAT

SPARE PART for models 433, 533, 633, 733, 833

2шт.

25

3051789R1

SPRING

for models 433, 533, 633, 733, 833

1шт.

26

3148353R1

CLEVIS PIN

PLUNGER, for models 433, 533, 633, 733, 833

1шт.

932040R1

LOCK PIN,4mm OD x 24mm L, Slotted

for models 433, 533, 633, 733, 833

1шт.

27

3057620R91

SEAL

for models 433, 533, 633, 733, 833

1шт.

3148106R91

ADJUSTER

ROD ASSEMBLY, consists of Ref. 28, 29, 30, for models 433, 533, 633, 733, 833

1шт.

28

3148108R92

ROD

for models 433, 533, 633, 733, 833

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

For models 433, 533, 633, 733, 833

1шт.

29

3145197R1

RING

for models 433, 533, 633, 733, 833

1шт.

30

3148107R1

RING

for models 433, 533, 633, 733, 833

1шт.

31

3148111R1

CINTRE

BOW CLIP, for models 433, 533, 633, 733, 833

2шт.

32

3401118R1

ROD

ASSEMBLY, for models 433, 533, 633, 733, 833

1шт.

905174R1

WASHER,M13

for models 433, 533, 633, 733, 833

1шт.

103373

COTTER PIN,3/32" x 3/4"

For models 433, 533, 633

1шт.

33

3401122R2

PLATE

BRACKET, for models 433, 533, 633, 733, 833

1шт.

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

for models 433, 533, 633, 733, 833

1шт.

34

3401125R1

ADJUSTER

for models 433, 533, 633, 733, 833

1шт.

35

3401128R2

PLATE

BRACKET, for models 433, 533, 633, 733, 833

1шт.

36

3402425R1

BOLT

for models 433, 533, 633, 733, 833

1шт.

43362

NUT,M8 x 1.25, Cl 10

For Models 433, 533, 633, 733, 833

1шт.
