Запчасти Case IH 433 (6-346) - TRANSMISSION (06) - POWER TRAIN

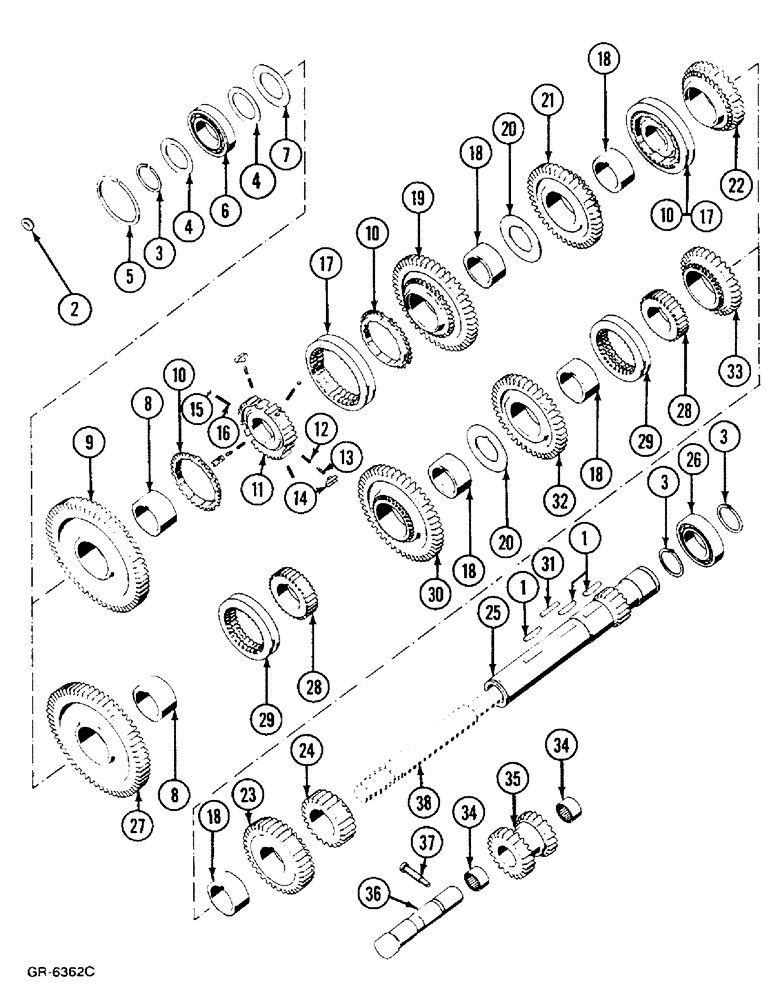

Схема запчастей Case IH 433 - (6-346) - TRANSMISSION (06) - POWER TRAIN
10
8
29
18
18
32
6
38
25
9
17
11
10
27
34
24
36
31
21
37
2
26
4
1
17
18
7
1
8
35
19
28
29
33
28
3
22
30
18
5
13
20
4
14
16
3
23
20
34
3
10
12
18
15

Артикул

Название

Примечание

Количество

3234704R91

SYNCHRONIZER

CGT, for models 733, 833

2шт.

3148383R91

SYNCHRONIZER

"ZF", consists of Ref. 10 - 17, for models 433, 533, 633

2шт.

1

3148065R1

KEY

3шт.

2

3226944R1

BUSHING

WASHER

4шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

4шт.

3

933088R1

SNAP RING,M50, Ext

RING, retaining

3шт.

4

3148069R1

SHIM

0.1 mm

1шт.

4

3148070R1

SHIM

0.3 mm

1шт.

4

3148071R1

SHIM

0.5 mm

1шт.

4

3148072R1

SHIM

1.0 mm

1шт.

5

3217227R1

RING

retaining, 2.95 mm

1шт.

5

3217228R1

RING

retaining, 2.85 mm

1шт.

5

3217229R1

CIRCLIP

RING, retaining, 2.75 mm

1шт.

5

3217230R1

RING

retaining, 2.65 mm

1шт.

6

3148628R91

BEARING, BALL

1шт.

7

3148227R1

WASHER

for models 433, 533, 633, 733

1шт.

8

3148626R2

BUSHING

for models 433, 533, 633, 733

1шт.

9

3148374R91

GEAR

61T, 1st speed, for models 433, 533, 633, 733

1шт.

Version With Synchronizer

1шт.

9

1334842C91

GEAR

1st speed

1шт.

Version With Synchronizer

1шт.

10

3148386R1

RING

for models 433, 533, 633

4шт.

10

3234703R1

RING

for models 733, 833

4шт.

11

3148389R1

BODY

2шт.

12

3148387R1

SPRING

6шт.

13

3135835R1

BALL STUD

BALL PIN

6шт.

14

3135833R1

LATCH

6шт.

15

3057501R1

BALL

6 mm dia

6шт.

16

3217200R1

SPRING

6шт.

17

3148384R1

TRANSMISSION SLEEVE

COLLAR

2шт.

18

3148627R2

BUSHING

3шт.

19

3148377R91

GEAR

49T, 2nd speed, for models 433, 533, 633, 733

1шт.

20

3148641R1

THRUST WASHER

for models 433, 533, 633, 733

1шт.

21

3148379R92

GEAR

42T, 3rd Speed, for models 433, 533, 633, 733

1шт.

Version With Synchronizer

1шт.

Version With Claw and Synchronizer

1шт.

22

3148381R92

GEAR

33T, 4th Speed, for models 433, 533, 633, 733

1шт.

Version With Synchronizer

1шт.

Version With Claw and Synchronizer

1шт.

23

3148238R1

GEAR

34T, 25 km/h version, for models 533, 633, 733

1шт.

23

3148236R1

GEAR

35T, 25 km/h version, for models 433, 533, 633

1шт.

23

3148616R1

GEAR

36T, 30 km/h version, for models 533, 633, 733

1шт.

23

3229607R1

GEAR

38T, 30 km/h version, for models 433, 533, 633, 733

1шт.

24

3148063R1

GEAR

23T, reverse range, for models 433, 533, 633, 733

1шт.

25

3148059R4

SHAFT

for gear with 60T, for models 433, 533, 633, 733

1шт.

25

1334819C1

SHAFT

4-Wheel Drive Tractors - 40 km/h, for model 733

1шт.

Version With Synchronizer

1шт.

25

3229610R1

SHAFT

30 km/h, for gear with 55T, for models 433, 533

1шт.

Version Without Synchronizer

1шт.

Version With Claw and Synchronizer

1шт.

26

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

for models 433, 533, 633, 733

1шт.

27

3148367R1

GEAR

61T, 1st speed, for models 433, 533, 633

1шт.

28

3148372R1

GEAR

HUB, for models 433, 533, 633

2шт.

Version Without Synchronizer

1шт.

28

3148372R1

GEAR

HUB, for models 433, 533

1шт.

Version With Claw and Synchronizer

1шт.

29

3148371R1

COLLAR

for models 433, 533, 633

2шт.

Version Without Synchronizer

1шт.

29

3148371R1

COLLAR

for models 433, 533

1шт.

Version With Claw and Synchronizer

1шт.

30

3148368R1

GEAR

49T, 2nd speed, for models 433, 533, 633

1шт.

31

3148639R1

KEY

for models 433, 533, 633, 733

1шт.

32

3148064R2

GEAR

42T, 3rd speed, for models 433, 533, 633

1шт.

Version Without Synchronizer

1шт.

33

3148066R2

GEAR

33T, 4th speed, for models 433, 533, 633

1шт.

Version Without Synchronizer

1шт.

34

3148636R91

BEARING, NEEDLE

for models 433, 533, 633, 733

2шт.

35

3148086R2

GEAR

20/22T reverse, idler, for models 433, 533, 633, 733

1шт.

36

3148085R3

SHAFT

reverse, idler, for models 433, 533, 633, 733

1шт.

37

3051353R1

BOLT

for models 433, 533, 633, 733

1шт.

103321

LOCK WASHER,3/8"

For models 433, 533, 633, 733

1шт.

38

SHAFT, see PTO - 540 rpm, for models 433, 533, 633, 733

1шт.

3221247R91

STRIPPER PACKAGE

field improvement, consists of the following parts, not illustrated, for models 433, 533

1шт.

3148379R92

GEAR

42T, not illustrated, for models 433, 533

1шт.

3148381R92

GEAR

33T, not illustrated, for models 433, 533

1шт.

3148383R91

SYNCHRONIZER

"ZF", not illustrated, for models 433, 533

1шт.

3148898R91

FORK

not illustrated, for models 433, 533

1шт.

3137031R1

SLIDE

not illustrated, for models 433, 533

2шт.

Выбрано товаров: 79
