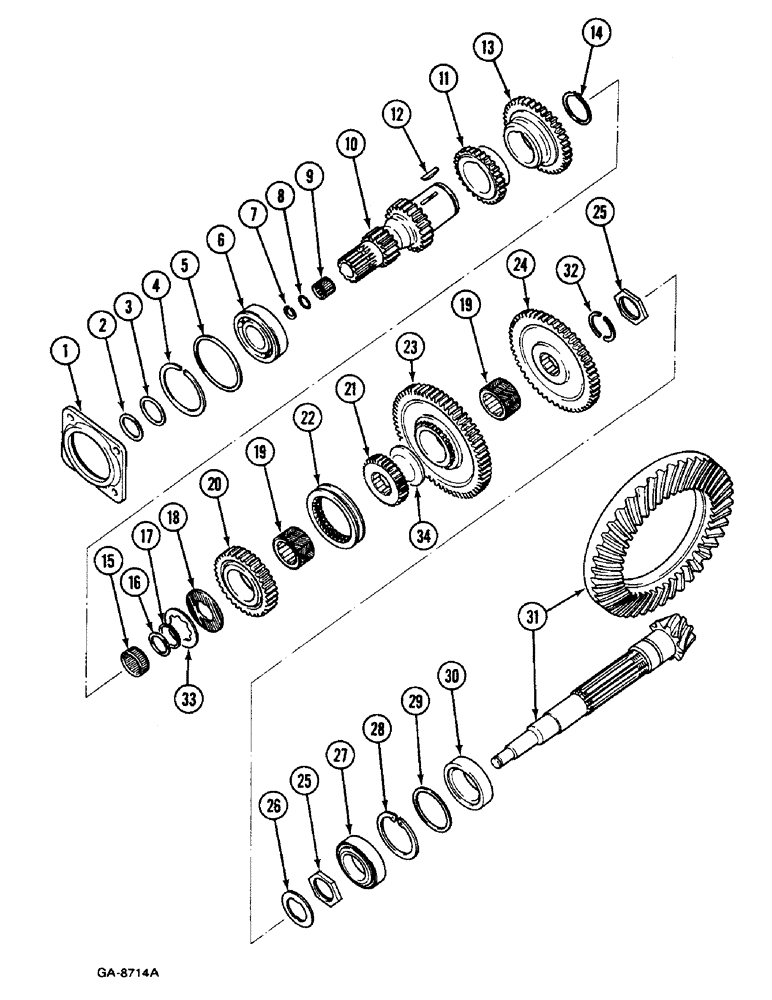

Запчасти Case IH 433 (6-338) - TRANSMISSION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3148057R2
COVER
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
103321
LOCK WASHER,3/8"
1шт.
2
933283R1
SNAP RING,M45, Ext
RING, retaining
1шт.
3
3148640R1
WASHER
1шт.
4
3217223R1
RING
retaining, 2.95 mm
1шт.
4
3217224R1
SEALING RING
RING, retaining, 2.85 mm
1шт.
4
3217225R1
RING
retaining, 2.75 mm
1шт.
4
3217226R1
X
retaining, 2.65 mm
1шт.
5
3148642R1
WASHER
1шт.
6
3216053R91
BEARING, BALL
for models 433, 533, 633
1шт.
6
3233182R91
BEARING, ROLLER,45 mm ID x 100 mm OD x 25 mm
for models 733, 833
1шт.
7
3148226R1
RING, SNAP
RING SNAP retaining
1шт.
8
3148083R1
THRUST WASHER
2шт.
9
3148632R91
NEEDLE BEARING
1шт.
10
3216960R2
SHAFT
16/22T
1шт.
10
3148625R1
SHAFT
16/22T, for models 433, 533, 633
1шт.
Transmission Serial Number: - Y8664
1шт.
11
3148369R2
GEAR
29T, 3rd speed
1шт.
12
3148065R1
KEY
4шт.
13
3148370R2
GEAR
38T, 4th speed
1шт.
14
3047960R1
SNAP RING,M65, Ext
RING, retaining
1шт.
15
3216050R91
BEARING, NEEDLE
1шт.
16
3148638R1
THRUST WASHER
1шт.
17
933946R1
RING, SNAP
RING SNAP retaining
1шт.
18
3148624R1
THRUST WASHER
1шт.
19
3148623R1
SPLINED COUPLING
BUSHING
2шт.
20
3148615R1
GEAR
34T, for models 533, 633
1шт.
20
3148235R1
GEAR
36T, for models 433, 533, 633
1шт.
20
3148237R1
GEAR
37T, for models 533, 633
1шт.
20
3229606R2
PINION
GEAR, 33T
1шт.
20
3233482R1
GEAR
37T, for models 733, 833
1шт.
20
3233483R1
GEAR
34T, for models 733, 833
1шт.
21
3225623R1
HUB
1шт.
21
3148039R1
GEAR
HUB 433/533/633
1шт.
Transmission Serial Number: -B8573
1шт.
22
3148038R1
COLLAR
1шт.
23
3148036R1
GEAR
60T, 25km/h
1шт.
23
3229608R1
GEAR
55T, 30km/h, for models 433, 533
1шт.
24
3225621R1
GEAR
53T, for models 433, 533, 633
1шт.
24
3148035R1
GEAR
53T
1шт.
Transmission Serial Number: 433, 533 & 633: - B8573; 733: (XXXX -)
1шт.
25
3148033R1
THIN NUT
2шт.
26
786308R1
LOCK WASHER
1шт.
27
3148445R91
BEARING, ROLLER
1шт.
28
717704R1
LOCKING RING
retaining, 3.85 mm
1шт.
28
717705R1
X
retaining, 3.90 mm
1шт.
28
717706R1
RING, SNAP
RING SNAP retaining, 3.95 mm
1шт.
28
717707R1
RING
retaining, 4.00 mm
1шт.
28
717249R1
RING, SNAP
RING SNAP retaining, 4.05 mm
1шт.
29
3148019R1
WASHER
SHIM, 1.35 mm
1шт.
29
3148020R1
SHIM
1.40 mm
1шт.
29
3148021R1
SHIM
1.45 mm
1шт.
29
3148022R1
SHIM
1.50 mm
1шт.
29
3148023R1
DISC
SPARE PART SHIM, 1.55 mm
1шт.
29
3148027R1
DISC
SHIM, 1.60 mm
1шт.
29
3148024R1
SHIM
1.65 mm
1шт.
29
3148025R1
DISC
SHIM, 1.70 mm
1шт.
29
3148026R1
SHIM
1.75 mm
1шт.
29
3148028R1
SHIM
1.80 mm
1шт.
29
3148029R1
SHIM
1.85 mm
1шт.
29
3148030R1
SHIM
1.90 mm
1шт.
29
3148031R1
SHIM
1.95 mm
1шт.
29
3148032R1
SHIM
2.00 mm
1шт.
29
3148034R1
DISC
SHIM, 2.05 mm
1шт.
29
3148037R1
DISC
SHIM, 2.10 mm
1шт.
29
3148040R1
SHIM
2.15 mm
1шт.
29
3148041R1
DISC
SHIM, 2.20 mm
1шт.
29
3148042R1
SHIM
2.25 mm
1шт.
29
3148043R1
SHIM
2.30 mm
1шт.
29
3148044R1
SHIM
2.35 mm
1шт.
29
3148045R1
SHIM
2.40 mm
1шт.
29
3148046R1
DISC
SHIM, 2.45 mm
1шт.
29
3131412R1
BEARING WASHER
2.50 mm
1шт.
29
3131413R1
BEARING WASHER
SHIM, 2.55 mm
1шт.
29
3131414R1
BEARING WASHER
2.60 mm
1шт.
29
3131415R1
BEARING WASHER
2.65 mm
1шт.
29
3131416R1
BEARING WASHER
2.70 mm
1шт.
29
3131417R1
BEARING WASHER
2.75 mm
1шт.
29
3131418R1
BEARING WASHER
2.80 mm
1шт.
29
3131419R1
BEARING WASHER
2.85 mm
1шт.
30
3216048R91
TAPERED BEARING
1шт.
31
3225619R91
GEAR-SET
9/44T, for models 433, 533, 633, 733
1шт.
Transmission Serial Number: 733: ( - XXXX)
1шт.
31
3148224R92
GEAR, BEVEL
BEVEL GEAR 9/44T
1шт.
Transmission Serial Number: 433, 533 & 633: - B8573; 733: (XXXX -)
1шт.
32
3225622R1
RING
2шт.
32
3216860R2
SET
2шт.
Transmission Serial Number: 433, 533 & 633: - B8573; 733: (XXXX -)
1шт.
33
3225625R1
SHIM
0.10 mm, for models 433, 533, 633
1шт.
33
3225626R1
SHIM
0.20 mm, for models 433, 533, 633
1шт.
33
3225627R1
SHIM
0.30 mm, for models 433, 533, 633
1шт.
33
3225628R1
SHIM
0.40 mm, for models 433, 533, 633
1шт.
34
3225624R1
BELLEVILLE SPRING
1шт.
Transmission Serial Number: 433, 533 & 633: B8573 - ; 733: ( - XXXX)
1шт.
Выбрано товаров: 95
