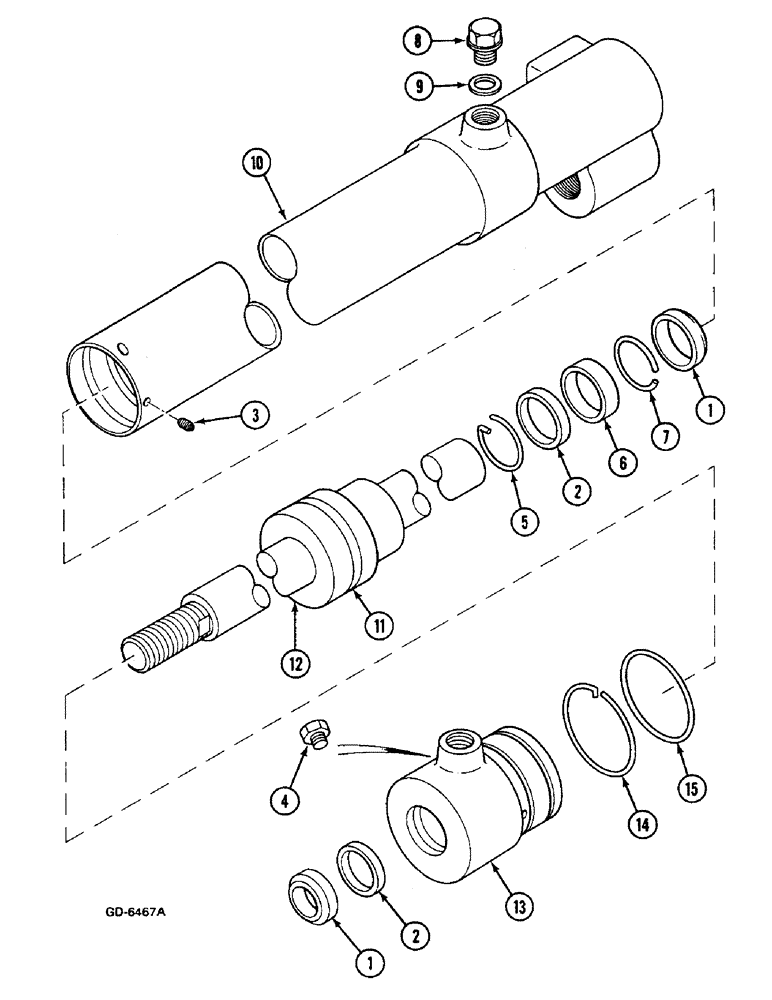

Запчасти Case IH 433 (5-272) - STEERING CYLINDER - SIDE MOUNTED (05) - STEERING

3217232R91

CYLINDER ASSY.

Consists of: 1-15

1шт.

1

3147622R1

SNAP RING

WIPER

2шт.

2

3147621R1

SEALING RING,25mm ID x 33mm OD x 6.4mm Thk

2шт.

3

934724R1

SET SCREW,Hex Skt, M5 x 6mm, Dog Pt

1шт.

4

FOR444613

PLUG

1шт.

5

3217744R1

RING, SNAP

RING SNAP retaining

1шт.

6

3147619R1

THRUST RING

1шт.

7

3147620R1

RING, SNAP

RING SNAP retaining

1шт.

8

933689R1

PLUG,Hex Soc, M10 x 1

1шт.

9

933697R1

SEALING RING,M10 x 13.5 x 1

1шт.

10

3225578R1

CYLINDER

1шт.

11

3225569R1

RING

1шт.

12

3225579R1

PISTON ROD

1шт.

13

3225577R1

END

1шт.

14

3225572R1

ELECTRICAL WIRE

WIRE

1шт.

15

3225571R1

O-RING

1шт.
