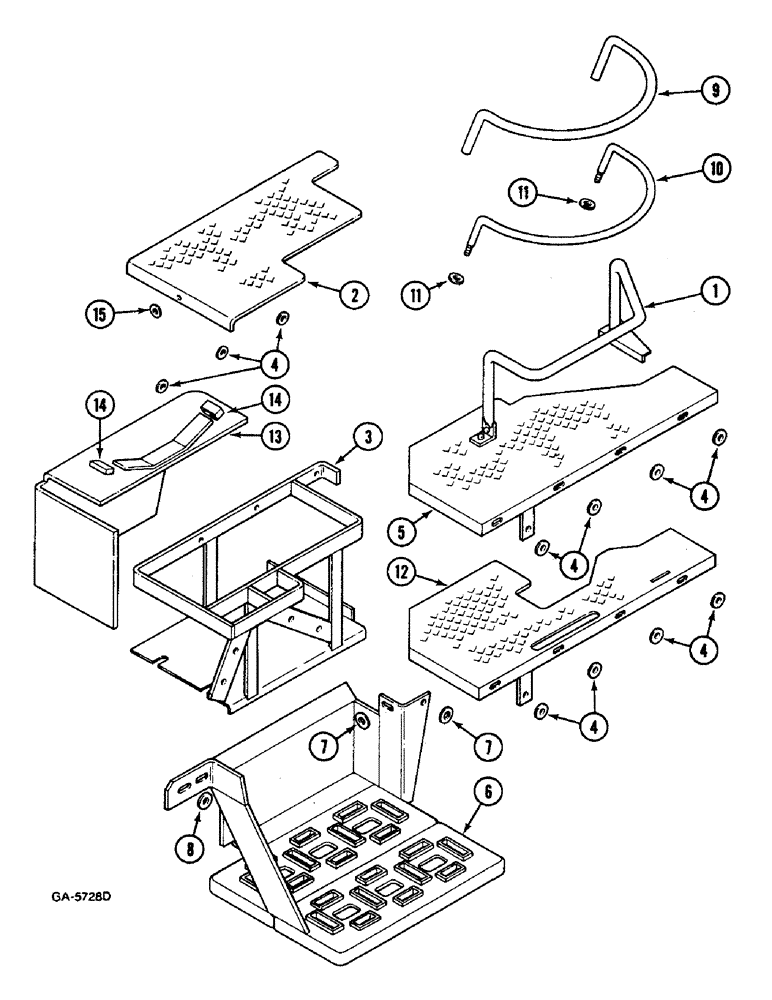

Запчасти Case IH 433 (9-642) - PASSENGER SEAT, PLATFORM (09) - CHASSIS/ATTACHMENTS

1

3216353R91

SEAT

FRAME

1шт.

2

3148123R92

PLATFORM

SPARE PART right (-XXXX)

1шт.

2

3232800R2

FOOT REST

PLATFORM right (XXXX-)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3шт.

3

3148126R91

TRAY

chassis serial number 433: -006899, 533: -007839, 633: -010762, for models 433, 533, 633

1шт.

3

3221717R91

TRAY

used with 3148123R92

1шт.

NLS

NO LONGER SERVICED

4шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

4

3058249R1

WASHER

10 mm

1шт.

5

3148120R91

FOOT REST

SPARE PART PLATFORM left

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

6

3148810R92

LADDER

STEP

1шт.

6

3216506R92

LADDER

STEP, for 4-wheel drive tractors, chassis serial number 433: -006899, 533: -007839, 633: -010762, for models 533, 633, 733, 833

1шт.

6

3233778R92

LADDER

STEP, only for version with horizontal muffler, for models 733, 833

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

7

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

10 mm

4шт.

8

933349R1

WASHER,M17 ID x 30 OD x 3 Thk

16 mm

2шт.

9

786799R1

HOSE

1шт.

10

786798R1

FRAME

1шт.

102637

NUT,1/2"-13, G5

2шт.

11

27927DA

WASHER

2шт.

12

3216262R92

PLATFORM

left, for 4-wheel drive tractors, for models 533, 633, 733, 833

1шт.

NLS

NO LONGER SERVICED

For models 533, 633, 733, 833

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

for models 533, 633, 733, 833

3шт.

120377

NUT,3/8" - 16, Gr 5

For models 533, 633, 733, 833

3шт.

13

3216782R91

COVER

SPARE PART for models 433, 533, 633

1шт.

14

3216785R1

SEAL

2шт.

15

50793H

WASHER

10 x 22 x 3 mm

1шт.
