Запчасти Case IH 433 (2-04) - RADIATOR (02) - ENGINE

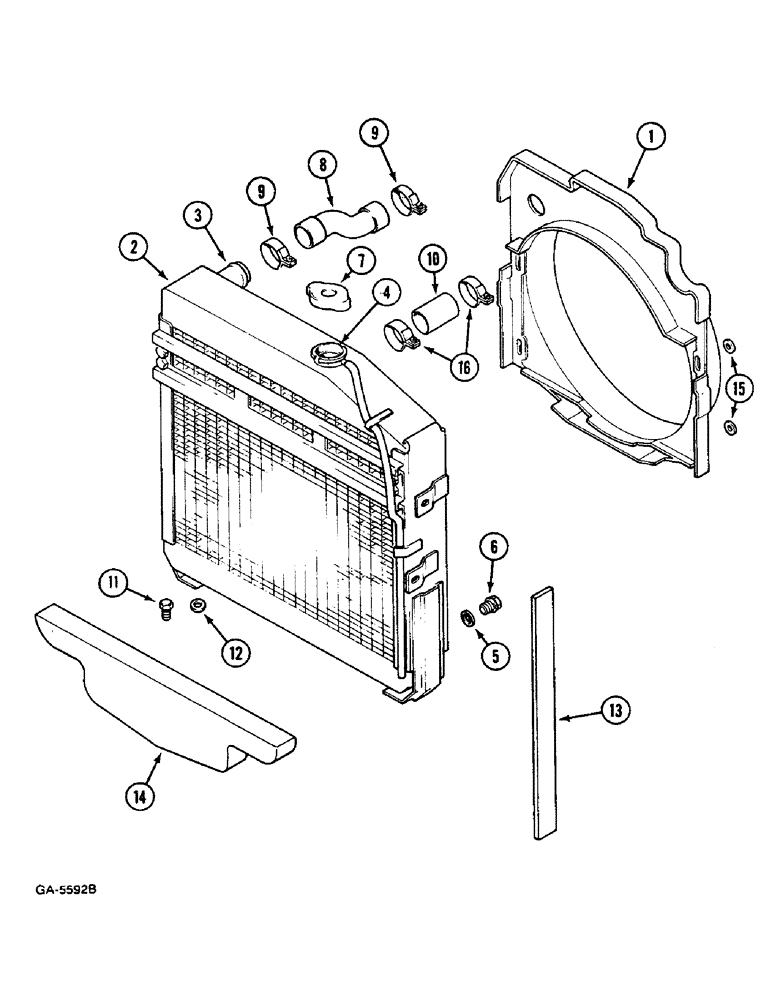

Схема запчастей Case IH 433 - (2-04) - RADIATOR (02) - ENGINE
1
16
4
12
9
6
3
10
8
2
11
15
5
9
13
14
7

Артикул

Название

Примечание

Количество

1

3148116R2

GUARD

SHROUD

1шт.

2

1328723C91

RADIATOR

Windhoff, for model 833

1шт.

2

3148113R93

RADIATOR

Windhoff, with: Ref. 3, 4, 6, for model 433

1шт.

2

3148115R93

RADIATOR

Windhoff, with: Ref. 3, 4, 6, for model 533, 633

1шт.

2

3233229R91

RADIATOR

Windhoff, with: Ref. 3, 4, 6, for model 733

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

934301R1

WASHER,M6.6

6 mm

4шт.

2

3223388R91

RADIATOR

Chausson, for models 433, 533

1шт.

2

3223389R91

RADIATOR

Chausson, for model 633

1шт.

3

3058718R1

PIPE

Windhoff, for models 433, 533, 633, 733

1шт.

4

3134812R1

NECK FILLER

Windhoff, for models 433, 533, 633, 733

1шт.

5

Not Used

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

7

3134146R1

PLUG

CAP

1шт.

7

787151R91

CAP

optional

1шт.

8

3148117R1

HOSE,40.00 mm ID x 240.00 mm

For models 433, 533, 633

1шт.

8

3134506R1

HOSE,32.00 mm ID, 40.00 mm ID x 210.00 mm

For models 733, 833

1шт.

9

755021R92

CLAMP

2шт.

9

3220458R1

CLAMP,M25-50, Worm

optional

2шт.

10

3216754R1

HOSE

for models 433, 533, 633

1шт.

10

3399199R1

HOSE

for models 733, 833

1шт.

11

3142388R1

BOLT

BOLT

2шт.

12

Not Used

1шт.

13

3142378R1

STRIP

2шт.

14

3148171R1

STRIP

1шт.

15

934301R1

WASHER,M6.6

6 mm

4шт.

16

3144921R1

CLAMP,M50-70, Worm

2шт.

16

755021R92

CLAMP

optional

2шт.

787996R3

PRODUCT GRAPHIC

Anti-freeze -10, -20C, not illustrated

1шт.

1090857R1

PRODUCT GRAPHIC

Anti-freeze -30, not illustrated

1шт.

Выбрано товаров: 30
