Запчасти Case IH 433 (8-548) - QUICK COUPLING, SELF SEALING COUPLING (08) - HYDRAULICS

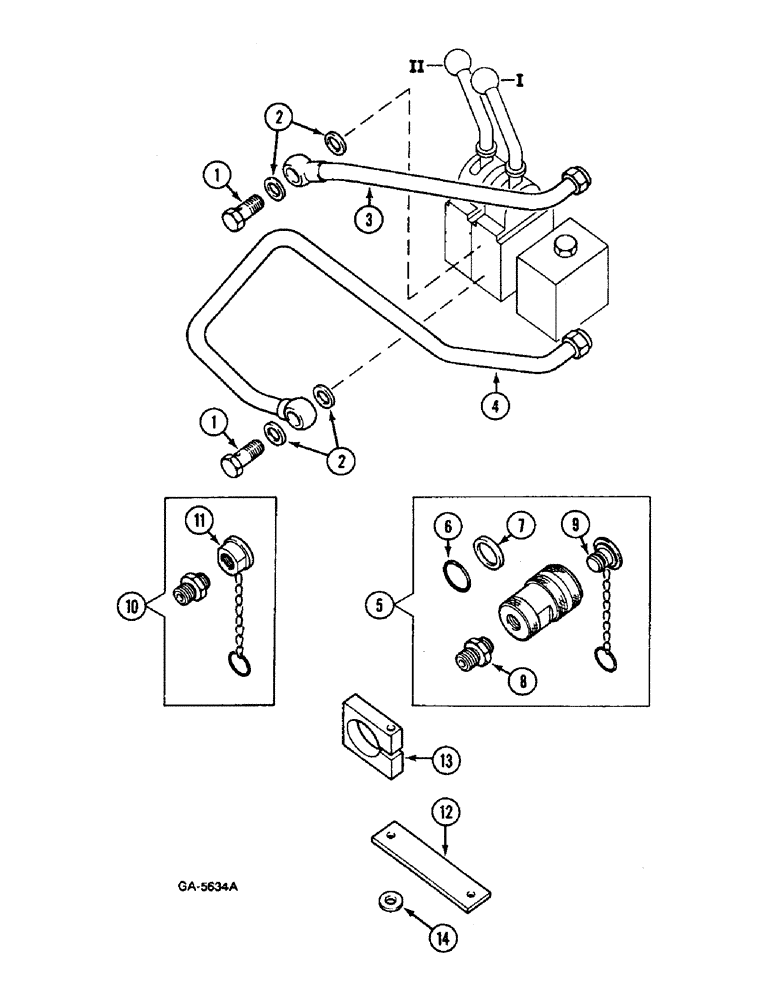

Схема запчастей Case IH 433 - (8-548) - QUICK COUPLING, SELF SEALING COUPLING (08) - HYDRAULICS
13
2
9
4
12
1
8
3
10
1
6
2
7
11
5
14

Артикул

Название

Примечание

Количество

1

930259R1

BANJO BOLT,M18 x 1 x 42mm

hollow, for models 433, 533, 633, 733, 833

1шт.

2

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

For models 433, 533, 633, 733, 833

1шт.

3

3230145R1

TUBE

control valve I, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 433: 010271 - ; Model 533: 011273 - ; Model 633: 017040 - ; Models 733 & 833: 001000 -

1шт.

3

3230146R1

TUBE

SPARE PART control valve II, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 433: 010271 - ; Model 533: 011273 - ; Model 633: 017040 - ; Models 733 & 833: 001000 -

1шт.

3

3216457R1

TUBE

control valve I, for models 433, 533, 633

1шт.

Chassis Serial Number: Model 433: - 010270; Model 533: - 011272; Model 633: - 017039

1шт.

3

3216458R1

TUBE

control valve II, for models 433, 533, 633

1шт.

Chassis Serial Number: Model 433: - 010270; Model 533: - 011272; Model 633: - 017039

1шт.

4

3230147R1

TUBE

SPARE PART control valve I, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 433: 010271 - ; Model 533: 011273 - ; Model 633: 017040 - ; Models 733 & 833: 001000 -

1шт.

4

3230148R1

TUBE

control valve II, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 433: 010271 - ; Model 533: 011273 - ; Model 633: 017040 - ; Models 733 & 833: 001000 -

1шт.

4

3216459R1

TUBE

control valve I, for models 433, 533, 633

1шт.

Chassis Serial Number: Model 433: - 010270; Model 533: - 011272; Model 633: - 017039

1шт.

4

3216460R1

TUBE

control valve II, additionally used for double acting valves, for models 433, 533, 633

1шт.

Chassis Serial Number: Model 433: - 010270; Model 533: - 011272; Model 633: - 017039

1шт.

5

3058147R91

COUPLING, BREAK AWAY

ASSY., for models 433, 533, 633, 733, 833

1шт.

6

3138441R1

O-RING

for models 433, 533, 633, 733, 833

1шт.

7

3138442R1

RING

back-up, for models 433, 533, 633, 733, 833

1шт.

8

3059127R1

UNION

for models 433, 533, 633, 733, 833

1шт.

9

3059128R1

CAP

for models 433, 533, 633, 733, 833

1шт.

10

3141597R91

COUPLING

ASSY. "Arelco", for models 433, 533, 633, 733, 833

1шт.

10

3141598R91

COUPLING

ASSY. "Eljika", optional, for models 433, 533, 633, 733, 833

1шт.

11

3134962R1

PLUG

CAP, for models 433, 533, 633, 733, 833

1шт.

12

3216456R1

BAIL

BAR, for models 433, 533, 633, 733, 833

1шт.

13

786929R2

BRACKET

for models 433, 533, 633, 733, 833

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

for models 433, 533, 633, 733, 833

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

for models 433, 533, 633, 733, 833

1шт.

103321

LOCK WASHER,3/8"

For models 433, 533, 633, 733, 833

1шт.

102635

NUT,3/8"-16, G5

For models 433, 533, 633, 733, 833

1шт.

14

20285H

WASHER

10 x 19 x 3 mm, for models 433, 533, 633, 733, 833

1шт.

50793H

WASHER

10 x 22 x 3 mm, for models 433, 533, 633, 733, 833

1шт.

Выбрано товаров: 34
