Запчасти Case IH 433 (8-538) - DOUBLE ACTING CONTROL VALVE (08) - HYDRAULICS

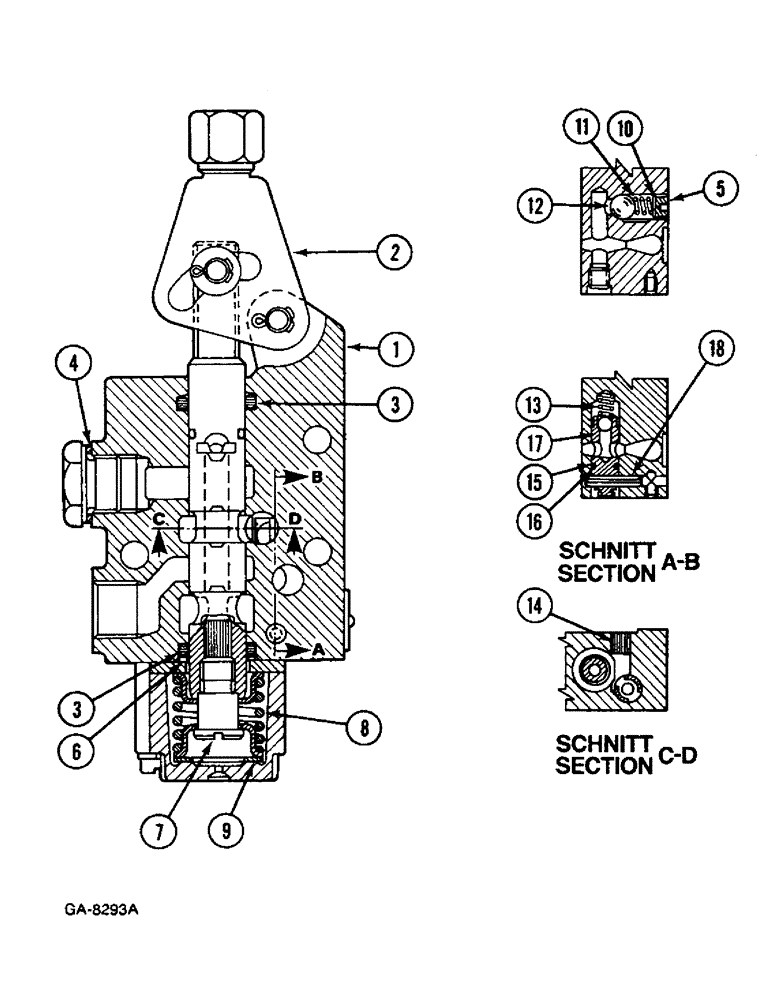

Схема запчастей Case IH 433 - (8-538) - DOUBLE ACTING CONTROL VALVE (08) - HYDRAULICS
4
7
3
12
14
10
1
11
8
5
3
17
15
6
16
2
18
13
9

Артикул

Название

Примечание

Количество

1

3059907R91

VALVE

ASSY., with Ref. 1 - 18

1шт.

3225027R91

GASKET KIT

PACKAGE, seals, set of 3

1шт.

2

3078447R91

LEVER

ASSY.

1шт.

3

RING sealing

2шт.

4

RING sealing

1шт.

5

PLUG

1шт.

6

WASHER

1шт.

7

3078431R1

BOLT

1шт.

8

3225765R1

SPRING

1шт.

9

3078434R1

WASHER

1шт.

10

END

1шт.

11

SPRING

1шт.

12

BALL

1шт.

13

3078439R1

SPRING

1шт.

14

PLUG

1шт.

15

RING sealing

1шт.

16

RING back-up

1шт.

17

PISTON

1шт.

18

PIN roll

1шт.

3225761R91

SEAL KIT

PACKAGE repair, consists of Ref. 3, 4, 6, 14, 15, 16

1шт.

3225762R91

SEAL KIT

PACKAGE repair, consists of Ref. 3 - 6

1шт.

3225763R91

PACKAGE, REPAIR

PACKAGE repair, consists of Ref. 5, 10, 11, 12

1шт.

3225764R91

PISTON

PACKAGE repair, consists of Ref. 3, 15 - 18

1шт.

Выбрано товаров: 23
