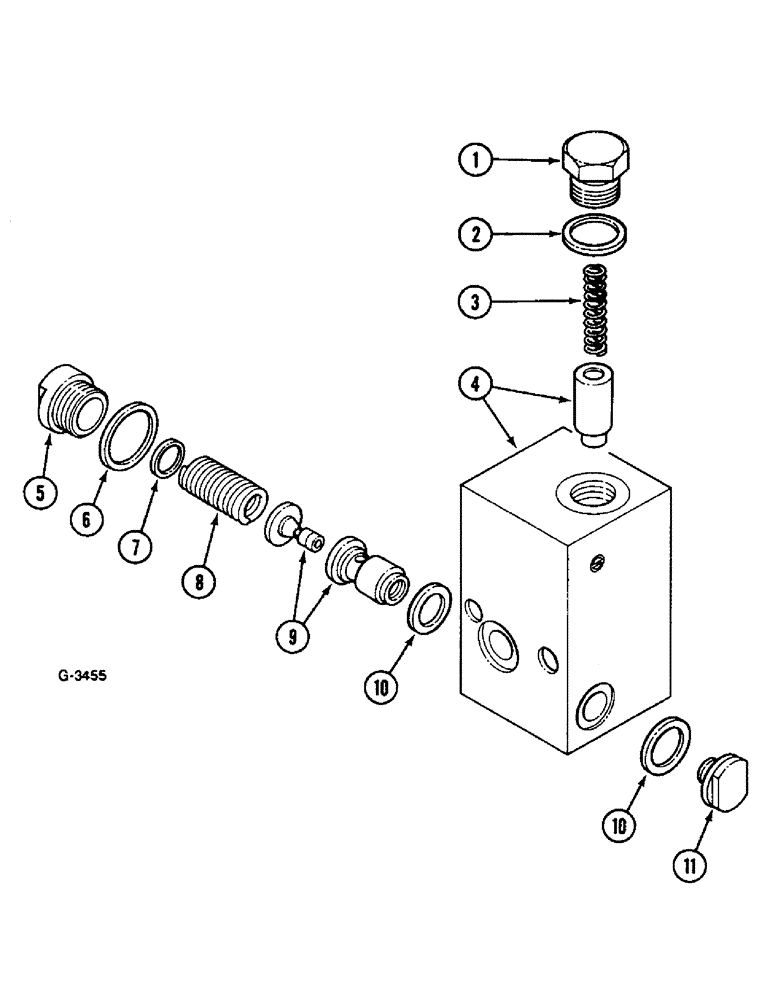

Запчасти Case IH 433 (8-536) - MOUNTING BLOCK (08) - HYDRAULICS

3134342R91

VALVE

ASSY., consists of Ref. 1 - 11, for models 433, 533, 633, 733

1шт.

1

3055831R1

PLUG

SPARE PART for models 433, 533, 633, 733

1шт.

3225769R91

SEAL KIT

PACKAGE, consists of Ref. 2, 6, 10, for models 433, 533, 633, 733, 833

1шт.

2

933721R1

SEALING RING,M16 x 22 x 1.5

WASHER, for models 433, 533, 633, 733

1шт.

3

3055827R1

SPRING

for models 433, 533, 633, 733

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK, order 3134342R91, for models 433, 533, 633, 733

1шт.

5

3055826R1

SPARE PART

1шт.

6

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

for models 433, 533, 633, 733, 833

1шт.

7

3055824R1

WASHER

SHIM, 0.3 mm, for models 433, 533, 633, 733, 833

1шт.

7

3055825R1

WASHER

SHIM, 0.7 mm, for models 433, 533, 633, 733, 833

1шт.

8

3055823R1

SPRING

for models 433, 533, 633, 733, 833

1шт.

9

3055819R91

VALVE

for models 433, 533, 633, 733, 833

1шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

For models 433, 533, 633, 733, 833

2шт.

11

3055769R91

PLUG, for models 433, 533, 633, 733, 833

1шт.
