Запчасти Case IH 433 (8-520) - DRAFT CONTROL VALVE (08) - HYDRAULICS

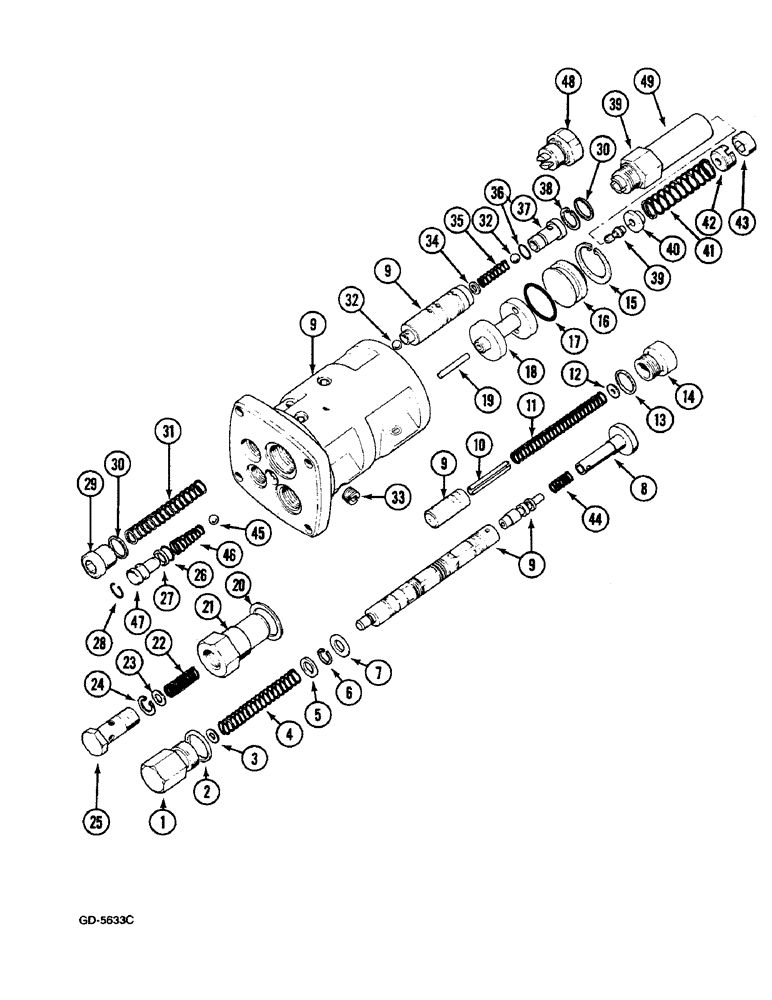

Схема запчастей Case IH 433 - (8-520) - DRAFT CONTROL VALVE (08) - HYDRAULICS
16
36
33
3
23
32
2
41
48
32
20
7
43
24
26
17
4
30
13
27
10
25
9
30
11
9
35
39
14
46
47
31
12
49
19
45
40
38
9
28
5
8
6
44
21
34
42
39
37
29
9
22
15
18
1

Артикул

Название

Примечание

Количество

3145178R92

VALVE, CONTROL

1шт.

932625R1

LOCK PIN,M3 x 8, Slotted

1шт.

1

PLUG

1шт.

2

RING, packaging

1шт.

3

SHIM

1шт.

4

SPRING

1шт.

5

WASHER

1шт.

6

RING

1шт.

7

WASHER

1шт.

8

TAPPET

1шт.

932349R1

LOCK PIN,M2.5 x 14, Slotted

1шт.

932266R1

LOCK PIN,M4 x 14, Slotted

1шт.

9

HOUSING, not serviced separately, order 3145178R92

1шт.

10

PIN, roll

1шт.

11

SPRING

1шт.

12

SHIM

1шт.

13

RING, packing

1шт.

14

PLUG

1шт.

15

RING, retaining

1шт.

16

RETAINER

1шт.

17

O-RING

1шт.

18

PISTON

1шт.

19

PIN

1шт.

20

RING, packing

1шт.

21

BLOCK

1шт.

22

SPRING

1шт.

23

3053125R1

SHIM

1шт.

24

RING, retaining

1шт.

25

SCREW, hollow

1шт.

26

O-RING

1шт.

27

RING, back-up

1шт.

28

RING, retaining

1шт.

29

PLUG

1шт.

30

RING, packing

2шт.

31

3147493R1

VALVE SPRING

1шт.

32

BALL

2шт.

33

NOZZLE

1шт.

34

SHIM

1шт.

35

SPRING

1шт.

36

3142195R2

O-RING

1шт.

37

BODY

1шт.

38

RING, retaining

1шт.

39

3134338R92

VALVE, PRESSURE RELI

EF with Ref. 40, 41, 42, 43, 44, 49, if so equipped

1шт.

40

3136928R1

BUSHING

1шт.

41

3142175R1

SPRING

1шт.

42

3136929R1

PLUG

1шт.

43

3059465R1

NUT

SPARE PART

1шт.

44

SPRING

1шт.

45

BALL

1шт.

46

SPRING

1шт.

47

PIN

1шт.

48

PLUG

1шт.

49

3136927R1

PLUG

1шт.

3225058R91

PACKAGE

repair, consists of Ref. 10, 11, 12, 14, 29, 33

1шт.

3225059R91

PACKAGE, REPAIR

consists of Ref. 15, 16, 18, 19

1шт.

3225060R91

PACKAGE

repair, oversize, consists of Ref. 15, 16, 18, 19

1шт.

3225061R91

PACKAGE

repair, consists of Ref. 1, 3 - 8, 44

1шт.

3225062R91

PACKAGE

repair, consists of Ref. 26, 27, 28, 45, 46, 47

1шт.

3225063R91

VALVE, CHECK

PACKAGE, repair, consists of Ref, 21 - 24

1шт.

3225064R91

PACKAGE, REPAIR

gaskets, consists of Ref, 2, 13, 17, 20, 25, 30

1шт.

Выбрано товаров: 60
