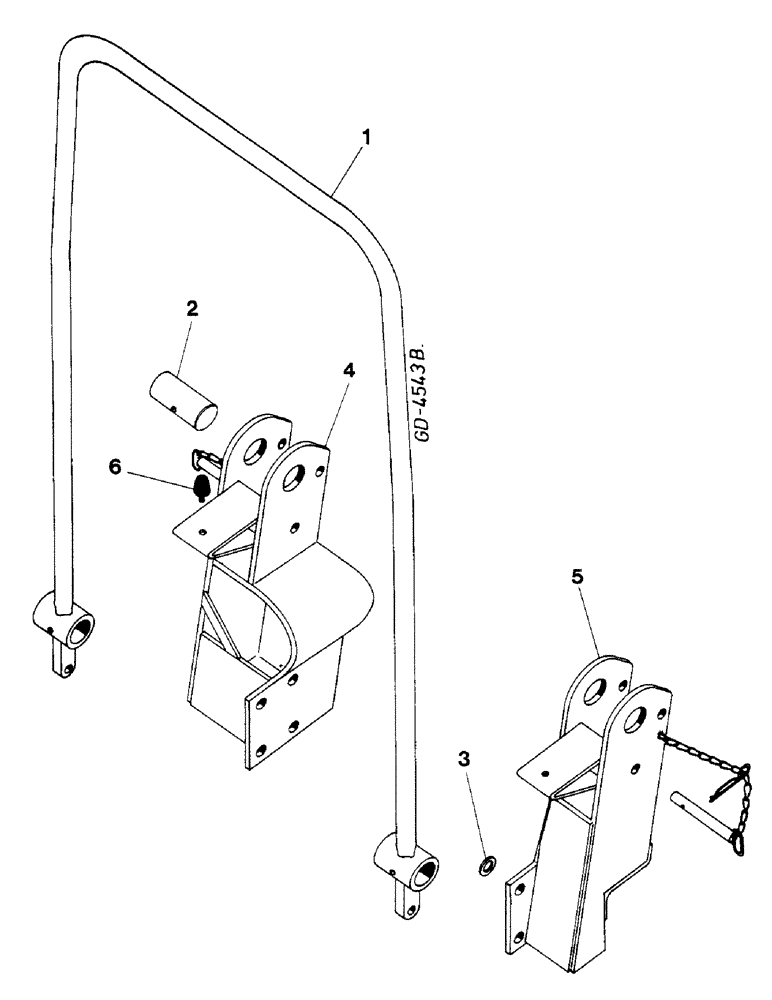

Запчасти Case IH 433 (13-22) - SAFETY FRAME - 433/533/633 (05) - SUPERSTRUCTURE

1

3146067R92

FRAME, UPPER

1шт.

2

3146071R1

PIN

SPARE PART SUPPORT

2шт.

Q2936

LOCK PIN,M8 x 50, Slotted

Sleeve

2шт.

3

130998

WASHER,9/16"

4шт.

4

3146076R92

BRACKET, SUPPORT RH

1шт.

5

3146085R91

BRACKET

SPARE PART SUPPORT LH

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

BOLT, 5/8" X 51 MM

6шт.

492-11062

BEARING WASHER,5/8"

6шт.

6

715022R1

BUMPER

STOP, RUBBER

2шт.

19297R1

SPARE PART LOCK 6 MM

2шт.

832-10406

NUT,M6 x 1, Cl 8

2шт.
