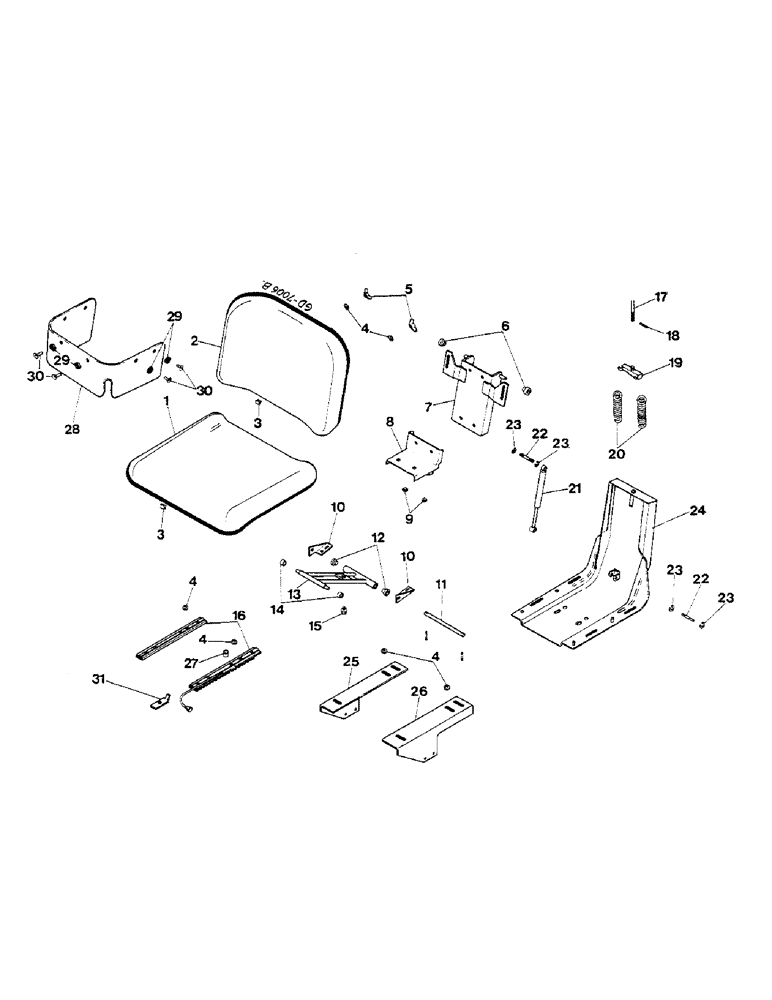

Запчасти Case IH 433 (13-15) - SEAT "GRAMMER" - 3220383R93 (05) - SUPERSTRUCTURE

3220383R93

SEAT ASSY.

CONSISTS OF: ITEMS 1-26, UNIT I

1шт.

3229747R91

SEAT ASSY.

CONSISTS OF: ITEMS 1-31, UNIT II

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

120320

PLATE

SPARE PART WASHER, LOCK 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

1

3223640R1

CUSHION

SEAT - UNIT I

1шт.

1

3229752R1

CUSHION

SPARE PART SEAT - UNIT II

1шт.

934676R1

LOCK WASHER,M8

2шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

2

3223639R1

BACKREST

CUSHION, BACK

1шт.

3

827368C1

CLIP

1шт.

4

934675R1

WASHER,M8 x 16 x 1.6

12шт.

5

934900R1

WING NUT

WING

2шт.

6

3217347R1

ROLLER

GUIDE

2шт.

7

3223633R1

GUIDE

SPARE PART CUSHION BACK

1шт.

8

3223634R1

HOLDER

SPARE PART SEAT

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

BOLT, M8 X 20 MM

2шт.

934676R1

LOCK WASHER,M8

2шт.

9

3223486R1

BUMPER

RUBBER

2шт.

3223480R1

RIVET

4.8 X 15 MM

2шт.

10

3223630R1

BRACKET

SPARE PART RH

1шт.

10

3223631R1

BRACKET

SPARE PART LH

1шт.

934880R1

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

2шт.

934676R1

LOCK WASHER,M8

2шт.

11

3223627R1

PIN

SPARE PART ROCKER

1шт.

934898R1

LOCK PIN,M4 x 24, Slotted

2шт.

12

3134834R1

BUSHING

2шт.

13

3223635R1

GUIDE

SPARE PART SEAT

1шт.

14

3223641R1

BUSHING

2шт.

15

3134835R1

BUMPER

1шт.

16

3223642R91

GUIDE

SLIDING (SET, LH + RH)

1шт.

16

3226279R1

GUIDE

SLIDING, LH

1шт.

16

3217423R1

RAIL

GUIDE, SLIDING, RH

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

BOLT, M8 X 16 MM

4шт.

905293R1

SCREW,Slotted Cheese, M8 x 1.25 x 25mm, Cl 8.8

BOLT, M8 X 25 MM

1шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

4шт.

43362

NUT,M8 x 1.25, Cl 10

4шт.

17

3226280R1

ADJUSTER

SCREW, WITH HANDLE

1шт.

18

934896R1

COTTER PIN,M3.2 x 20

1шт.

19

3225386R1

RETAINER

SUSPENSION SPRING

1шт.

20

3217415R1

SPRING

2шт.

21

3223629R1

SHOCK ABSORBER

DAMPER

1шт.

22

3217344R1

PIN

2шт.

23

934901R1

E-RING,M10

WASHER, RETAINING

4шт.

24

3223628R1

CARRIER

SPARE PART SEAT

1шт.

25

3223638R1

SUPPORT

RH

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

BOLT, M8 X 20 MM

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

3шт.

43362

NUT,M8 x 1.25, Cl 10

3шт.

26

3223637R1

SUPPORT

SPARE PART LH

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

BOLT, M8 X 20 MM

3шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

3шт.

43362

NUT,M8 x 1.25, Cl 10

3шт.

27

3217418R1

SPACER

SPARE PART UNIT II -

1шт.

28

3229751R1

SHIELD

SPARE PART RUBBER - UNIT II

1шт.

29

905177R1

WASHER,M4.3 x 12 x 1

UNIT II

6шт.

30

3223632R1

RIVET

UNIT II

6шт.

31

3229753R1

SUPPORT

SPARE PART UNIT II

1шт.
